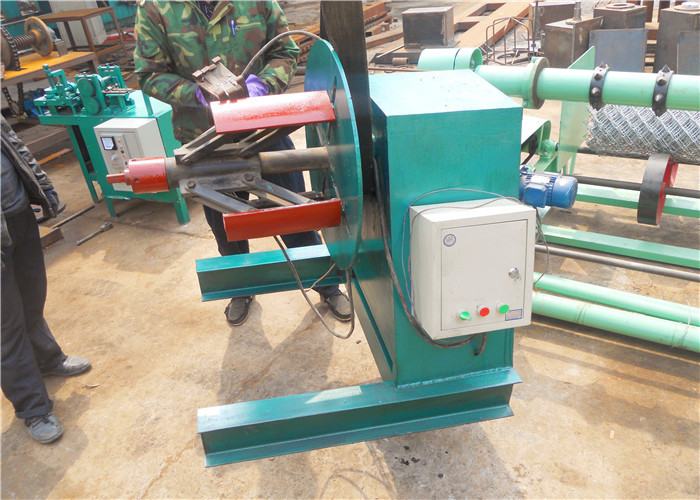

5 Strips Razor Barbed Wire Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ005 DZ009 DZ011 DZ021
Minimum Order Quantity 1set
Price variable
Packaging Details unde
Delivery Time 20-30 days
Payment Terms T/T, D/P, L/C
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Printed Punching PLC Control
Colour As Required Type BTO-10 BTO-22 CBT-6
Speed 100times Strock/min Engineer Engineer Door To Door
High Light

5 Strips Razor Barbed Wire Machine

,

75times/min Razor Barbed Wire Machine

,

75times/min Razor Wire Making Machine

Leave a Message
Product Description

5 strips razor barbed wire punching machine fully automatic





razor wire machine



Razor barbed wire machine,is specially used to manufacture razor barbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punching razor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is used as coiling the wire into the razor strip to form the finished razor wire.The mould decide the razor length ,width the space.



Punching machine



punching Plate thickness 0.3-0.6mm
punching Plate width 99-145mm
punching Production speed 60-75times/min
Motor power 2.2KW
Rated voltage 380V 50HZ
Weight 1.9T
Overall dimension 1325*990*2140mm



Coiling machine

Voltage 380V, 50Hz,or client’s required voltage
Power 1.5kw
Producing speed 80Kg/h
Wire diameter 2.5mm
Weight 300Kg
Dimension

1100mm×750mm×1200mm



Mould type

Mould type Barb Length Barb width Barb spacing
R1 12±1mm 13±1mm 26±1mm
R2 12±1mm 15±1mm 26±1mm
R3 18±1mm 15±1mm 33±1mm
R4 22±1mm 15±1mm 34±1mm
R5 28±1mm 15±1mm 34±1mm
R6 30±1mm 18±1mm 34±1mm
R7 60±1mm 32±1mm 96±1mm
R8 65±1mm 21±1mm 100±1mm



5 Strips Razor Barbed Wire Machine 0
