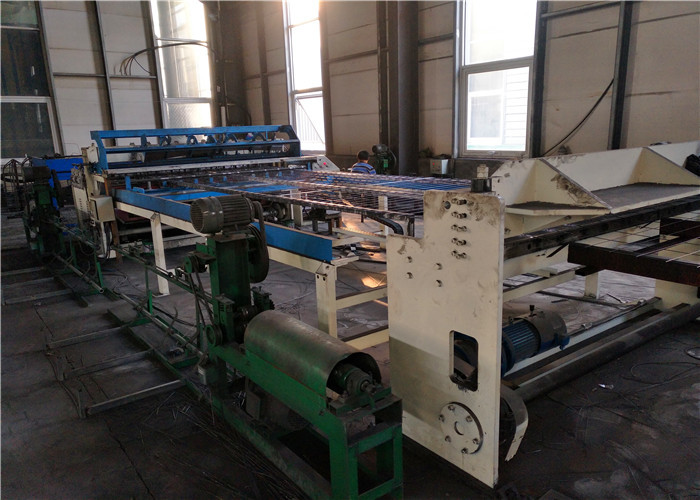

Multi Spot Welded Wire Mesh Machine For High Level Construction CE Certificated
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1500 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Welding | Control | PLC Automatic |
|---|---|---|---|
| Line Wire Feeding | From Coil | Cross Wire Feeding | From Coil |
| Product Name | Welded Wire Mesh Machine | Engineer | Available To Service Machinery Overseas |
| High Light | welding wire machine,wire mesh roll welding machine |
||
Product Description
fully automatic feeding wire multi spot wire mesh welding machine
machine details:
| Technical items | DZ2500 |
| Wire diameter | 6-12mm |
| Cross wire space | 100-300mm |
| Line wire space | 50-200mm |
| Number of electrodes | 26 |
| Max. mesh width | 2600mm |
| Mesh length | 3-12m |
| Electricity capacity | 150kva*13 |
| Welding speed | 30-50 times/min |
| Weight | 7 ton |
| Overall dimension | 24*6.0*2.65m |
| Cross wire form | Pre-cut wire |
| Line wire form | Pre-cut wire |
| Welding transformer | With water cooling system |
| Welding pressure power | pneumatic pressure |
DZ machine advantages:
1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.
4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.
5. Step motor controls fallen cross structure and drawing materials are automatic.
6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.
7. Drawing mesh adopts the device with the elastic link and fixing the mesh.
8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.
9. The finished mesh could be in rolls or in panels.
after sales service:
a. material of the machine we all buy from the China biggest steel factory
b, welding process we all use modern and high efficiency machine
c, cutting process we all make sure the size exactly and minimum error
d, collection process we all use assembly line works
e, paint and surface workers all have rich experiences
f, motor of machine we use first-class China strand
g, every machine we will offer spares freely, these spares can be enough for using one year
h, if machine broken during worker and in the guarantee time, we will offer spares freely
i, we will offer the guarantee time 2 or 3 years , this is double or three time of other factories
j, 24 hours online , 10 years after sales service make business easy
k, 5 people machine design and improvement team, make sure your machine is the most advanced and the most automated
l, the customer return visit every 3 years enable us to continuously improve the machine use experience and after-sales service quality
