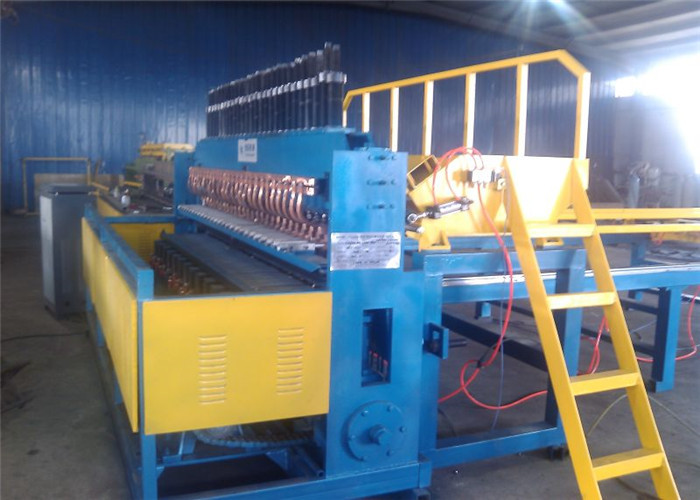

High Strength Fence Mesh Welding Machine 4200kg 75times/min For Railway / Highway

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1500 DZ1500 Z2000 DZ2500
Minimum Order Quantity 1set
Price variable
Packaging Details nude
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Automatic
Line Wire Feeding Pre-cut Cross Wire Feeding Pre-cut And Falling Auto
Stranded CE ISO9001 Motor Servo Motor
Highlight

75times/min Fence Mesh Welding Machine

,

4200kg Fence Mesh Welding Machine

,

75times/min Automatic Wire Mesh Machine

Leave a Message
Product Description

China manufacture wire mesh welding sheet machines 3 - 6 mm





Our company’s mesh welding machines have the following advantages:

  1. Main machine frame is welded with thick steel plates and section steel, which make the main structure more well-set and compact.
  2. The cross wire feeding (falling) device is originative with falling cross wire driven by step motor, which structure is compact and more reasonable.

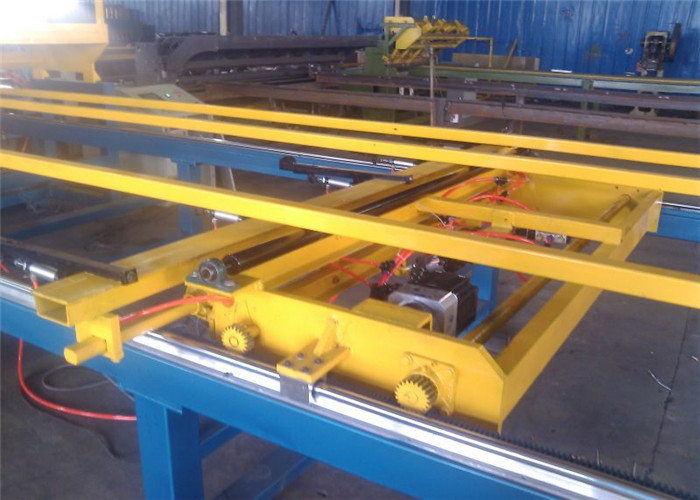

  3. Mesh pulling device adopts the Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
  4. It can weld diverse mesh opening size and make the mesh with varied specifications, because all the relative adjustment parts are adjustable, which is very flexible and convenient for the user.
  5. The welding device takes new type of transformer with high efficiency. It has 24 different adjustable voltage grades, which enlarge the welding adjusting range and the weldable wire size range..
  6. In order to adapt to the power transformer capacity and reduce the current impact, the power electronic welding control adopt the way of welding in one time but electricity input in several separate control, that is (i.e.), the welding transformers work in separate when welding one row of cross wire.
  7. The welding power electronic control system adopts synchronous control technique. The welding time and welding in separate control are composed of digital integrated circuit, which is with high precision of control and stable function.





If you have special requirements about the package of the machine, please specify it when placing the order.

In the process of the transportation, please pay attention to the following items:

  1. machine transportation and storage
  1. Prevent the machine from strong bumping or dropping. Otherwise, some parts on the machine may be damaged, especially the precise instrument, meter, electric control device or other precise mechanical parts.
  2. Please keep the machine waterproof, rain-resistant, antidamp
  3. The machine should be placed in even and stable and fixed in the container well in case of the movement or misplacement.
  1. STORAGE

This product shouldn’t be put in the open air and should be put in the room that is dry and free of blast and erosive gas, and no strong concussion. The reserve period shouldn’t exceed half a year.



Model DZ-250B
Wire diameter 2.5-6mm
Longitude wire space 50-300mm
Cross wire space Min.25mm/12.7mm
Mesh width/height Max.2.5m
Mesh length Max.6m
Welding electrodes 48pcs
Welding speed 50-75 times/min
Welding transformers 125kva*6pcs
Need air compressor 0.3m^3
Need power supply Min.160kva
Overall Size 5.4*3.2*1.7m
Weight

4200kg
