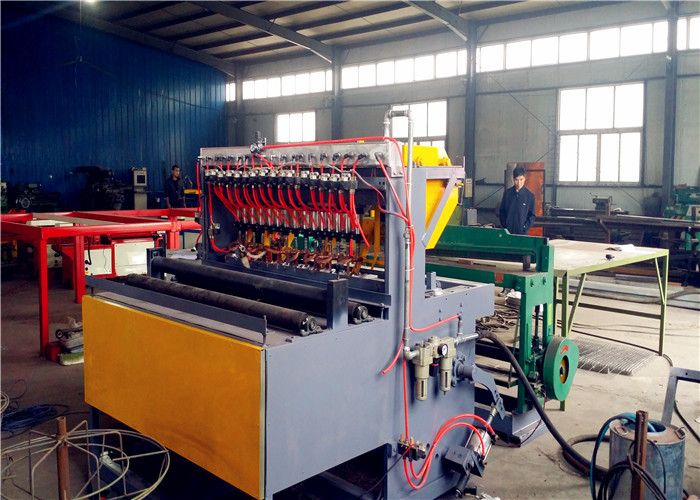

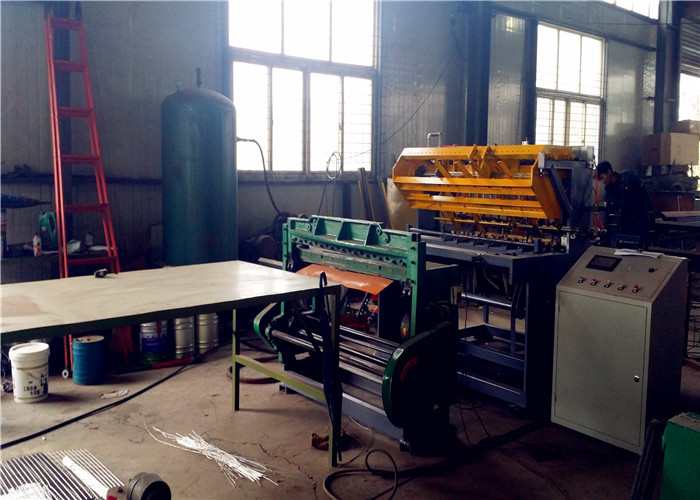

Auto Wire Mesh Welding Line 2500mm 45times/Min Accurate Operation
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1500 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wire Mesh Welding Line | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Automatic And Pneumatic | Line Wire Feeding | From Coil |
| Cross Wire Feeding | Pre-cut | Width Of Mesh | 2500mm |
| Highlight | 2500mm Wire Mesh Welding Line,45times/Min Wire Mesh Welding Line,45times/Min Steel Wire Mesh Machine |
||
Product Description
pneumatic control auto wire feed fence wire welding mesh machine line
machine details:
| Wire Diameter | 3-5mm | Width of Mesh | 2500mm |
| Longitude Wire Space | 50-200mm | Cross Wire Space | 50-200mm |
| Welding Electrodes | 41 pcs | Welding Speed | 45 times/min |
| Longitude Wire Feeding | From rolls | Cross Wire Feeding | Pre-straightened&pre-cut |
| Rated Electrical Power | 125kva*5 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
| Overall Size | 2.9*2.2*1.7m | Weight | 4500kg |
DZ machine advantages
1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.
2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.
3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.
4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.
5. Step motor controls fallen cross structure and drawing materials are automatic.
6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.
7. Drawing mesh adopts the device with the elastic link and fixing the mesh.
8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.
9. The finished mesh could be in rolls or in panels.
Why choose us?
1. Best machine quality
2. engineer aviable to abroad
3. Competitive price
4. Delivery on time
5. CE certificate
