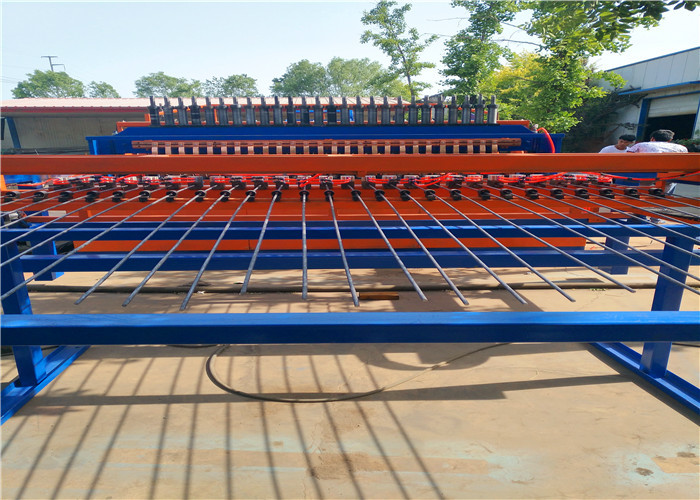

Reinforcing Mesh Welding Machine 5mm 12mm Wire Diameter

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Reinforcing Mesh Welding Machine Material Iron Wire, Galvanized Wire, Black Wire
Control PLC Automatic Line Wire Automatic
Cross Wire Feeding Pre-Cut Falling Automatic Engineer Available To Service Machinery Overseas
Highlight

12mm Reinforcing Mesh Welding Machine

,

5mm Reinforcing Mesh Welding Machine

,

5mm Fence Mesh Welding Machine

Leave a Message
Product Description

Fully-automatic reinforcing 5 - 12 mm welding fence machine PLC control feed automatic



Machine Details:



Model DZ-HWJ2500B DZ-HWJ2500A
Wire diameter 3-8mm 5-12mm
Welding width Max.2500mm Max.2500mm
Longitude wire space 100-300mm 100-300mm
Cross wire space Min.50mm Min.50mm
Mesh length Max.12000mm Max.12000mm
Wire feeding way Pre-straightened & pre-cut Pre-straightened & pre-cut
Welding speed 50-75 times/min 40-65times/min
Welding electrodes Max.24pcs Max.24pcs
Welding transformers 150kva*6pcs 150kva*12pcs
Machine size 8.4*3.4*1.6m 8.4*5.5*2.1m
Weight 5.2T 8.5T



Machine Advantage


Panasonic, Schneider, ABB, SMC, Igus electric components.
Touch screen interface.
Pre-straightened & pre-cut wires.
PLC control of cross wire space adjustment and welding current adjustment.
Panasonic servo motor for mesh pulling.

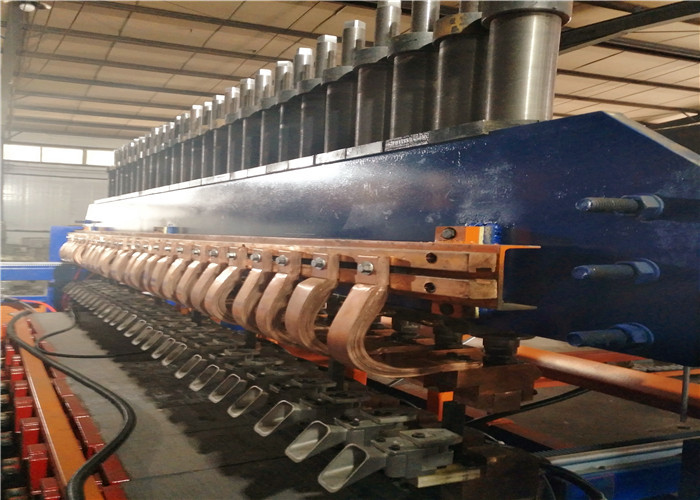

Pure welding electrodes, 30*30*30mm (3-8mm), 30*30*50mm (5-12mm).
Cooling system: cast water-cooling transformer and lower welding electrode base.
Brake motor & reducer connect the principal axis directly.
Wire pre-load system.



1. This machine adopts synchronous control technique. The center-control and welding time are composed of PLC.
2. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, welding repeatedly.
3. The longitude wires and cross wire distance can be adjustable by inputing the data what you want. The greatest advantage is that you can adjust the distance weft wire at random on the same piece of wire mesh sheet.
4. The finished product fence panel is smooth; the error of opposite angle line is small.



Reinforcing Mesh Welding Machine 5mm 12mm Wire Diameter 0
