Pneumatic Reinforced Rebar Mesh Welding Machine , Steel Bar Mesh Welding Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Automatic Prenmatic
Line Wire Pre-cut By Machine Cross Wire Feeding Pre-cut
Engineer Available To Service Machinery Overseas Product Name Reinforcing Mesh Welding Machine
Highlight

9.5T Rebar Mesh Welding Machine

,

50times/min Rebar Mesh Welding Machine

,

50times/min Steel Bar Mesh Welding Machine

Leave a Message
Product Description

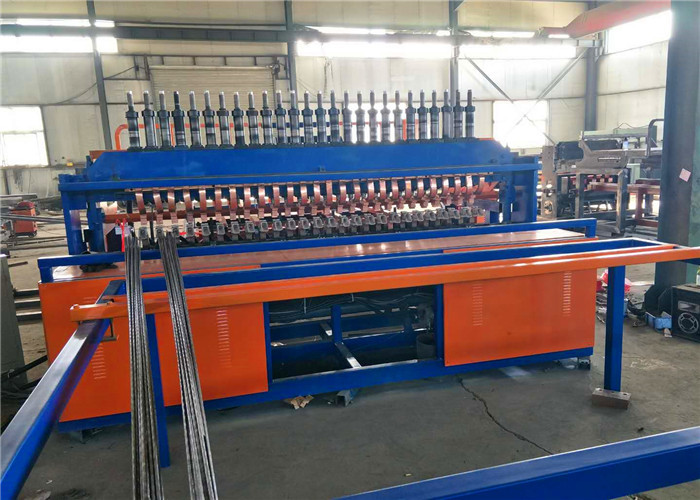

Pneumatic Reinforced Rebar Mesh Welding Machine



machine details:



Technical items Parameters Parameters
Wire diameter 5-12mm 5-12mm
Cross wire space 100--300mm 100-300mm
Line wire space 50--200mm 50-200mm
Number of electrodes 24 30
Max. mesh width 2500mm 3000mm
Mesh length 3000 -12000mm 3000-12000mm
Rated power 120kvax12 120kvax15
Welding speed 30-50 times/min 30-50 times/min
Weight 7.5t 9.5t
Overall dimension 24x6.0x2.65m 24x6.5x2.65m
Cross wire form pre-cut wire pre-cut wire
Line wire form pre-cut wire pre-cut wire
Welding transformer with water cooling system with water cooling system
Mesh pulling way Controlled by PLC Controlled by PLC
Cross wire feeding way Automatic falling ,one by one automatic falling,one by one
Material low carbon steel wire, galvanized wire or ribbed wire Low carbon steel wire, galvanized wire or ribbed wire



machine advantage
Panasonic, Schneider, ABB, SMC, Igus electric components.
Touch screen interface.
Pre-straightened & pre-cut wires.
PLC control of cross wire space adjustment and welding current adjustment.
Panasonic servo motor for mesh pulling.
Pure welding electrodes, 30*30*30mm (3-8mm), 30*30*50mm (5-12mm).
Cooling system: cast water-cooling transformer and lower welding electrode base.
Brake motor & reducer connect the principal axis directly.
Wire pre-load system.



After-sale service

1. If the buyers need, we can send our technical staff to the buyers factory to install the machine and providing the training in 30 days after the machines arrived the destination port

2. Maintenance period :3 year for whole machine except vulnerable parts

3. The numbers of technical persons:one technical per machine

4. The fees: the buyer have to pay the technical salary 100 USD per day, and the round-trip ticket, accommodation and other related fees.

During the maintenance period , if the parts are broken caused by the product problem, seller will offer the parts for free, if you need we assign the technicians to your factory, then you will pay some related fees.

5.transportation

If you have special requirements about the package of the machine, please specify it when placing the order.

In the process of the transportation, please pay attention to the following items:

  1. Prevent the machine from strong bumping or dropping. Otherwise, some parts on the machine may be damaged, especially the precise instrument, meter, electric control device or other precise mechanical parts.
  2. Please keep the machine waterproof, rain-resistant, antidamp
  3. The machine should be placed in even and stable and fixed in the container well in case of the movement or misplacement
  4. Storage

This product shouldn’t be put in the open air and should be put in the room that is dry and free of blast and erosive gas, and no strong concussion. The reserve period shouldn’t exceed half a year.
