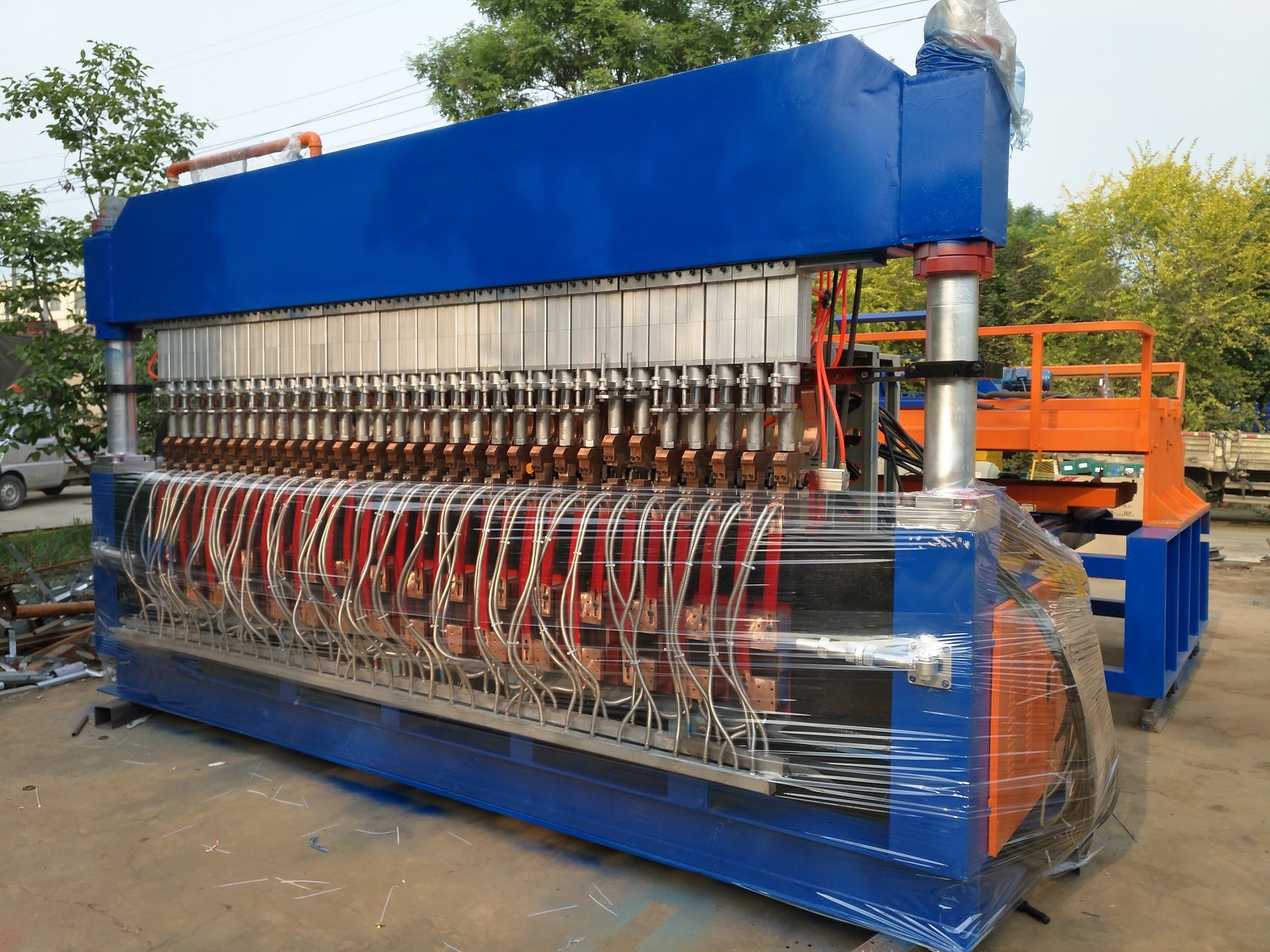

Automatic Reinforcing Mesh Welding Machine 2.5m 45times/Min

Automatic Reinforcing Mesh Welding Machine

Machine description

• This kind of line wire automatically feeding reinforcement mesh welding machine is 2 times faster than traditional type
• Line wire was inserted into line wire automatic feeding device and device ran automatically.So it improved output capacity
• Cross wire was put on the hopper
• Ladder for place cross wire
• Automatic mesh falling and mesh pulling system optional
• The price includes one set of wire straightening and cutting machine

• Line wire automatic feeding device,improve output
• Servo motor mesh pulling car,more precise and
• Control buttons to satisfy different needs
• PLC control(Japan),Delixi electric components,other China first brand electrics
• Line wire tunnel guarantee the wire straightened
• Adopt world advanced design concept
• Welding electrodes using chrome copper,long life
• Water-cooling transformer

main machine working progress as below:

1. Control system Panasonic PLC automatic control system, combined with Weinview touch screen, can directly input and display equipment operating parameters, intelligent and easy to operate.

2. Weft wire hopper: the stepper motor drives the disk-type device to automatically drop wires, and the hopper has a large capacity of storing wires max up to 1.5 tons. When there is no wire in the hopper, the equipment will automatically stop running.

3. Diameter wire feeding mechanism: Mitsubishi servo motor is equipped with planetary reducer to drive pneumatic compression wire feeding device to send diameter wire to the welding position. The equipment is automatically welded.

4. Mesh pulling mechanism: Mitsubishi servo motor supporting planetary reducer drives pneumatic clamping mesh pulling device to ensure the stability of the system and the standard size of the welded mesh.Automatic reciprocating mesh drawing can realize the production of lengthening size mesh.

5. Water-cooled welding electrodes and a new type of special transformer for water-cooled welding mesh with epoxy resin are adopted, which is smaller in size and higher in safety and reliability than traditional transformers.

6. Low-voltage electrical appliances are made of Schneider, Tianzheng, Mingwei and other well-known brands to ensure the efficient and stable operation of the equipment.

7. The reinforcing mesh welding machine will stop working automatically if there is no cross wires in hopper device.

8. When there is malfunction on the machine, the PLC will alarm, which is convenient to adjust the machine.

9. The cross wire space adjustment adopts PLC micro-computer control, set on the touch screen.

10. The mesh pulling system in cycle is automatically calculated, no need manual setting. The mesh pulling car can be back to origin automatically after finishing the pulling.

11. The reinforcing mesh welding machine is equipped with 13 PCS water cooled transformers. Each welding transformer is 165KVA.
