Ordinary Type 5-12 Mm Steel Bar Rabar Mesh Welding Machine High Performance

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ 2500
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Automatic
Line Wire Feeding Pre-cut Cross Wire Feeding Pre-cut
Product Name Welding Fence Machine Feeding Automatic
High Light

wire mesh welding machine

,

wire mesh spot welding machine

Leave a Message
Product Description

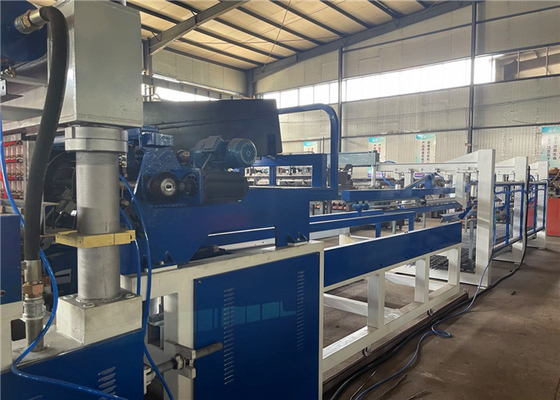

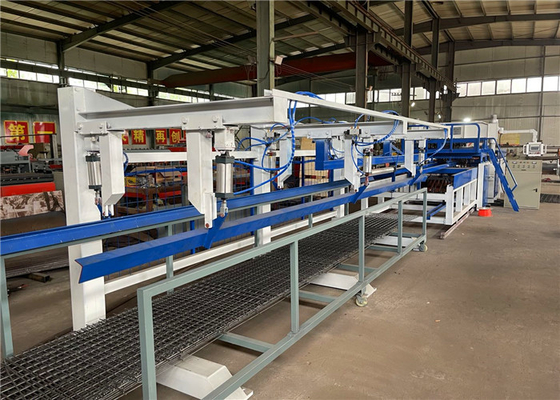

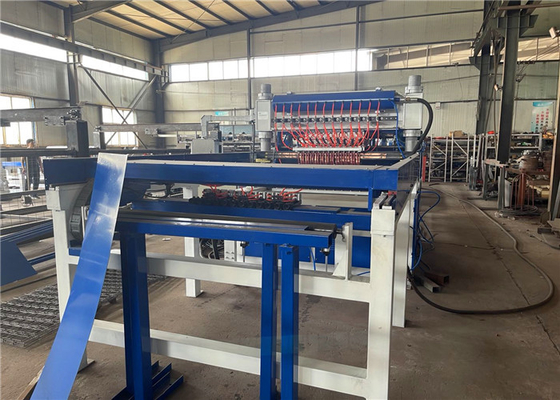

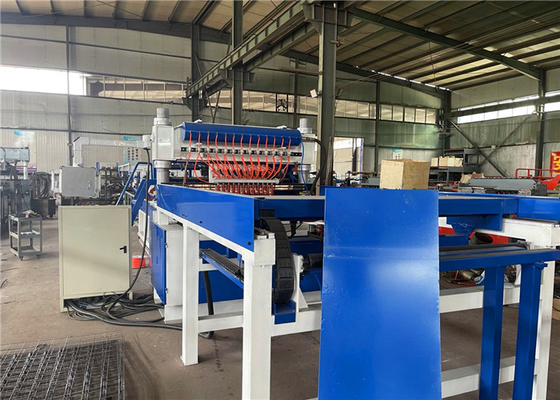

Full automatic wire mesh welding machine for construction fence



1.Main Machine:Compress tightly once time and welding separately,it could promise the welding firmness.It include welding machine part,mesh dragging part,and PLC control cabinet.

2.PLC Control system adopts programming technique from Mitsubishi of Japan,touch screen operating,Chinese-English display,easy operation.

3.Mesh pulling system adopts PLC programming system,servo motor controlling,higher precision,it could realize different mesh size.

4.Cross wire feeding system adopts store holder,mesh dropping aromatically,easy and convenient operation.

wire diameter 2.5-6mm Rated voltage 380v
welding aperture 50x50-300x300mm Rated power 125kvax6
welding width 2500mm Dimensions 6x3.2x1.8m
Line wire feeding Pre-cut Cross wire feeding Pre-cut
warp quantity 48 Machine weight 4.5T
welding speed 60 times/min Welding mesh length 6-12m



Factory price Semi-automatic Panel Fence Mesh Welding Machine ( DZ-300 with line wire and cross wire 3-8mm)

Semi-automatic Fencing Mesh Panel Welding Machine welds the line wires (in coil) and cross wires (pre-cut) to be mesh in the principle of multi-electrodes resistance welding.

The material can be low carbon round or ribbed steel wire or galvanized wire.
The finised products are mesh in panel.



A:The advantage of machine:

1. Strong materials

The main frame is made of thick steel plate and section bar, making the main structure more solid and compact.

2. Advanced technology

Welding power electronic synchronization control technology, so that the welding current, welding time, digital control integration, accuracy of millisecond level.

3. Automatic operation

Easy to operate . Have no experience, don’t worry. We will train your workers, with our training course, a new people will get professional in 3-5 days.

4. Superior components

The electric appliances and pneumatic components are all adopt famous brand from foreign countries. Servo motor, drive and PLC are Delta or Siemens brand, electrical apparatus element is Schneider brand.

5. Customizable

We can also customize the machine by your demand.



Machine feature:

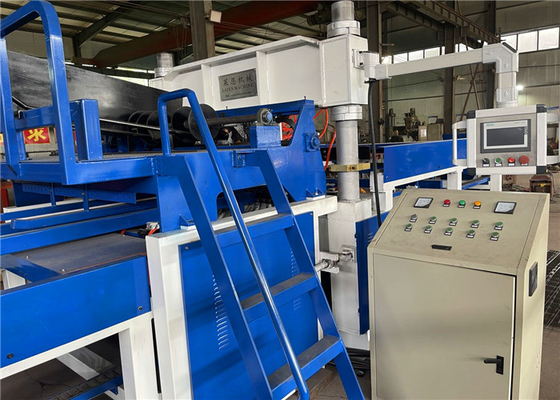

1. Controlled by computer, the welding current and welding time in each welding transformer can be individually adjusted. The machine operator interface with color touch screen and control buttons, easy to operate.

2. Host framework structure, stable performance, the welding pressure is continuously adjustable, solid and perfect welding spot.

3. Integrated deceleration electromagnetic brake motors for power, inverter control, adjustable speed.

4. Modular design for the upper and lower electrodes, convenient to adjust the mesh.

5. weft-hopper obtains wires by motor driver devices, electric magnetic increase feeding device auto-feeding the wefts into the preparation area of disc device from the large hopper, and the weft hopper is installed in the removable pull rid, convenient to adjust and maintain.

6. The mesh pulling part driven by servo motor can be set a variety of weft space in the same mesh, pull the mesh continuously back and forth to extend the size of mesh, and use pneumatic clamping device to accurate weft spacing.

7. The warp feeding part driven by stepper motor can be fed the warps which a whole mesh needs when welding, so that the machine is very short interval of time.

8. Automatic CNC steel mesh welding machine is equipped with a mesh roller frame and removable warp frame
