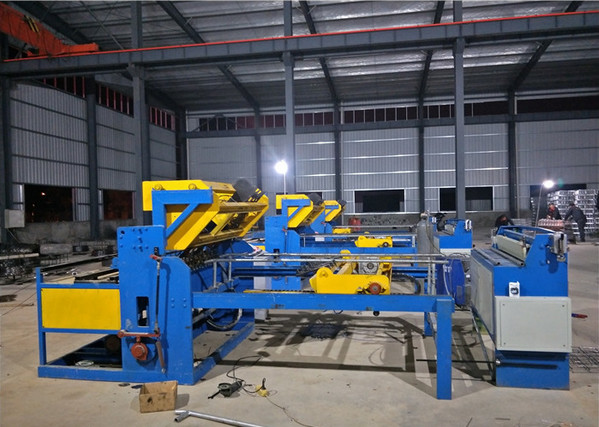

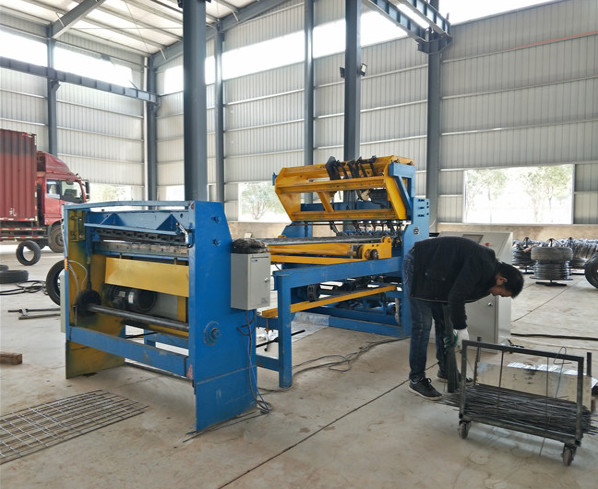

50times/Min Automatic Mesh Welding Machine 12mm CE Certification
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ2000 DZ2500 DZ3000 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Welding | Control | PLC Automatic |
|---|---|---|---|
| Line Wire Feeding | Pre-cut | Cross Wire Feeding | Pre-cut |
| Certification | CE | Engineer | Door To Door Services To Client's Factory |
| High Light | 50times/min Automatic Mesh Welding Machine,12mm Automatic Mesh Welding Machine,50times/min Wire Mesh Fencing Machine |
||
Product Description
Pneumatic Construction Reinforcing Mesh Plant For 5--12mm Rebar
1. Both of the warp wire and weft wire are pre-cut by wire straightening and cutting machine. And line wire will be placed by manual and feeding trolley, cross wire will falling automatically.
2. Servo motor control line wire automatic feeding system
3. The welding power comes from pneumatic, with the advantages of pressure is consistent, stable and easy to adjust.
4. Pulling mesh system uses servo motor, in this case the mesh size is adjustable and accurate.
5. The controlling system adopts Mitsubishi PLC, all the parameters are input by touch screen.
Specifications
| Technical items | DZ2500 |
| Wire diameter | 6-12mm |
| Cross wire space | 100-300mm |
| Line wire space | 50-200mm |
| Number of electrodes | 26 |
| Max. mesh width | 2600mm |
| Mesh length | 3-12m |
| Electricity capacity | 150kva*13 |
| Welding speed | 30-50 times/min |
| Weight | 7 ton |
| Overall dimension | 24*6.0*2.65m |
| Cross wire form | Pre-cut wire |
| Line wire form | Pre-cut wire |
| Welding transformer | With water cooling system |
| Welding pressure power | pneumatic pressure |
machine packing
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 20GP, 40GP or 40"HC for shipment
