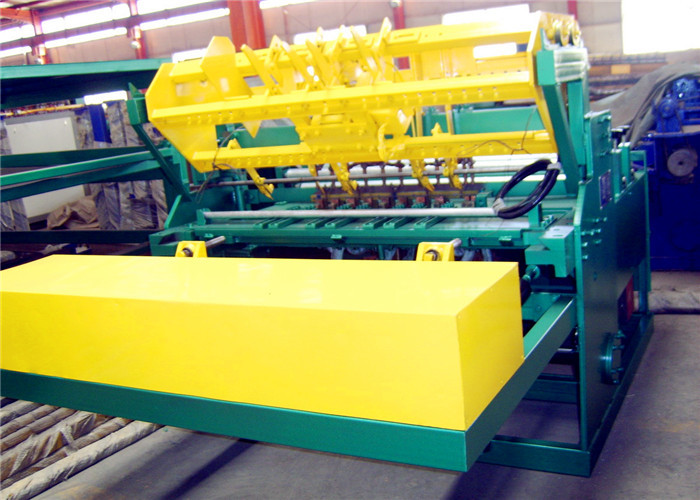

2500mm Steel Wire Mesh Roll Welding Machine 45 times/min Welding Speed
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1500 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wire Mesh Roll Welding Machine | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Automatic | Line Wire Feeding | From Coil |
| Cross Wire Feeding | From Coil Or Pre-cut | ||
| Highlight | 2500mm Wire Mesh Roll Welding Machine,45 times/min Wire Mesh Roll Welding Machine,45 times/min Steel Wire Mesh Welding Machine |
||
Product Description
2017 automatic wire feeding from coils welding mesh machine by rolls
machine details:
| Wire Diameter | 3-5mm | Width of Mesh | 2500mm |
| Longitude Wire Space | 50-200mm | Cross Wire Space | 50-200mm |
| Welding Electrodes | 41 pcs | Welding Speed | 45 times/min |
| Longitude Wire Feeding | From rolls | Cross Wire Feeding | Pre-straightened&pre-cut |
| Rated Electrical Power | 125kva*5 pcs | Rated Voltage | 3-phase,380V/220V/415V/440V 50Hz or 60Hz |
| Overall Size | 2.9*2.2*1.7m | Weight | 4500kg |
1.This kind machine is our latest developed reinforcing mesh welding machine. The line wire and the weft wire are pre-straight and pre-cut.
2.The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto. The welding power comes from the spring. It’s easy to control the welding pressure .
3.The weft wire feeding from the multi hopper which capacity is more over ten times than the traditional hopper. The new machine added the bear wire net and carry equipment that makes the working more convenience .
4.The welding part is used the springiness input wire trunking that makes the welding copper use for long time. This machine adopts synchronous control technique.
5.The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.
| Wire diameter | 3-8MM | Line wire form | pre-cut wire |
| Weft wire distance | Mini 50mm | Weft wire form | pre-cut wire |
| Line wire distance | 50-200mm | Rated voltage | 380V |
| Welding net width | 2500mm | Rated power | 125KVA X 6 |
| Welding speed | 60-80 times/min | Overall dimension | 24 X 6.0 X 2.65M |
| line wire No. | 48 | Length wire net | 6000mm |
