Construction Electric Welded Mesh Machine 75rows/min ISO9001 certified
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Steel Wire Mesh Welding Machine | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Fully Automatic | Wire Feed | From Coils |
| Finial Products | In Rolls | Wire Diameter | 0.4-0.65mm |
| High Light | 75Rows/Min Electric Welded Mesh Machine,Electric Welded Mesh Machine,75Rows/Min Construction Mesh Welding Machine |
||
Product Description

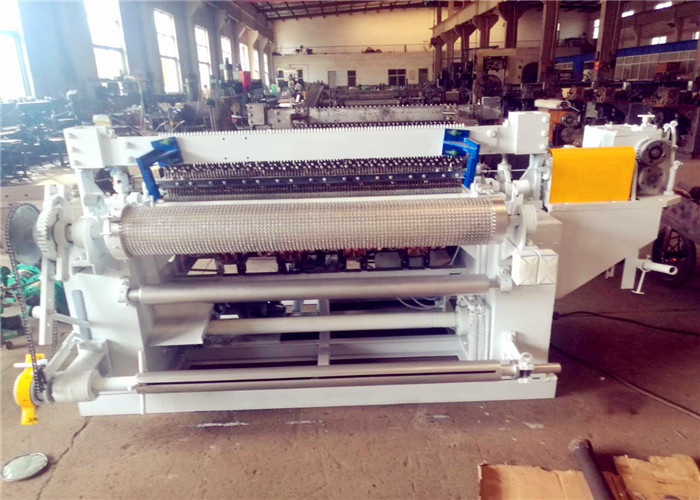

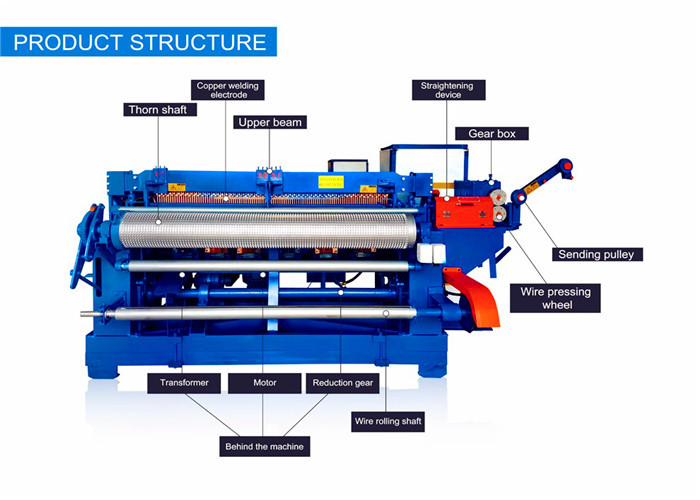

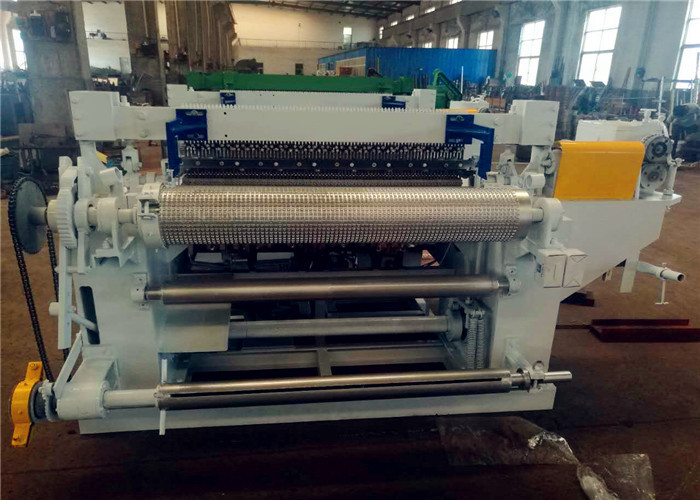

Fully automatic electrical welded wire mesh machines for constructions
advantage of the welded machine:
1. Both line wire &cross wire are feed from wire coils automatically
2. The raw material can be black wire , galvanized wire and SS wire ,wire diameter from 0.4-2.5mm
3. The mesh edge is regular cut by edge cutter ,the middle cutter can move freely to adjust the mesh width
4. You can set the length of mesh roll on the counter switch
5. The machine use 8 degree adjust degree transformer to weld different wire diameter steel
6. You can get 2 & 3 mesh roll at same time by add middle cutter
7. We use separate welding technology can decrease the current demand
machine details:
| Model | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.2/1.8mm | 1.0-2.2mm/2.5mm |
| Aperture/pitch | 1/4”-1/2” | 1/2”-4” | 1”-4” |
| Mesh width | 3 feet, 4feet | 4 feet, 5 feet | 4 feet, 5 feet, 6 feet, 7feet |
| Motor | 2.2kw | 2.2kw | 2.2kw;4.0kw |
| Welding speed | Max.75 rows/min | Max.120 rows/min | Max.80 rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
| Transformers | 50kva*3 | 60kva*4;60kva*5 | 60kva*4/5/6/7 |
