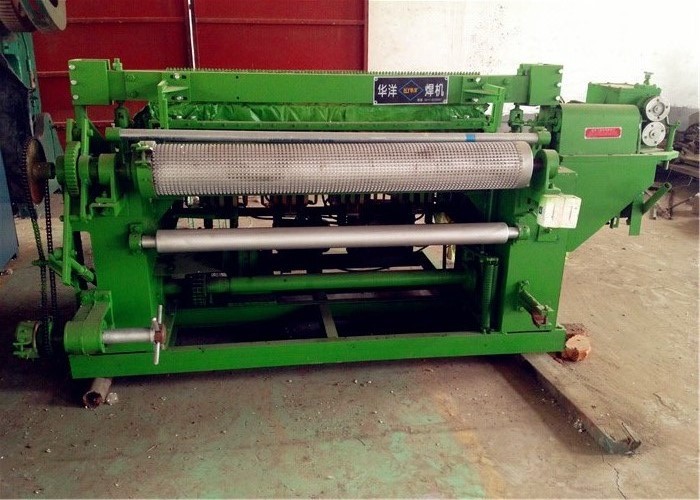

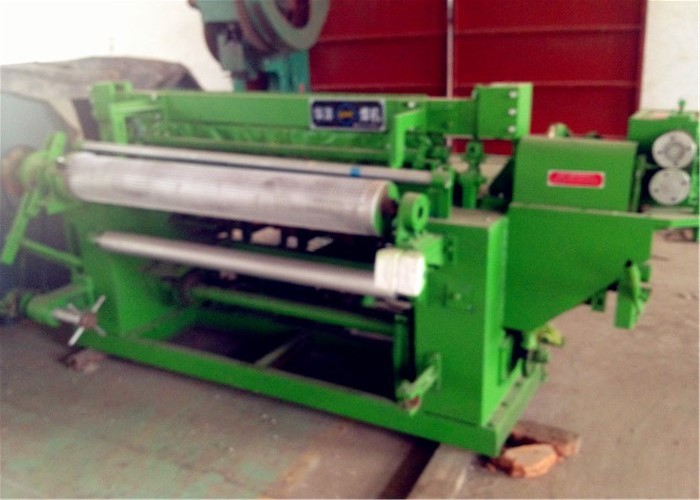

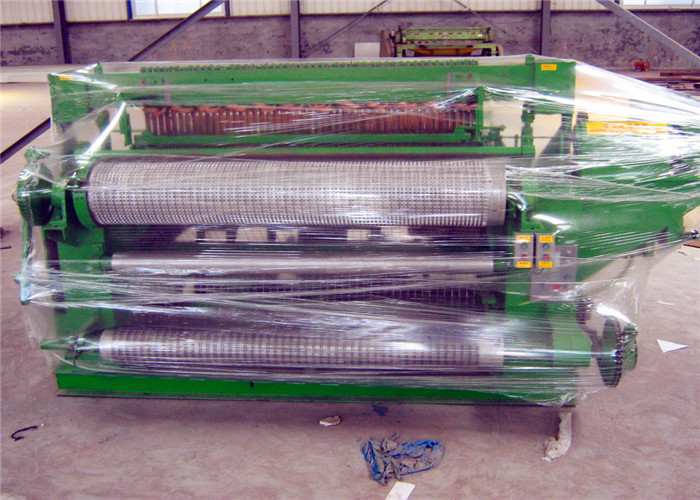

0.6mm 2.2mm Panel Mesh Welding Machine , Wire Mesh Roll Welding Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Mesh Panel Welding Machine | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Fully Automatic | Wire Feed | From Coils |
| Finial Products | In Rolls | Shipment | By Sea |
| High Light | 0.6mm Panel Mesh Welding Machine,2.2mm Panel Mesh Welding Machine,2.2mm Wire Mesh Roll Welding Machine |
||
Product Description
new developed electrical welded wire mesh machine in rolls and panels
Both of the longitude wire and cross wire are fed from wire coils automatically.
Suitable raw material for automatic electric welded mesh machine is black wire, galvanized wire or stainless steel wire.
The common hole size about electric welded mesh machine is 1/2’’, 1’’, 2’’, other mesh opening size such as 1/4’’, 1*1/2’’, 3’’, 4’’ are available.
Common wire diameter for electric mesh welding machine is range from 0.6mm to 2.2mm. But we can customize according to your request.
Advantage:
1. Raw materials can be galvanized wire, black wire and stainless steel wire.
2. Both longitude wire and weft wire can be fed from wire coils automatically.
3. The mesh length can be set on the counter.
4. The mesh width is equal to the length of weft wire.
5. The electric current, line and weft opening are adjustable.
6. It adopts Schneider low voltage apparatus.
7. It installs 8-level adjustable welding transformers to suit different wire diameters.
8. It has adjustable middle cutter to cut mesh in different size.
machine details
| Model | DZ-DNW-1 | DZ-DNW-2 | DZ-DNW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.2/1.8mm | 1.0-2.2mm/2.5mm |
| Aperture/pitch | 1/4”-1/2” | 1/2”-4” | 1”-4” |
| Mesh width | 3 feet, 4feet | 4 feet, 5 feet | 4 feet, 5 feet, 6 feet, 7feet |
| Motor | 2.2kw | 2.2kw | 2.2kw;4.0kw |
| Welding speed | Max.75 rows/min | Max.120 rows/min | Max.80 rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
| Transformers | 50kva*3 | 60kva*4;60kva*5 | 60kva*4/5/6/7 |
after sales services:
1. Maintenance period:one year
2. If the buyers need, we can send our technical staff to the buyers’ place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
3. The commissioning fees: free
4. The training fees: USD100/day for each technical
5. The numbers of technical persons: one technical person per machines at most
6. The fees ,such as round-trip tickets, accomodation etc, are all in buyers’ account. During the maintenance period: the parts damaged non-artificially will be provided free of charge. If you need the technicians, we will assign the expertised staff to your company. And the fees,such as round-trip tickets, accomodation etc, are all in your account. After the maintenance period: If you need the machine parts, we will provide it as our cost. If you need the technicians, we will assign the expertised staff to your company. And the fees, such as round-trip tickets, accomodation etc, are all in your account.
