DHW Mesh Panel Welding Machine Fully Automatic 0.65mm 2.5mm

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1200 DZ1500 Z2000 DZ2500
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Fully Automatic
Wire Feed From Coils Finial Products In Rolls
Highlight

DHW Mesh Panel Welding Machine

,

2.5mm Mesh Panel Welding Machine

,

0.65mm Mesh Panel Welding Machine

Leave a Message
Product Description

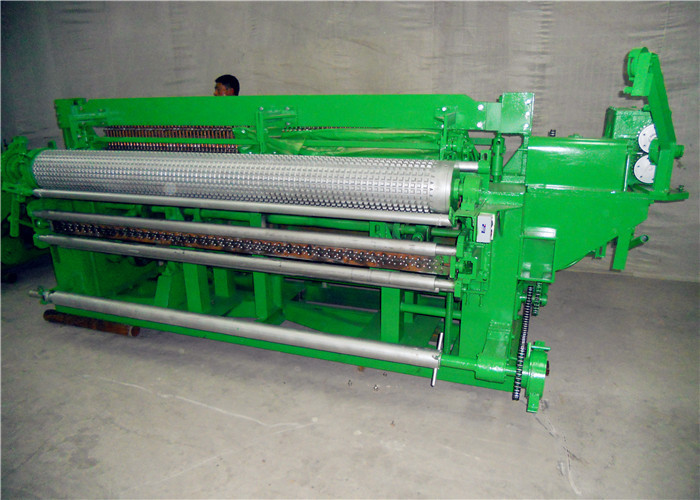

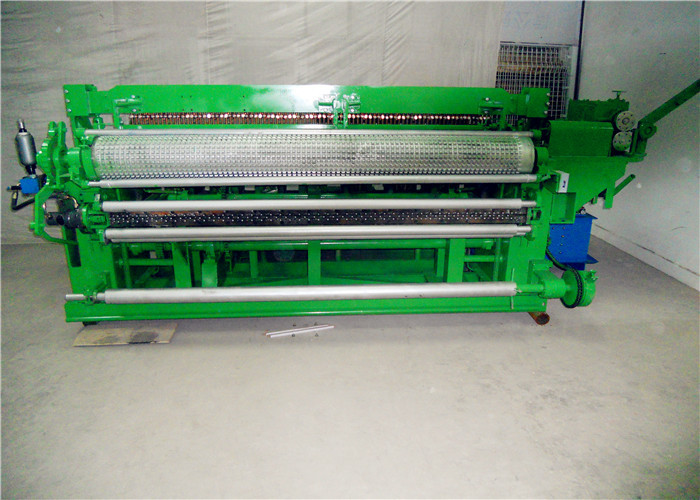

China supplier DHW series wire mesh welding in rolls in panels





machine details:

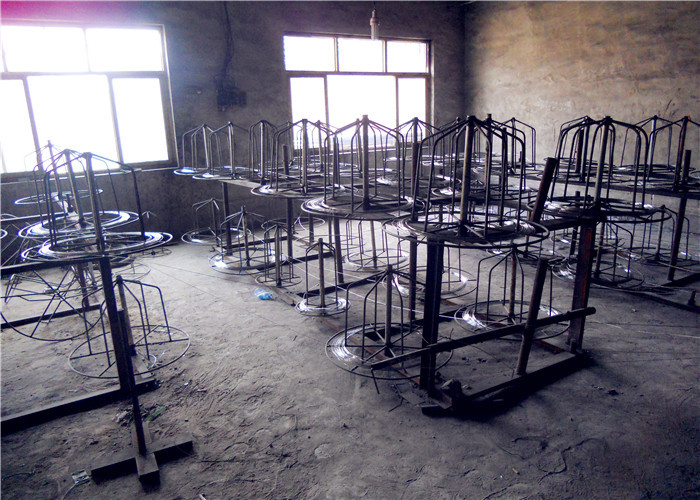

1. Both of the longitude wire and cross wire are fed from wire coils automatically.

2. The raw material is suitable for black wire, galvanized wire or stainless steel wire.

3. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.

4. The mesh roll length can be set by counter switch on the control panel.

5. The welding transformers have 8 degrees and can be adjusted for different wire diameters.

6. The welding time and welding current can be adjusted on the control panel to guarantee welding solid.

7. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.



model DZ-DHW-1 DZ-DHW-2 DZ-DHW-3
wire diameter 0.4-0.65mm 0.65-1.8/0.8-2.0mm 1.0-2.2mm/1.2-2.5mm
pitch/opening 1/4'' 1/2'' 1/2'' 1'' 2'' 3'' 4'' 1'' 2'' 3'' 4''
width of mesh 1200mm 1500mm 2000mm 1200mm 1500mm 2000mm 1200mm 1500mm 2000mm
motor 2.2kw 2.2kw 4.0kw 2.2kw 4.0kw
speed max 70-80 raws/min max 120-180 raws/min max 120-180 raws/min
transformer 50kvax3 60kvax4 60kvax5 60kvax7 70kvax4 60kvax5 60kvax7
weight 1.5tons 2tons 2.2tons 2.2tons, 2.5tons 3.5tons
