1500mm Wire Cage Welding Machine , Chicken Wire Mesh Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Minimum Order Quantity 1 SET
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 work days
Payment Terms L/C, T/T, D/P
Supply Ability 6-8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Diameter 3-6mm Width 1500mm
Warranty 12months Cross Wire Space 15-300mm
Color Can Be Made As Your Design Specification 1500mm
Automatic Degree Fully/Semi Auto Voltage 3phase
Line Wire Space 50-300mm
High Light

1500mm Wire Cage Welding Machine

,

6mm Wire Cage Welding Machine

,

1500mm Chicken Wire Mesh Machine

Leave a Message
Product Description

Chicken Cage Welded Wire Mesh Machine

We export our machines to different countries for 15 years. We manufacture and export wire mesh machines, such as welded wire mesh machine,welded wire mesh fence machine,reinforce welding machine,razor wire machine,barbed wire machine,expanded wire mesh machine,gabion mesh machine,crimped wire mesh ,grassland field fence machine,wire drawing machine,wire nail making machine,etc.



Name of Commodity Welded Wire Mesh Machine in Panel
Wire Diameter 3-6mm
Mesh Size 50-300mm
Width 1500mm
Power as per the model
Transformer as per the model
Overall Dimension as per the model
Weight 2950kg
Warranty 12 months
Oversea Service Support

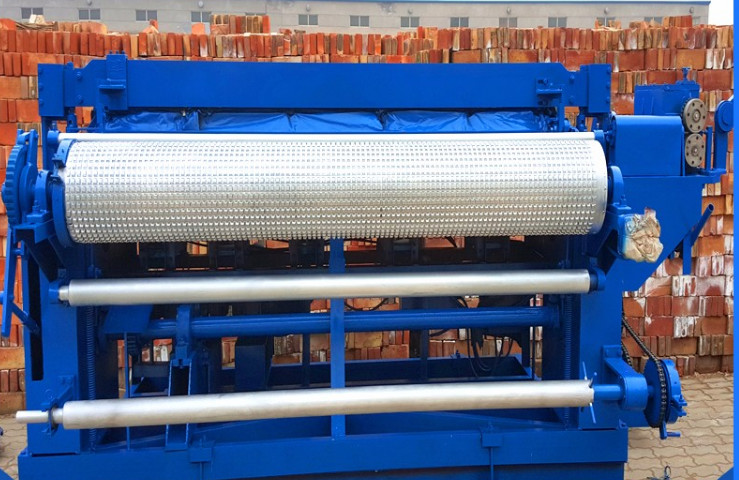

1500mm Wire Cage Welding Machine , Chicken Wire Mesh Machine 0


The Warranty

A. With one year guarantee, and the good after-sale service.
B. As per your special requirements which are also welcome to discuss.

Payment Terms:

A. 30% T/T in advance, 70% payable against the copy of the B/L
B. L/C is also acceptable
C. As per your special requirements which are also welcome to discuss.

The Advantages of Our Company:

A. More than 100 workers which can guarantee the progress of the making machine.
B. More than 14 years' experience which makes us be more professional in this field.
C. Competitive price, high quality and good after-sale service.
D. Near to Tianjin Xingang Port.

Welded Wire Mesh Machine
We can supply welded wire mesh machine for producing of welded wire mesh of a wide range of mesh counts and sizes.
Peculiarity: Box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh 1/2"-4".


Size of mesh (mm)

12.7-101.6 (1/2"-4")

Width (mm)

914.4-1219.2 ( 12"-48")

Diameter of wire (mm)

Dia.0.63-Dia.2 ( BWG23-BWG14)

Max. rolled net size (mm)

120 (400')

Welding speed ( mesh/minute)

65 ( radia)

Power

380/220V
50-60HZ
50KWAx4

Outside size(mm)

2600x1700x1350



Peculiarity: Big box-style support, high stability, lower noise, E-Machine in one, straighten & send wire automatically. Used for welded wire mesh of big width & wire dia.


Size of mesh (mm)

25.4-152.4 (1"-6")

Width (mm)

1219.2,1524,1828.8 (48", 60", 72")

Diameter of wire (mm)

Dia.1.07-Dia.2 ( BWG19-BWG14)

Max. rolled net size (mm)

91.4m (300')

Welding speed ( mesh/minute)

45 ( radia)

Power

380/220V;50-60HZ;50KWAx6

Outside size(mm)

3350x1800x1400


Peculiarity: Shuttle sending weft wire type, sending quicker, lower noise, more stable, save electricity. Used for welding net of wire diameter 0.45, diameter 1.07, mesh 1/4" -1/2".


Size of mesh (mm)

6.35-12.7 (1/4"-1/2")

Width (mm)

914.4-1219.2 (12"-48")

Diameter of wire (mm)

Dia.0.45-Dia.1.07 ( BWG25-BWG19)

Max. rolled net size (mm)

120m (400')

Welding speed ( mesh/minute)

75 ( radia)

Power

380/220V;50-60HZ;50KWAx4

Outside size(mm)

2350x1820x1700

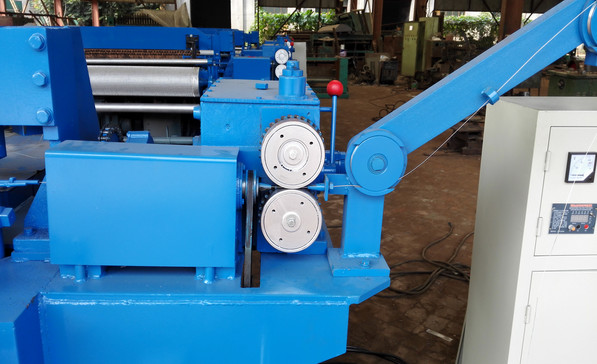

1500mm Wire Cage Welding Machine , Chicken Wire Mesh Machine 1

1. All the pneumatic components used are with world famous brand. For
European
customers, it is very easy to get the parts locally.

2. PLC controlled. Easy to set and control. It makes this machine more intelligent and reasonable.

3. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

4. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

5. The machine line automatic degree can be according to request. For the economical type, line wire and cross wire are pre strengthened and cut to length. We capable to produce fully automatic machine.
