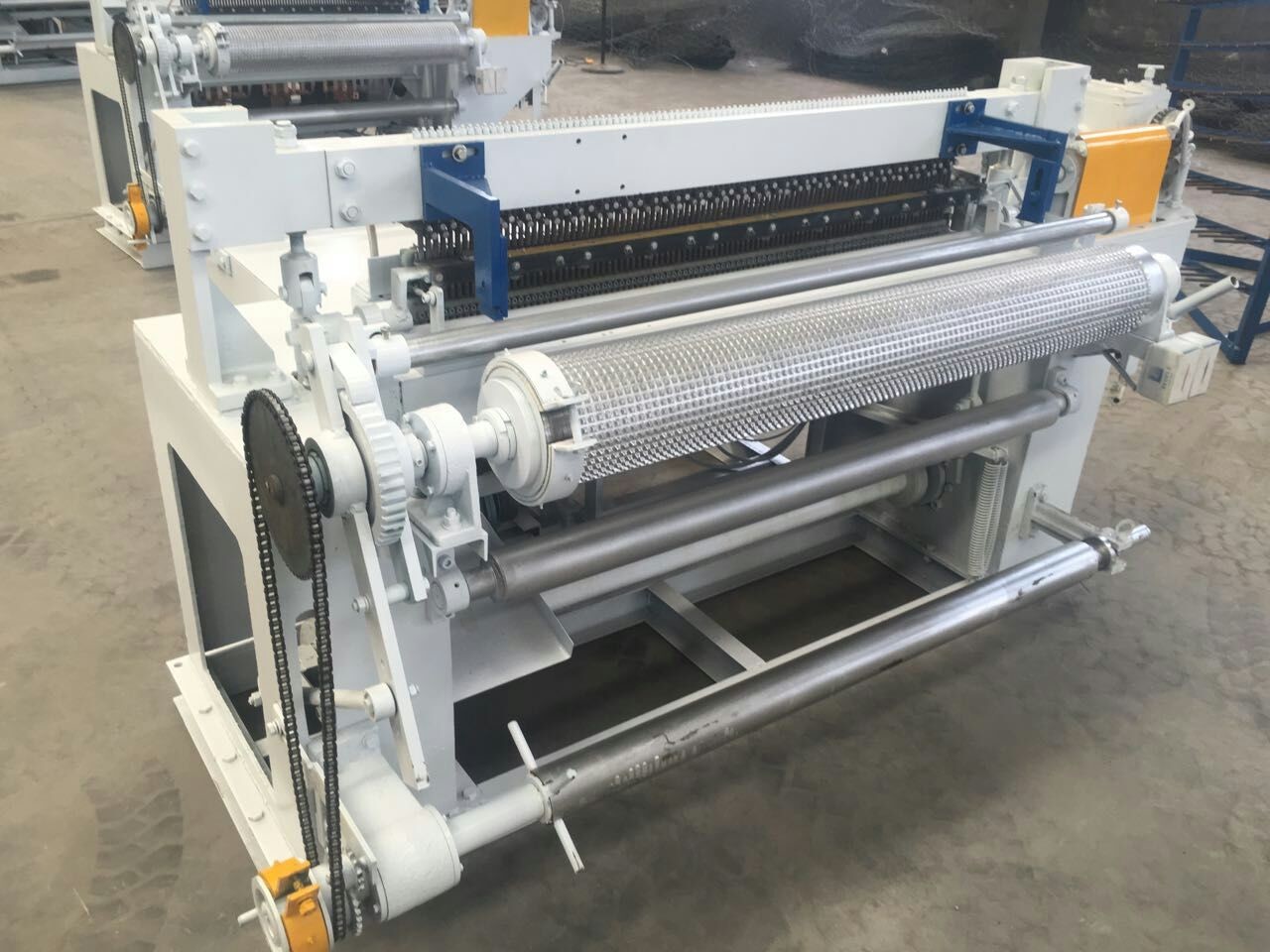

380V Welded Wire Mesh Machine 4feet High Speed Fence Welding Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1200 DZ1500 Z2000 DZ2500
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Galvanized Wire Ine Wire Feed From Coils
Finial Products In Rolls Cross Wire Feed From Coils
Guarantee 3 Years Control PLC Fully Automatic
Welding Transformer 3 Or 5 Engineer Can Go Abroad
High Light

380V Welded Wire Mesh Machine

,

4feet welded wire mesh machine

,

380V Fence Welding Machine

Leave a Message
Product Description



380V Or Customize Voltage High Speed Electric Welded Mesh Machine



Electric welded wire mesh machine adopts advanced power electronic synchronous control technology,which makes the welding current, welding time and control digital integration, and the precision reaches millisecond level; the new energy-saving and efficient transformer reduces the power load, improves the welding quality, and expands the wire diameter A special weft wire positioning device is adopted to make the stainless steel wire weld smoothly and accurately, the mesh is uniform, and the welding speed is fast; the new automatic wire feeding mechanism ensures smooth movement and accurate feeding length. In order to facilitate the welding length management and quality control, the machine uses electronic counting and net length CNC shutdown device. The machine has low noise, good stability and easy operation.



The welded wire mesh is made of high-quality low-carbon steel wire. It is formed by spot welding with automatic precision and accurate mechanical equipment. It is surface treated with zinc immersion technology. It is produced by conventional British standard. The mesh surface is smooth and tidy, the structure is firm and uniform, and the overall performance is good. There will be no looseness when it is cut or withstand pressure. It is the strong anti-corrosion performance of the entire iron screen, and it is also one of the most widely used types of iron screens.



machine details:



Model DNW-1 DNW-2 DNW-3
Wire diameter 0.4-0.65mm 0.65-1.2/1.8mm 1.0-2.2mm/2.5mm
Aperture/pitch 1/4”-1/2” 1/2”-4” 1”-4”
Mesh width 3 feet, 4feet 4 feet, 5 feet 4 feet, 5 feet, 6 feet, 7feet
Motor 2.2kw 2.2kw 2.2kw;4.0kw
Welding speed Max.75 rows/min Max.120 rows/min Max.80 rows/min
Measurement 2.3*1.3*1.4m 2.5/2.9*1.3*1.4m 2.5/2.9*1.3*1.4m
Weight 1.5T 2T, 2.5T 2T, 2.5T, 3T, 3.5T
Transformers 50kva*3 60kva*4;60kva*5 60kva*4/5/6/7
packing details

The main machine and auxiliary equipments will be with plastic package, spare parts in carton box.


The main machine will be fixed in the container by steel wire rope to make it stable.
