Hydraulic Control Gabion Wire Mesh Machine , Gabion Box Machine 80*100 Mesh

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Twist 3 Twist And 5 Twist Control Fully Automatic
Speed 20-30 Times/min Engineer Available To Service Machinery Overseas
Product Name Gabion Mesh Weaving Machine Wire Diameter Max 8mm
Width Max 5500mm Specification As Request
Highlight

gabion wire mesh machine

,

gabion box machine

Leave a Message
Product Description

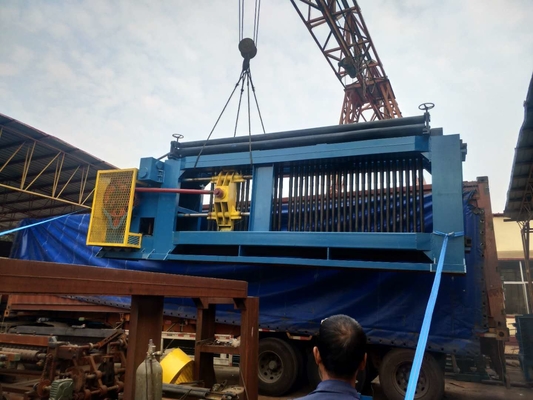

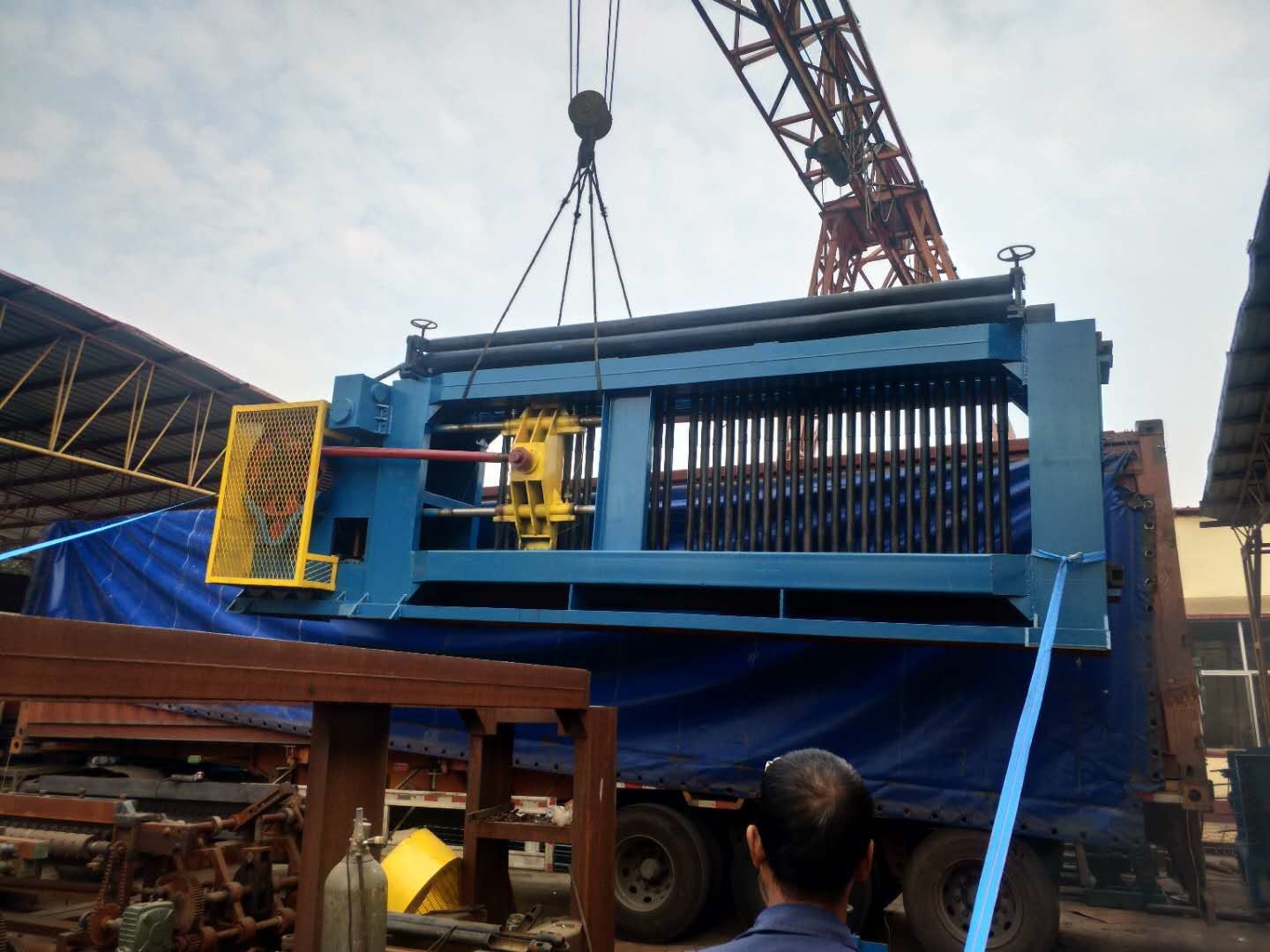

Hydraulic Control 80*100 Mesh Opening Type Diaozhuo Gabion Mesh Machine



The gabion mesh machine,another name is heavy-duty hexagonal wire netting machine,its use is to produce heavy duty hexagonal mesh,also named gabion baskets,you can choose to manufacture roll mesh or gabion boxes,gabion boxes are filled with the stones to discharge the flood,control and guide the river,protect rock avalanche for diversion dam,use to bridge protection and so on.Gabion baskets are ideal material to help this and are popular in the world.And they are widely used in the market,I believe choose this machine will help you make big money and earn a brighter future.



The gabion mesh equipment have many size,the smallest mesh width is 2300mm,other common size is 3300mm,4300mm,the max width we can be 5500mm.For the mesh opening,the specifications are 60*80,80*100,100*120,if special size,we can also make it.Usually it adopts double twisting model and the twisting mesh per minute is 25.



The gabion baskets can also be used to make stone cages, gabion mattress,sack gabion and so on,which are widely used to protect and support seawalls, hillsides, roads and bridges, reservoirs and other civil engineering projects.



Common specifications for reference:



Mesh Size Max. Width Wire Diameter

Twisted number



Main Drive Shaft Speed Motor Capacity Theoretical Speed
mm mm mm r/min KW m/h
60×80 2300 1.6-3.0 3

25



11



165
80×100 1.6-3.0 195
100×120 1.6-3.5 225
120×150 1.6-3.2 20 255
60×80 3300 1.6-2.8 25 15 165
80×100 1.6-3.0 195
100×120 1.6-3.2 225
120×150 1.6-3.5 20 255
60×80 4300 1.6-2.8 25 22 165
80×100 1.6-3.0 195
100×120 1.6-3.0 225
120×150 1.6-3.2 20 255
60×80 4300 1.6-2.8 5 25 22 165
80×100 1.6-3.0 195
100×120 1.6-3.0 225
120×150 1.6-3.2 20 255
