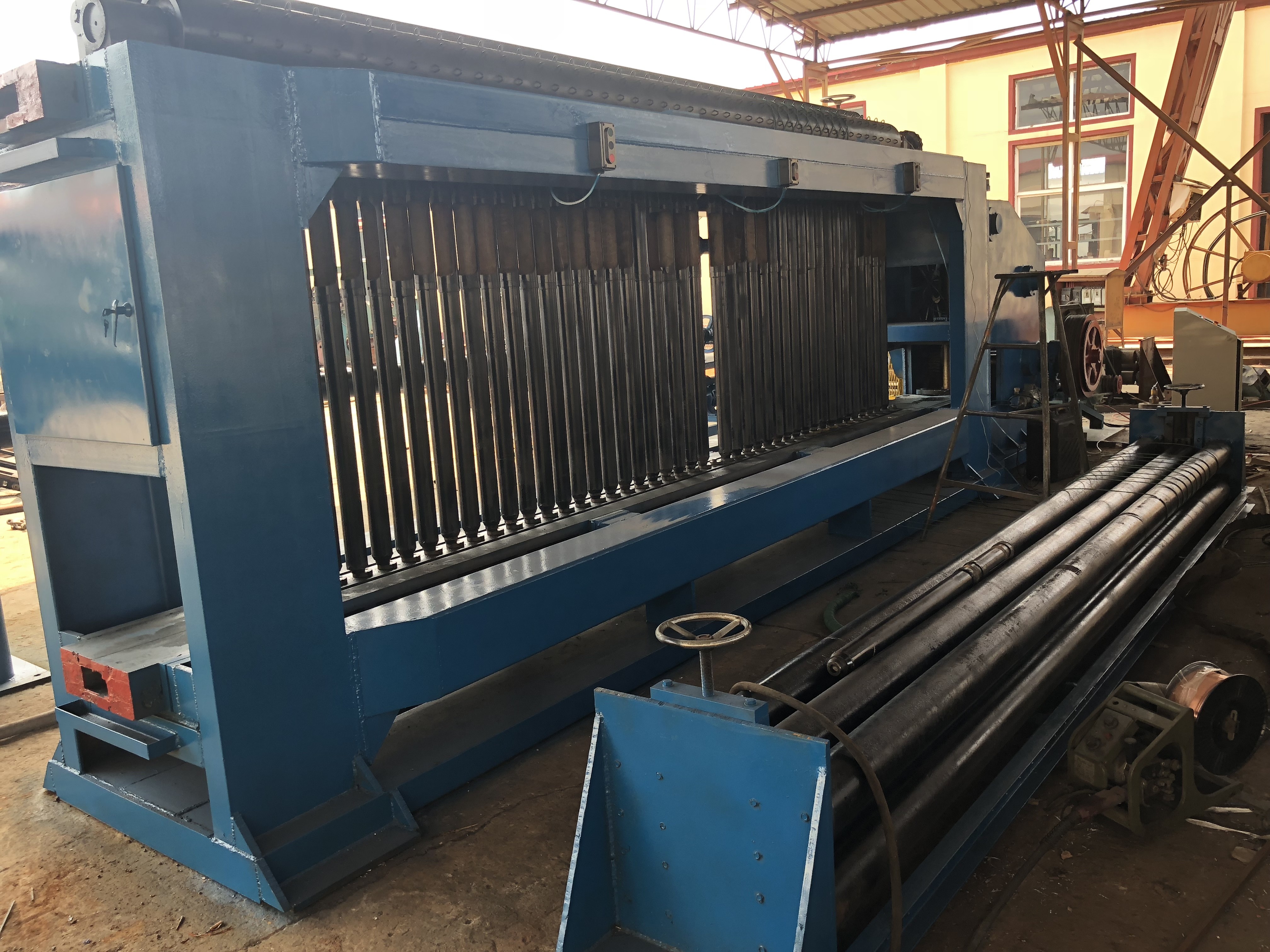

80*100 Hexagonal Wire Netting Machine , 4m Guest Net Machine
| Place of Origin | ANPING |
|---|---|
| Brand Name | diaozhuo |
| Certification | CE |
| Model Number | dz-1 |
| Minimum Order Quantity | 1 SET |
| Price | 40000USD |
| Packaging Details | IN CONTAINER |
| Delivery Time | 30 DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 1SET PER 30 DAYS |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| HOLE TYPE | 60*80 80*100 100*120 120*150 | WIRE DIAMETER | 1.6-3.2MM |
|---|---|---|---|
| LENGTH | 2.3-4.3M | TWISTING NUMBER | 3 OR 5 |
| Material | Kinds Of Wire,iron Wire, Gal. Wire, Hotdipped Wire | Colour | As Required |
| Highlight | 80*100 Hexagonal Wire Netting Machine,80*100 Guest Net Machine,4m Guest Net Machine |
||
Product Description
80*100 Automatic Hexagonal Gabion Netting Wire Mesh Machine Length 4m
Product description
1.Stone cage net machine is also called the hexagonal wire netting machine, guest net machine, hexagonal wire netting machine is the professional equipment production is hexagonal wire netting, raw material can be galvanized iron wire or PVC wire.
2. Stone cage net machine is the first choice of weaving large size, wide and thick wire hexagonal wire mesh. And it has characteristics of stable performance, low noise and high efficiency.
Advantages
1. New type double rack drive gabion mesh machine
2. High efficiency: theoretic output=4.25m/min
3. PLC control system touch screen(Option)
4. Infrared ray safety(Option)
5. Automatic stop system (Option)
6. Automatic oil system
7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.
gabion box application
gabion mesh machine technical parameters
| Mesh size | width | wire diameter |
spindle speed |
Iwist | power of motor |
Theoretic output |
| (mm) | mm) | mm) | (rlmin) | (kw) | (m/h) | |
| s0x80 | 2300 | .6-3.2 | 11 | 165 | ||
| 80X100 | .6-4.0 | 195 | ||||
| 100×120 | 1.6-4.0 | 225 | ||||
| 120×150 | 1.6-4.2 | 20 | 3 | 255 | ||
| 50x80 | 3300 | 1.6-3.2 | 15 | 165 | ||
| 80X100 | 6-4.0 | 195 | ||||
| 100×120. | 1.6-4.0 | 225 | ||||
| 120×150 | 1.6-4,2 | 2o | 255 | |||
| 50x80 | 4300 | 1.6-3.2 | 25 | 22 | 165 | |
| 80x100 | 1.6-4.0 | 195 | ||||
| 100×120 | 1.6-4.0 | 225 | ||||
| 120×150 | 1.6-4.2 | 2o | 255 | |||
| 30x80 | 1.6-3.2 | 25 | 165 | |||
| 80X100 | 1.6-4.0 | 195 | ||||
| 100×120 | 1.6-4.0 | 225 | ||||
| 120×150 | 1.6-4.2 | 20 | 255 |
