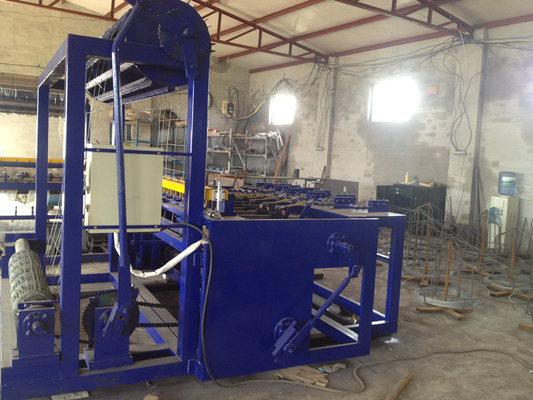

4kw Wire Mesh Weaving Machine 2400mm Grassland Fence Machine For Animal Fence
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Minimum Order Quantity | 1 SET |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 work days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 6-8 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wire Diameter | 1.9-2.5mm | Side Wire Diameter | 2-3mm |
|---|---|---|---|
| Main Line Wire Space | 75mm | Motor | 4kw |
| Mesh Width | 2400mm | Product Name | Most Popular Grassland Fence Machine Factory |
| Voltage | According To Clients′ Requirement | ||
| Highlight | 2400mm Wire Mesh Weaving Machine,4kw Wire Mesh Weaving Machine,2400mm Grassland Fence Machine |
||
Product Description
Automatic Grassland Fence Machine , Fence Knitting Machine For Animal Fence
The grassland fence machine is also called field fence machine,hinge joint fence machine or cattle fence machine, farm fence machine.This machine can produce grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.
| Model | HT-A | HT-B | HT-C | HT-D |
| Mesh width | 1427mm | 1880mm | 2000mm | 2400mm |
| Motor | 5.5kw | 7.5kw | 7.5kw | 11kw |
| Twine diameter | 1.9-2.5mm | 1.9-2.5mm | 1.9-2.5mm | 1.9-2.5mm |
| Side wire diameter | 2.0-3.5mm | 2.0-3.5mm | 2.0-3.5mm | 2.0-3.5mm |
| Voltage | 3 phase,380v,50Hz or according to client's voltage | |||
| Efficiency | ≤45 rows/min | ≤45 rows/min | ≤45 rows/min | ≤45 rows/min |
| Weight | 3.5T | 3.8T | 4.0T | 4.5T |
| Wrap number | 11 | 13 | 18 | 23 |
| Weft number | 10 | 12 | 17 | 22 |
2. Specification
Application: extensively used for preserving the environmental balance,
preventing landslide, and livestock fences.
Advantages
High-degree automation
Easy and safe operation
Can produce diverse specification of grassland fence.
Computer control and advanced manufacturing technique, good performance
| Grassland Fence Machine Features |
1. Special hole for line wire feeding, more flexible and tidy.
2. Straightening rollers for weft wires, finished weft wire more straightened,
3. Instead of groove rail, we adopt linear rail to push cross wire, less resistance, moving fast.
4. Cutter is made of hardened mold steel, HRC60-65, life is at least one year.
5. Pneumatic turning weft wire, more swift and flexible, to ensure high working speed.
6. Twisted head is made of hardened mold steel, HRC28, life is at least one year.
7. Weft wire distance can be adjustable 50-500mm with the special device.
8. Grid counter to record weaving roll length.
9. Mesh roller is easy to discharge and install.
10. Instead of electro-magnetic motor, we adopt frequency-variable motor controlled by inverter, adjustable working speed, saving 30%energy.
11. We adopt China top brand reducer, no oil leaking, life is at least 5 years.
12. Special sensor to detect cross wire feeding, if wire used up, the machine stops automatically.
7. Complete Service
Our engineers are available to install and maintain machine overseas.
Warranty period: 12 months (but no longer than 18 months)
OEM support.
Fast delivery.
Door to Door service or 24-hour email service.
8. Related Machine
Mesh welding machine series:
Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.
Mesh weaving machine series:
Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.
