2.5mm Razor Barbed Wire Machine 220m/H Producing Speed
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ500 DZ900 DZ2100 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engineer | Available To Service Machinery Overseas | Blade Type | BTO-10,BTO-12,BTO-18,BTO-22,CBT-65 |
|---|---|---|---|
| Sheet Thickness | 0.3-0.6mm | Wire Diameter | 2.0-2.5mm |
| 1/5/9 Or Other | 1/5/9 Or More | Material | Ss Sheet Or Iron Gal. Sheet |
| Highlight | 2.5mm Razor Barbed Wire Machine,220m/H Razor Barbed Wire Machine,220m/H Barbed Wire Fencing Equipment |
||
Product Description
Fully automatic razor barbed wire machine expanded metal mesh machine
details of machine:

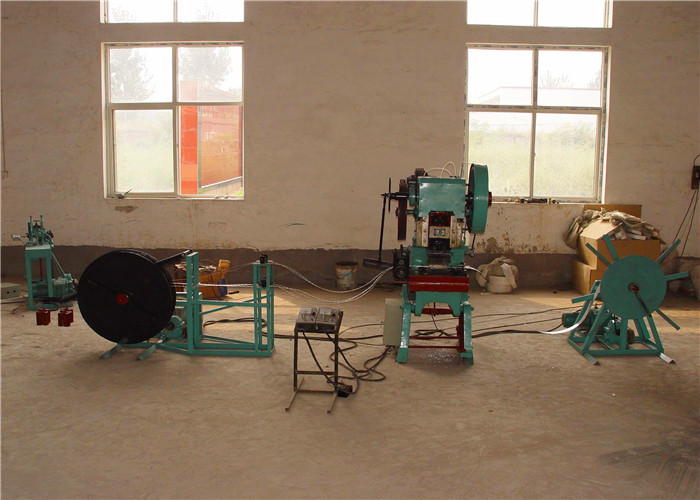

Razor barbed netting machine, also named as razor barbed wire machine, is specially used to manufacture razorbarbed wires.It mainly consists of punching razor strip machine,coiling wire machine and mould.The punchingrazor strip machine is used as punching the outside razor strip of razor wire .The coiling wire machine is usedas coiling the wire into the razor strip to form the finished razor wire .The mould decide the razor length ,widththe space.

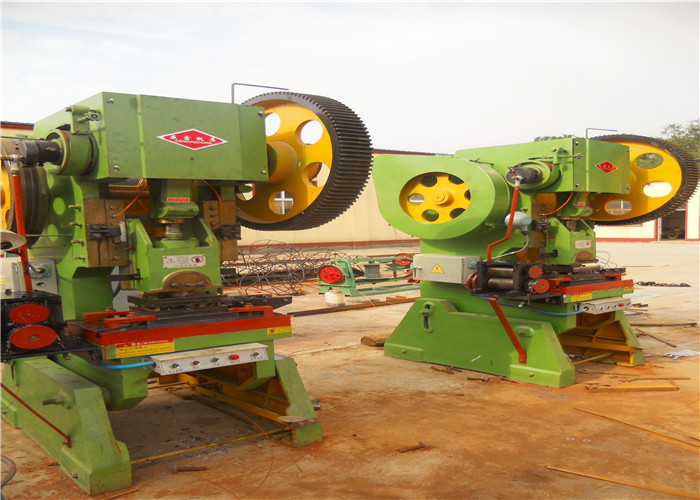

main punching machine
It mainly consists of punching machine ,mould ,decoiler and razor strip collector
| Type |
25T punching press (5 strips choice) |
40T punching press (9 strips choice) |
| Producing speed | 220-280m/h | 220-280m/h |
| Power | 2.2KW | 3.0KW |
| Rated Voltage | 380V,50HZ | 380V,50HZ |
| Overal Diamension | 1325MMX990MMX21400MM | 1600x1180x2310 |
| Weight | 1.9T |
3.2T |

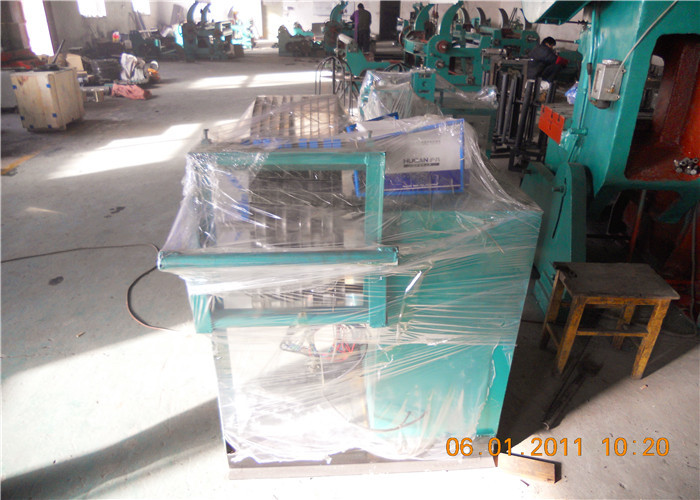

Coiling Wire Machine
It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.
| Overal Diamension | L*W*H:1100mmx750mmx1200mm |
| Rated Voltage | 380V |
| Power | 1.5kw |
| Producing speed | 80kg/h |
| 80kg/h | 300kg |
