9 Strips Razor Wire Machine , 280m/h Barbed Wire Fencing Equipment

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ500 DZ900 DZ2100
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engineer Available To Service Machinery Overseas Blade Type BTO-10,BTO-12,BTO-18,BTO-22,CBT-65
Sheet Thickness 0.3-0.6mm Strips 9
RatedVoltage 380V Speed 2.5T~3T
Highlight

380V Razor Wire Machine

,

280m/h Razor Wire Machine

,

280m/h Barbed Wire Fencing Equipment

Leave a Message
Product Description

Low Loss And High Efficiency Complete Line 9 Strips Razor Wire Machine



The equipment is specially designed for the production of razor wire.The main technical parameters of the razor wire machine: The machine consists of two wire coiling machines and a main machine that can punch and cut nine strips. Its perfect embodiment: high efficiency, can produce steel belt 80kgs per hour. Low loss, the raw material loss of the old model is 40%, while the type is reduced to 15%.

Dimensions:

Wire coiling machine: length 1.3mX width 0.7mX height 1.1m

Main machine (punching machine): length 1.1mX width 0.85mX height 2.0m

Collecting machine: length 1.4mX width 0.75mX height 1.0m



Equipment after sales service:

1. The warranty period of the whole machine is 2 years. The electrical parts of the equipment are maintained for life. The warranty does not include vulnerable parts (abrasive tools) and man-made damage.

2. If the customer equipment fails, our company will immediately give a clear reply when receiving the call from the user. If still cannot solve the problem, will go to the customer company for maintenance.

3. After the warranty period, our company provides lifetime after-sales service support, and provides equipment accessories at the original price of accessories.

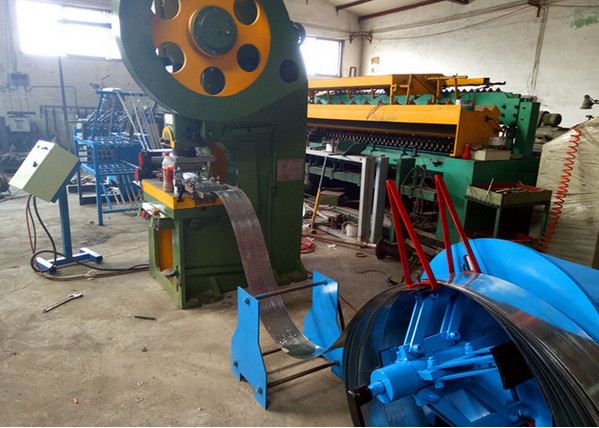

main punching machine



It mainly consists of punching machine ,mould ,decoiler and razor strip collector



Type

25T punching press

(5 strips choice)

40T punching press (9 strips choice)
Producing speed 220-280m/h 220-280m/h
Power 2.2KW 3.0KW
Rated Voltage 380V,50HZ 380V,50HZ
Overal Diamension 1325MMX990MMX21400MM 1600x1180x2310
Weight 1.9T

3.2T



Coiling Wire Machine



It mainly consists of wire pay off stand ,razor strip laying shelf,wire coiling machine and razor wire collector.



Overal Diamension L*W*H:1100mmx750mmx1200mm
Rated Voltage 380V
Power 1.5kw
Producing speed 80kg/h
80kg/h 300kg
