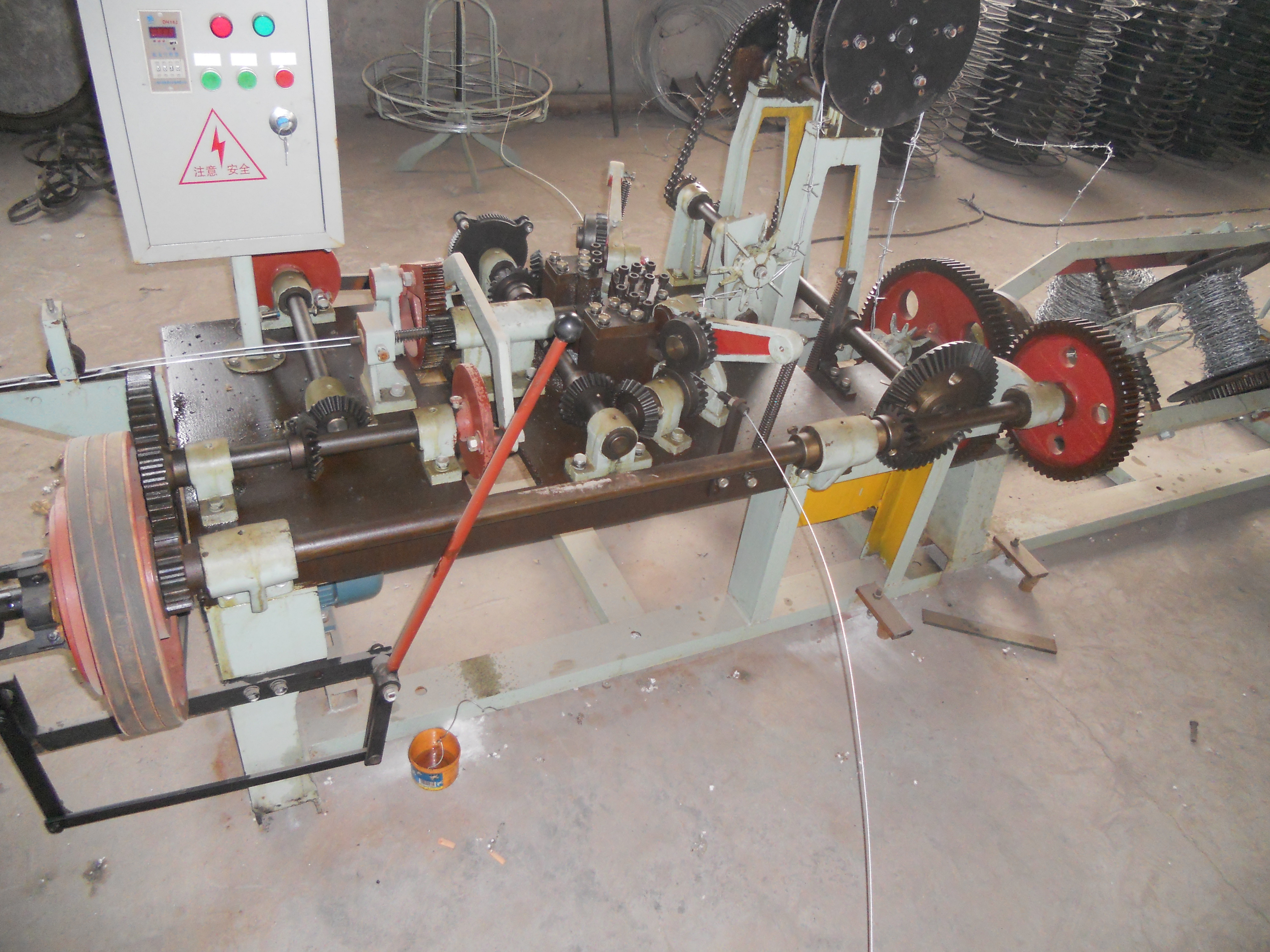

Stable Movement High Efficiency Barbed Wire Machine Popular In World

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ-CSA DZ-SCB DA-CSC
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engineer Service Machinery Oversea Twist Double
Material Galvanized Wire Wire Diameter 2.2-3mm
Capcity 70kg/hour Motor 2.2kw
High Light

expanded metal sheet making machine

,

high speed expanded metal machine

Leave a Message
Product Description



Popular In The World Stable Movement High Efficiency Low Noise Barbed Wire Machine



The specific operation method of the barbed wire machine is: turn on the power (three-phase four-wire), open the control box, close the air switch, and press the start button to start the car. First, try to produce a certain output and obtain the corresponding number of revolutions of the drive shaft. At this time, the counter is set to a maximum of 9999, and the corresponding number of revolutions per kilogram can be obtained (the number of revolutions per kilogram can be determined according to theoretical calculations). You can then set the number of counter revolutions to the set number of revolutions (ie, to determine the output) The machine can stop automatically. The barbed wire machine then presses the zero button, the counter number is displayed as zero, and then presses the start button again for the next production.



Classified by surface treatment: galvanized barbed wire, pvc plastic barbed wire, aluminum coated barbed wire. The reason for surface treatment is to strengthen the corrosion resistance. The surface treatment of galvanized barbed wire is galvanized, which can be electric galvanized and hot-dip galvanized; the use of barbed wire: for industrial, agricultural, animal husbandry, highway, forest farm protection.



Technical parameter of barbed wire making machine



Model CS-A CS-B CS-C
Motor power 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355 r/min
Wire diameter 2.2-3mm 2.2-3mm 1.6-2.8mm
Barb wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed space 76mm/ 102mm/ 127mm 102mm/ 127mm 102mm/ 127mm
Twisted number 3-5   7
Production 70 kg/h 40 kg/h 40 kg/h
Weight 1200kg 1000kg 1000kg
Dimension 1950×950×1300 3100 ×1000 ×1150mm 3100 ×1000 ×1150mm
