3-5 Twist Barbed Wire Machine Convenient Operation Electronic Counting Control

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ-CSA DZ-SCB DA-CSC
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engineer Service Machinery Oversea Twist Single
Material Hot Galvanized Wire Wire Diameter 2.2-3mm
Capcity 40kg/hour Motor 2.2kw
High Light

expanded metal sheet making machine

,

high speed expanded metal machine

Leave a Message
Product Description

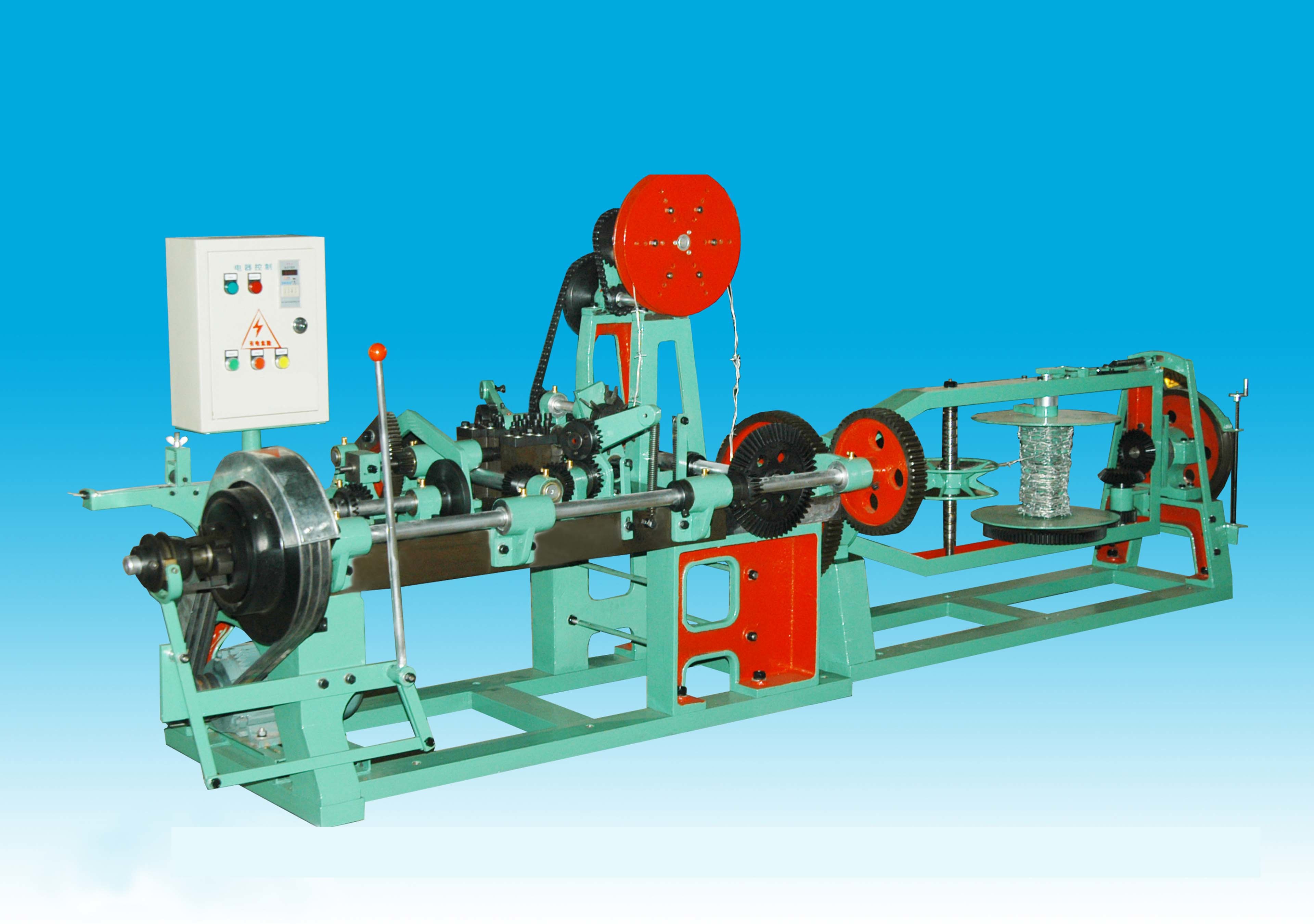

Convenient Operation Electronic Counting Control 3-5 Twist Barbed Wire Machine



The strands are fed intermittently by a fixed-length wire feeding mechanism. The eccentric distance on the eccentric disc can be adjusted to achieve your desired stab distance according to user requirements. The stab distance specifications are 50, 80, 100 (mm) (special specifications can be negotiated. Do), enter the winding head through the squashing device. The fan-shaped gear drives the gear shaft to return around the wire head, rotate counterclockwise, and wind the barbed wire regularly on the flattened strand position. After one round of rotation, the cam pushes the lever to raise the movable knife holder and cut the barbed wire. The stabbing action ends. The single-stranded barbed wire passes under the sliding gear, on the gliding wheel, on the wire discharging wheel, and on the take-up mandrel. The take-up sprocket is driven by the main drive sprocket to take up the wire in parallel through friction transmission.



Barbed wire is made of electric galvanized barbed wire wrapped around the main wire and twisted to protect and isolate it. The twisting method is divided into single twisting and double twisting. The construction methods include direct installation method and spiral cross method. Uses: for industrial, agricultural, animal husbandry, highway, forest farm protection.



Technical parameter of barbed wire making machine



Model CS-A CS-B CS-C
Motor power 2.2KW 2.2KW 2.2KW
Main drive shaft speed 402 r/min 355 r/min 355 r/min
Wire diameter 2.2-3mm 2.2-3mm 1.6-2.8mm
Barb wire diameter 1.8-2.2mm 1.8-2.2mm 1.6-2.2mm
Barbed space 76mm/ 102mm/ 127mm 102mm/ 127mm 102mm/ 127mm
Twisted number 3-5   7
Production 70 kg/h 40 kg/h 40 kg/h
Weight 1200kg 1000kg 1000kg
Dimension 1950×950×1300 3100 ×1000 ×1150mm 3100 ×1000 ×1150mm
