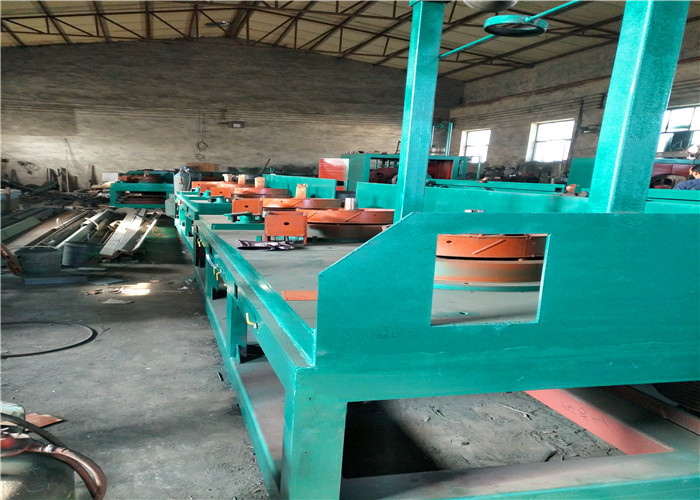

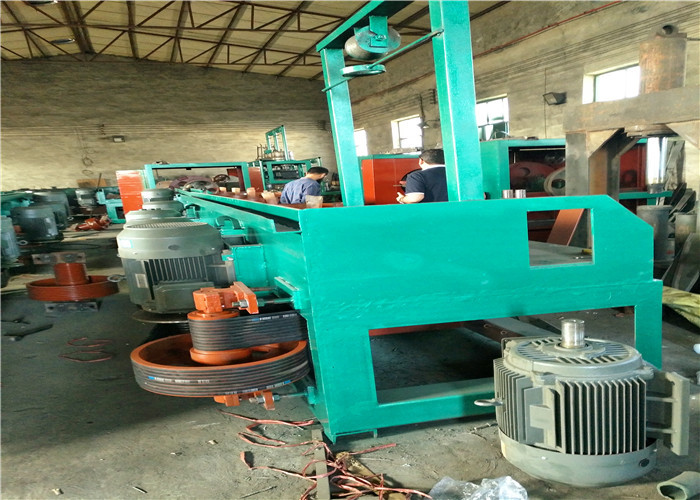

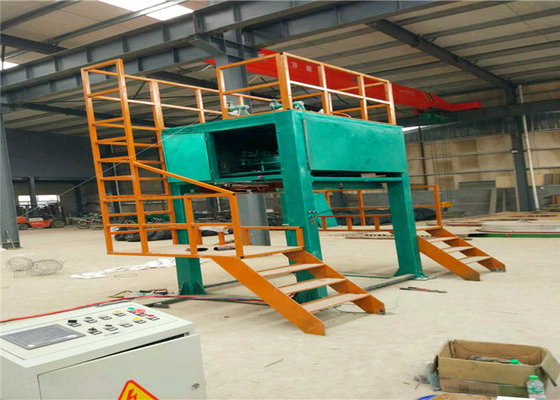

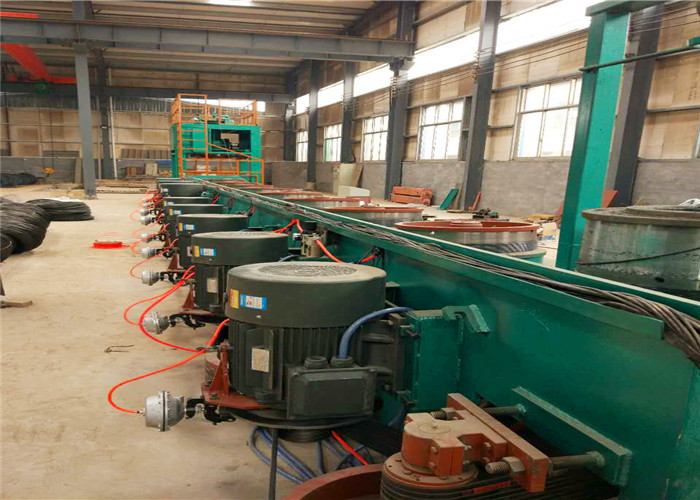

ISO9001 Dry Drawing Machine , 5.5mm 2.0mm Continuous Wire Draw Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-BSJ650 DZ-BSJ900 DZ-BSJ1100 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engineers | Available To Service Machinery Overseas | Total Compressing Rate | 80% |
|---|---|---|---|
| Function | Drawing Wire | Material | High, Medium, Low Carbon |
| Control | Frequency Conversion Control | Type | Continue, Pully Drum |
| Highlight | ISO9001 Dry Drawing Machine,5.5mm Wire Draw Machine,2.0mm Wire Draw Machine |
||
Product Description
Automatic straight line steel wire drawing machine lowest price
We have dry, straight wire drawing machine in various model sizes and designs to produce different dimensions of wire. With the latest technology and high machine quality, the machine could run at high speed and high stability. We assemble the various machines to create a custom production line, which will provide you with high quality wire.
Specifications: (Model of DZ8/560)
| ITEM | Unit | Data |
| Diameter of inlet wire | mm | 5.5 |
| Diameter of outlet wire | mm | 2.0 |
| Content of C | % |
Low carbon steel wire; SAE 1006-1010 |
| Number of drawing capstan | 8 | |
| Diameter of drawing capstan | mm | 560 |
| AC motor of the capstan | KW | 18.5 |
| Take-up type | Φ600mm coiler | |
| AC motor of coiler | KW | 15 |
| Average reduction | % | 20% |
| Max. line speed | m/s | 16 |
| Real operation speed | m/s | 11-13, depends on the material |
| Capstan set up | Tilted type | |
| Cooling type | Inner water cooling&Outer wind cooling | |
| Tension roller | Pneumatic roller control | |
| PLC | Siemens S7 series | |
| AC driver | ABB | |
| Interface | Siemens MP277 | |
| Transducer | TE | |
| Low voltage parts, button, indicator | Schneider | |
| Noise | DB | Less than 80DB |
