High Speed PVC Wire Making Machine 65mm 80r/m With Straightening Device

Place of Origin CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1200 DZ1000 DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1SET
Price variable
Packaging Details NUDE
Delivery Time 10-20 DAYS
Payment Terms L/C, T/T, D/P
Supply Ability 30 SETS ONE MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
COLOUR BLUE , GREEN AND GRAY TYPE AUTOMATIC
FEEDING AUTOMATIC BY STANDS Speed FAST
Product Name Pvc Coated Wire Making Machine Engineer Available To Service Machinery Overseas
Highlight

65mm PVC Wire Making Machine

,

80r/m PVC Wire Making Machine

,

65mm PVC Wire Coating Machine

Leave a Message
Product Description
Complete production line of China factory PVC wire coated machine





1. wire spooling machine

2. straightening device

3. water cool device

4. three-speed traction engine

5. swing pot wire rolling machine



Technical Parameter of Galvanized wire PVC coated wire barbed wire machine



Diameter of Screw 65mm
Screw rate 25:1
Screw rotation speed 80 r/m
Max.Extrusion 70kg per hour
Inverter Inverter (18.5Kw)
Motor capacity 15kw
Height of center 820mm
Extrusion overall size 2400X820X900mm
Weight 1600Kg



PVC coated wire barbed wire machine

1. This machine is for wire coated by hot-extrusion with PE (polyethylene) or PVC (polyvinyl chloride).

2. Raw material: low carbon wire, black wire, galvanized steel wire.



Advantages

1. Inverter with adjustable frequency;

2. Working speed and temperature is adjustable;

3. Energy saving 30%;

4. High speed and high productivity;

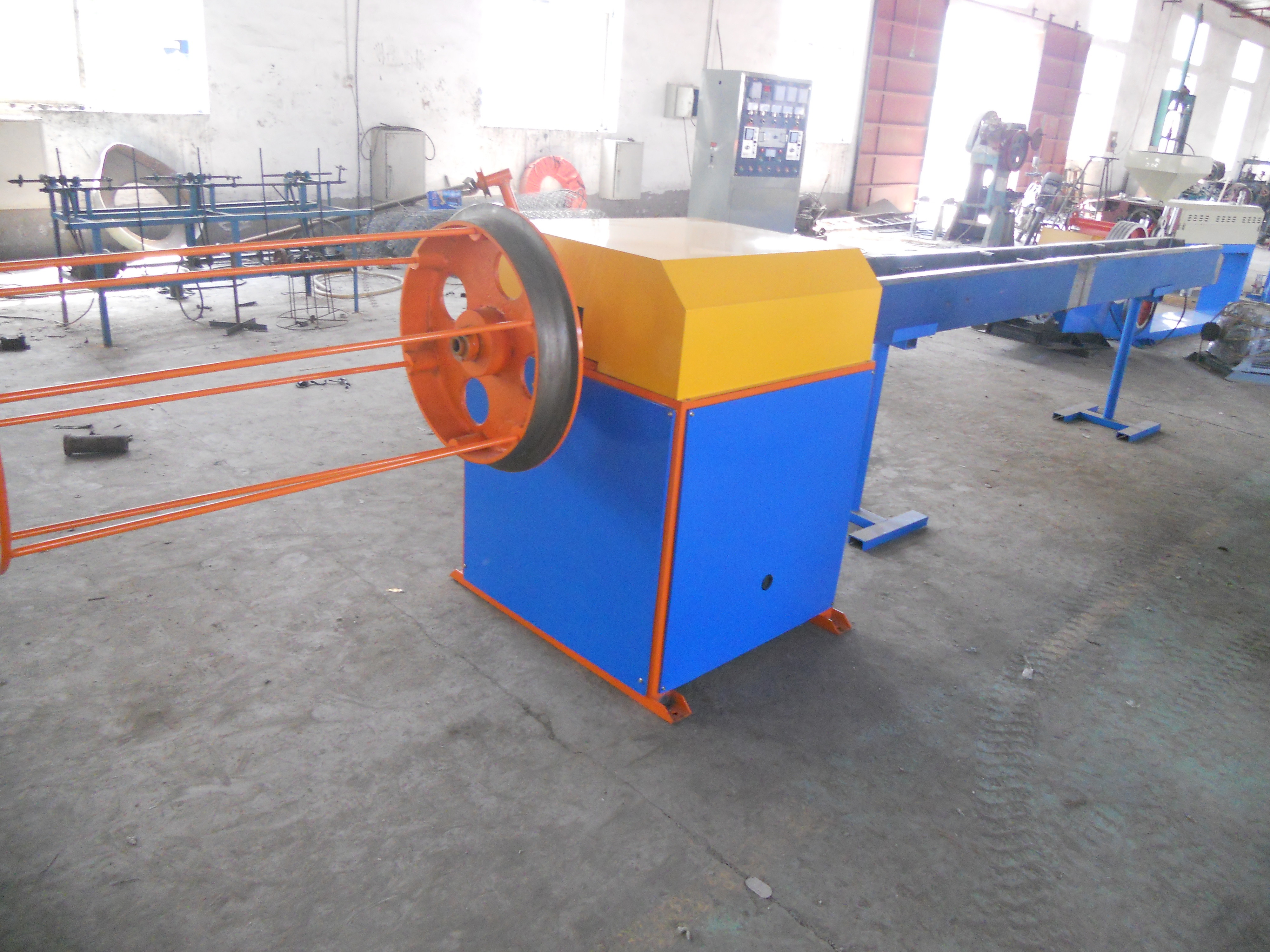

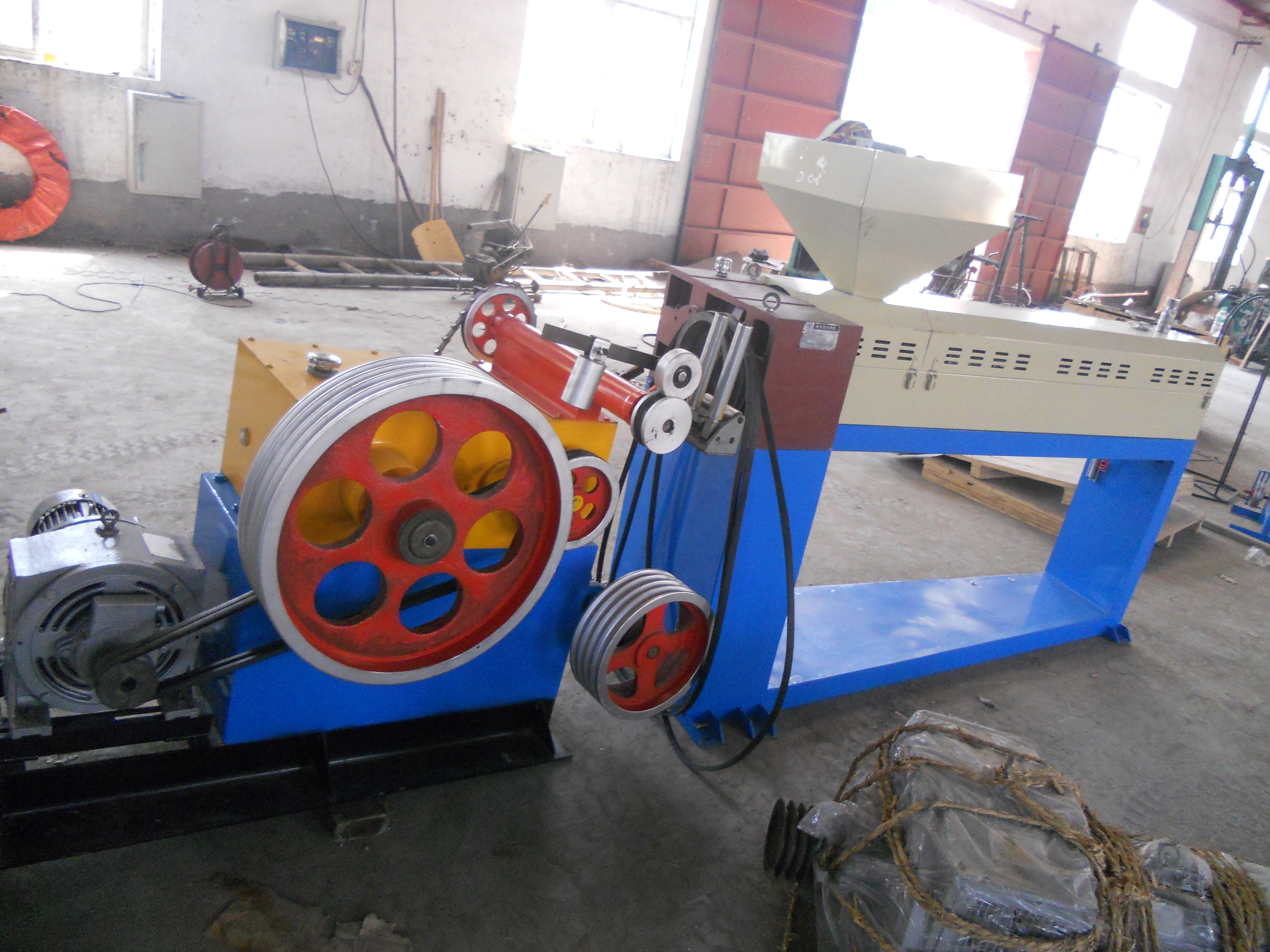

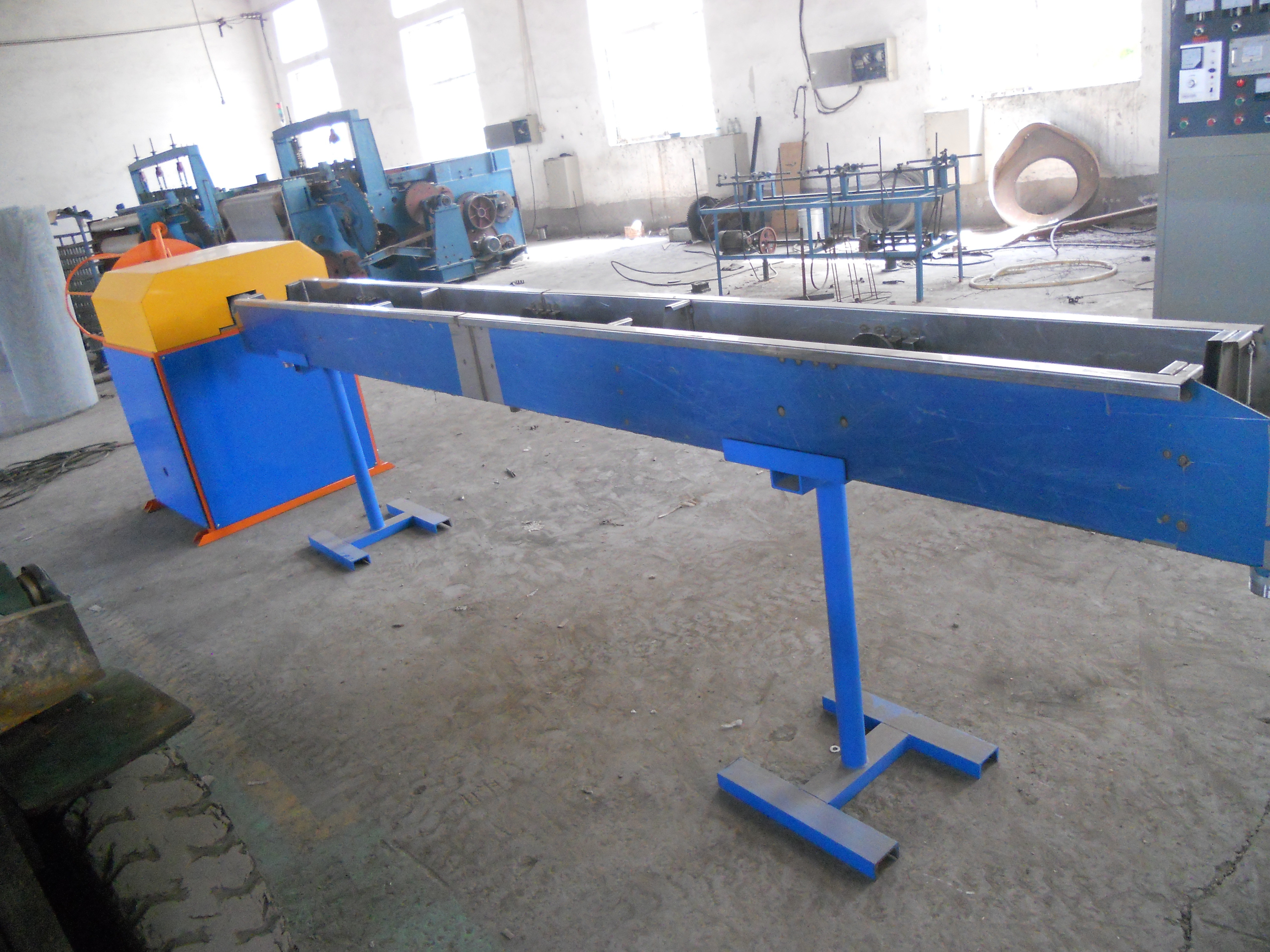

High Speed PVC Wire Making Machine 65mm 80r/m With Straightening Device 0
