3 Twist 5 Twist Gabion Making Machine 5.5m width For Construction

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE CERTIFICATION , ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Galvanized Wire Width Max Can Make 5.5m
Twist 3-5 Can Be Adjustable Stop Automatic When Wire Use Out
Product Name Gabion Weaving Equipment Delivery Time 30 Days After Deposit Arrival
High Light

5 Twist Gabion Making Machine

,

5.5m Gabion Making Machine

,

3 Twist Gabion Making Machine

Leave a Message
Product Description

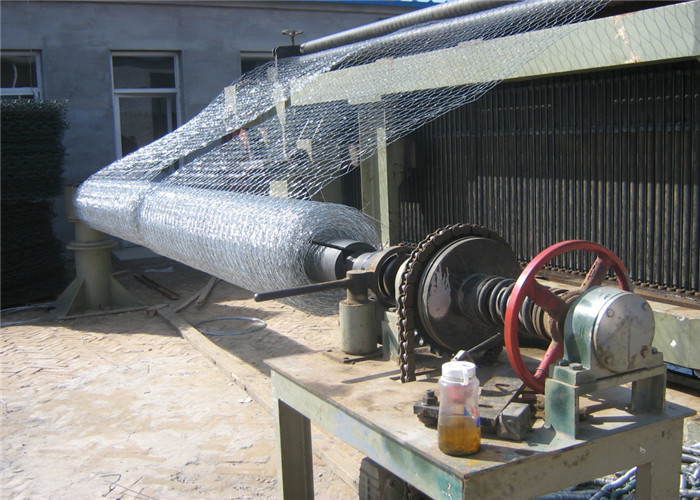

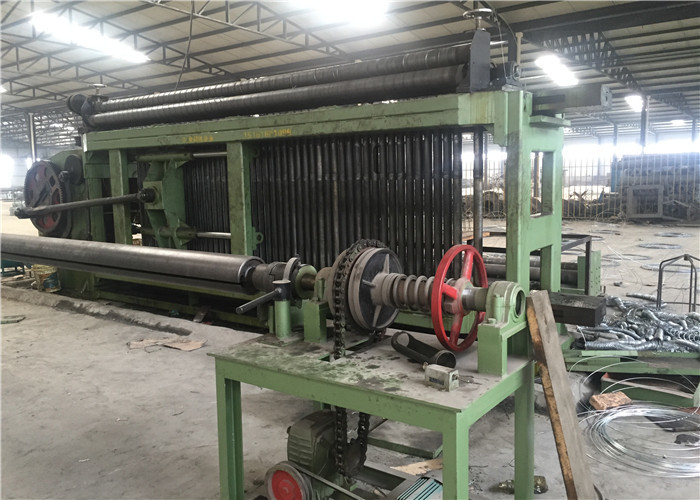

Full Automatic Big Machine 5 Twist Width 4300 Gabion Machine



Gabion mesh machine is the production of the regular hexagon metal mesh professional equipment, and its products are widely used in the petroleum, construction, farming, chemical industry, heating pipes and other pipes wrapped network; it can also used in fence, residential and landscape protection. Gabion mesh machine can also be used for the production of gabion cages, which are widely used to protect and support the seawall, hillsides, road and bridge, reservoirs and other civil engineering works, and it is good material for flood fighting.

Gabion machine is designed to produce hexagonal wire mesh with galvanized low carbon steel wire, suitable for structural, heat insulation, protective, and fencing applications. Most of gabion mesh machines are of horizontal design, ensuring smooth running and high productivity.



The features of gabion machine:

1. Safety: fast speed,low vibration,jog,single step operation,stable operation,low noise and high efficiency

2. if broken wire, broken net or gauge will stop in the machine preparation process, and alarm

3. The mesh is neat and uniform and can be reinforced in the middle of any mesh

4. The machine is equipped with an automatic lubrication system, which is concentrated and easy to use.

5. Single operation,efficient wear resistance,machine zero failure rate



Equipment after sales service:

1. The warranty period of the whole machine is 2 years. The electrical parts of the equipment are maintained for life. The warranty does not include vulnerable parts (abrasive tools) and man-made damage.

2. If the customer equipment fails, our company will immediately give a clear reply when receiving the call from the user. If still cannot solve the problem, will go to the customer company for maintenance.

3. After the warranty period, our company provides lifetime after-sales service support, and provides equipment accessories at the original price of accessories.



machine details



Model



Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.5 225
LNWL23-120-2 120*150 1.6-3.2 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255
LNWL43-60-3 60*80 4300 1.6-2.8 5 25 2 165
LNWL43-80-3 80*100 1.6-3.0 195
LNWL43-100-3 100*!20 1.6-3.0 225
LNWL43-120-3 120*150 1.6-3.2 20

255
