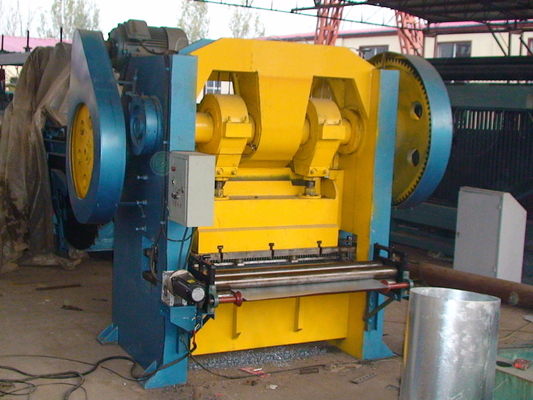

Full Automatic Perforated Metal Machine 0.1mm 220 Mesh/Min
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ-CKW250 DZ-CKW2000 DZ-CKW1500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | with water-proof film covered or at customer's request |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Speed | 220 Mesh/min | The Precision Of Hole-punching | 0.1mm |
|---|---|---|---|
| Product Name | Perforated Metal Machine | Thickness Sheet | As Required |
| Power | 380V 50Hz | Engineer | Available To Service Machinery Overseas |
| Highlight | 0.1mm Perforated Metal Machine,20Mesh/Min Perforated Metal Machine,0.1mm Perforated Sheet Punching Machine |
||
Product Description
Thickness 2MM Stable and Precise Full Automatic Perforated Metal Machine
This perforated metal machine is a two-axis or XY cooperative feeding, and the processing object is flat plate (thin steel plate,thick steel plate, stainless steel plate, metal or PVC,etc.)
Our advantages:
1. Efficient production efficiency, product consistency is greatly guaranteed,from hundreds of CNC feeding platform installation and debugging experience,numerous customer site problem solutions,using our equipment to produce the products you need,the products are consistent improve sexuality and eliminate human instability. Greatly reduce the rework rate.
2. The safety performance of the machine is excellent. The stamping industry has always been a high-risk industry.During the safety of the CNC feeding machine, no one directly operates the punching machine,eliminating the hidden dangers of casualties.Secondly,the equipment itself comes with various safety protection mechanisms.Our machine will make you no more safety concerns. In order to prevent accidental operation and damage the machine,we have added a stroke overrun protection,which can promptly alert and handle the problem.Unstable voltage,over current our equipment can automatically protect components without damage.
Please check the details about the machine:
| Model | DZ31G-80 | DZ31G-125 | DZ31G-160 | DZ31G-200 |
| Nominal Force(KN) | 800 | 1250 | 1600 | 2000 |
| Nominal Stroke(MM) | 2 | 3 | 3 | 3 |
| Slide Stroke(MM) | 30 | 30 | 30 | 30 |
| SPM(MIN) | 160-280 | 160-240 | 160-220 | 150-200 |
| Max Die Height(MM) | 360 | 400 | 400 | 420 |
| Die Height Adjustment(MM) | 50 | 50 | 50 | 50 |
| Boster(F.B*L.R*T)(MM) | 550*980 | 600*1180 | 700*1380 | 800*1550 |
| Boster Opening(F.B*L.R)(MM) | 500*950 | 550*1050 | 600*1250 | 650*1450 |
| Between Columns(MM) | 1000 | 1200 | 1400 | 1600 |
| Motor Power(KW) | 11 | 18.5 | 22 | 30 |
| Air Pressure(MM) | 0.5 | 0.5 | 0.5 | 0.5 |
| Net Weight(KG) | 9000 | 11500 | 15000 | 19000 |
