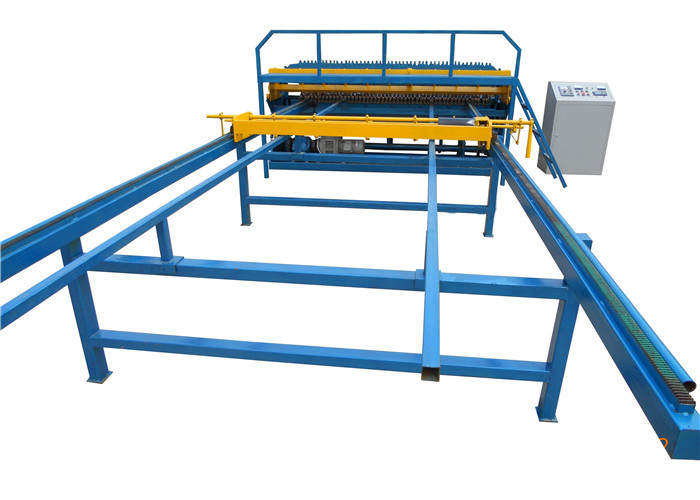

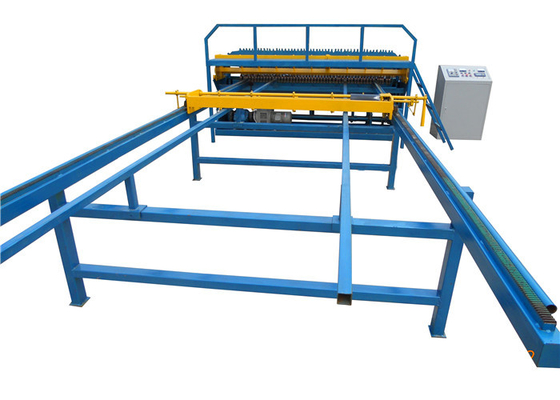

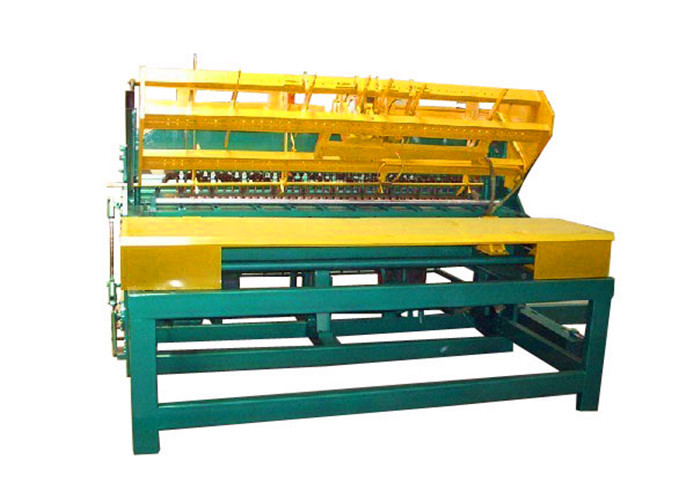

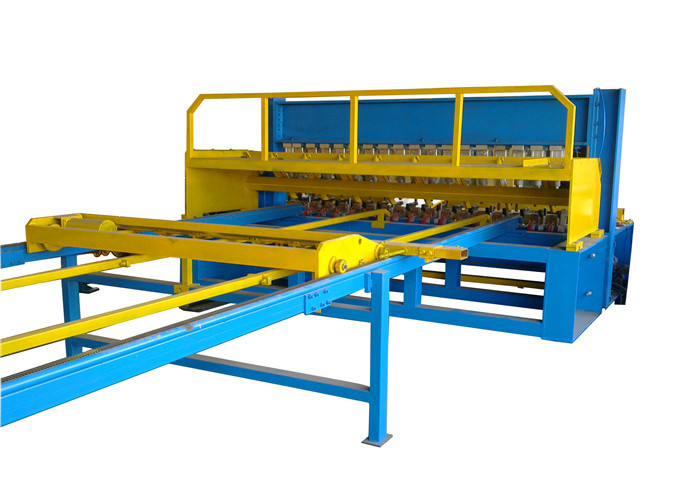

DZ1200 DZ2500 Fence Mesh Welding Machine Automatic Wire Mesh Fence Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1000 DZ2000 DZ2500 DZ3000 |
| Minimum Order Quantity | 1SET |
| Price | variable |
| Packaging Details | NUDE |
| Delivery Time | 10-20 DAYS |
| Payment Terms | L/C, T/T, D/P, Western Union, MoneyGram |
| Supply Ability | 20 SETS ONE MONTH |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| COLOUR | Blue , Green And Gray | TYPE | Automatic |
|---|---|---|---|
| FEEDING | AUTOMATIC BY STANDS | WELDONG | Fast |
| ENGINEER | After Sales Services Door To Door | WIRE DIAMETER | 3 - 6 MM |
| High Light | DZ1200 Fence Mesh Welding Machine,DZ2500 Fence Mesh Welding Machine,DZ2500 Wire Mesh Fence Machine |
||
Product Description
Wire diameter 2.5 - 6 mm fence mesh welding mesh machine by panel or rolls
fence mesh welding machine
| Model | DZ2500 | Welding speed | 40 -65times/min |
| Wire diameter | 2.5-6mm | Welding electrodes | 48pcs |
| Longitude wire space | 50-300mm | Longitude wire feeding | Pre-straightened&pre-cut |
| Cross wire space | 25-300mm | Cross wire feeding | Pre-straightened&pre-cut |
| Mesh width | Max.2.5m | Overall Size | 8.4*3.1*1.7m |
| Rated electrical power | 85kva*6 pcs | Weight | 4200kg |
Note:The line wires and cross wires should be pre-straightened and pre-cut.
1. This machine adopts Japan brand Panasonic PLC program
2. The input front-panel is Weinview touch screen
3. Schneider(France) low voltage electric,Schneider (France) Air switch
4. Delta(Taiwan) frequency inverter
5. ABB Switzerland switch
6. Brake motor &helical gear reducer connect principle axis directly,strong power
7. Panasonic servo motor for mesh pulling,high precision
8. Germany cable carrier on the side for mesh pulling
9. Step motor and SMC(Japan) air cylinder in the hopper device,the cross wire fall down from the hopper automatically
10. Adjustable longitude wire space and cross wire space
11. Water-cooling type welding transformers,PLC control welding degree,adjustable
12. The machine stops automatically if cross wires in the hopper are used up.
