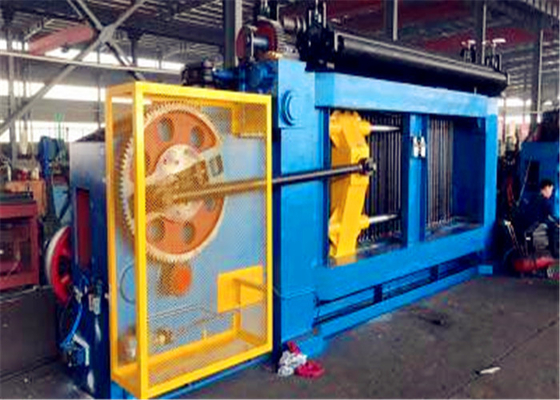

Double Wire Twist Gabion Box Machine Smooth Operation Low Noise 2.0mm~4.0mm Dia

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 8 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control Automatic Stop And Counter
Speed 225-265m Per Hour Engineer Abroad Avaliable
Wire Dia 2-4mm Mesh Opening 60x80 80x100 100x120
High Light

gabion wire mesh machine

,

gabion box machine

Leave a Message
Product Description

Double wire twist fully automatic gabion box mesh weaving machine

Gabion mesh machines (hexagonal wire netting machine) have been designed to make gabion mesh (hexagonal mesh) of various widths and mesh sizes. For high corrosion resistance, zinc and PVC, galfan coated wire is available.

The Gabion Mesh Machine can provide gabion mesh products for various kinds of construction items. The gabion products are commonly used to drain water course to protect and support roads, railroads, airports and residential areas, for coastal protection, build retaining walls, river bank protections, weirs, gabion boxes mattresses, etc.

The series gabion mesh machines have been designed to make gabion mesh of various widths and mesh sizes. The possible coatings are heavily galvanized and zinc. For high corrosion resistance, zinc and PVC, galfan coated wire is available.We can manufacture gabion machine according to customer's request.



WIRE TYPE Galvanized Steel Wire; PVC Coated Wire ,Black Annealed Wire; Stainless Steel Wire
WIRE DIA 2.0mm~4.0mm
MESH CORE 60x80mm 80x100mm 100 mm×120 mm 120x150mm AS REQUIRED
MESH WIDTH ≤4300mm, Adjustable
SPEED ≥2.7m/min
POWER 30kW, 3Phases, AC380V, 50Hz
WEIGHT 18.5TONS



Standard production line

1 gabion mesh weaving machine 1 set
2 wire pay off stands system 1 set
3 wire tension parts 1 set
4 mesh roller 1 set
5 spring coiling machine 1 set

advantage of the machine:

1. PLC automatic control

2. Smooth operation, low noise, and high efficiency.

3. The machine includes five series with 15 moulds and the max. Width can reaches 5.3m.





Main Features

1) Adopted with central automatic lubrication system, so as to make feeding guideway to have the good performance for little resistance, little friction, good lubrication and long life etc.

2) PLC control system touch screen is available for the hexagonal wire mesh machine.

3) Automatic stop system saves much labor force.



Packing Details

Packing Details: Nude packing and will be fixed in the 40'container by iron wire

Lead Time: 50 days

A set of gabion mesh machine is composed of hexagonal wire mesh machine, wire tension device, netting winding machine and spring coiling machine.



FAQ

About Price
The price is negotiable. It can be changed according to your quantity or order quest. When you are making an inquiry, please let me know the quantity you want.

About Warranty
We are very confident in our products, and we pack them well, so usually you will receive your order in good condition. Engineers available to service machinery overseas. Any quality issue, we will deal with it immediately.
