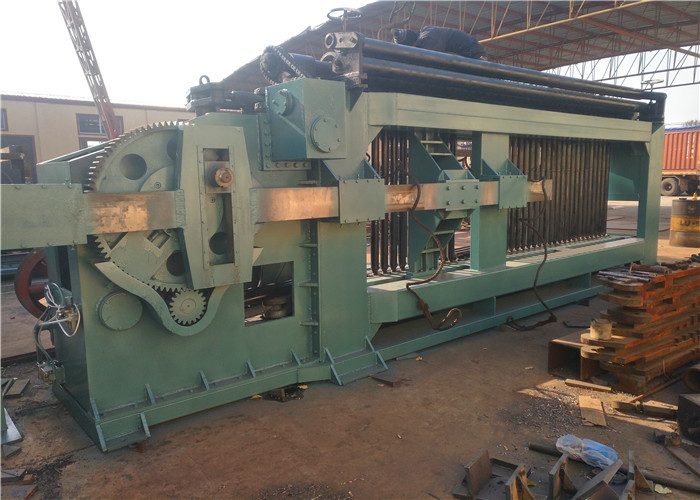

4.25m/Min Gabion Mesh Machine PLC Stop Automatic ISO9001 certified

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Gabion Mesh Machine Material Steel Welding New
Control PLC Stop Automatc Speed 225-265m Per Hour
Engineer Available To Service Machinery Overseas Mesh Oepning 60x80 120x150
Highlight

4.25m/Min Gabion Mesh Machine

,

ISO9001 Gabion Mesh Machine

,

4.25m/Min Gabion Production Line

Leave a Message
Product Description

First design gabion mesh machine steady machine fuction and easy to operate





Advantages:

1. New type double rack drive gabion knitting machine

2. High efficiency: theoretic output=4.25m/min

3. PLC control system touch screen(Option)

4. Infrared ray safety(Option)

5. Automatic stop system (Option)

6. Automatic oil system

7. The knitting machine is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.

8. The design is innovation in China, it can weave the wire 4.0mm easily and speed as normal wire diameter.



machine details


Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
60*80 2300 1.6-3.0 3 25 11 165
80*100 1.6-3.0 195
100*120 1.6-3.5 225
120*150 1.6-3.2 20 255
60*80 3300 1.6-2.8 25 15 165
80*100 1.6-3.0 195
100*120 1.6-3.2 225
120*150 1.6-3.5 20 255
60*80 4300 1.6-2.8 25 22 165
80*100 1.6-3.0 195
100*120 1.6-3.0 225
120*150 1.6-3.2 20 255
60*80 4300 1.6-2.8 5 25 2 165
80*100 1.6-3.0 195
100*!20 1.6-3.0 225
120*150 1.6-3.2 20

255











We always pay more attention to the quality of our machine, Standard quality control system and team are responsible to insure the high quality in every process. We are devoted to producing a more efficiency and safer machines.
