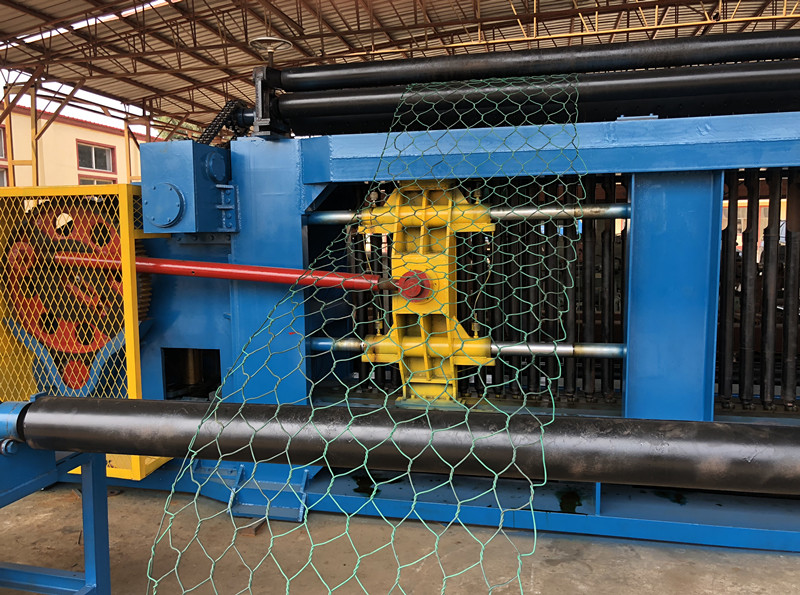

1.6mm 3.5mm Gabion Mesh Machine 100*120mm For River Management

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE CERTIFICATION , ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Pvc Coated Wire,G.I Wire Width Max Can Make 5.5m
Stop Automatic When Wire Use Out Product Name Gabion Mesh Equipment
Diameter From 1.8-4.5 Delivery Time 30 Days After Deposit Arrival
Twist 3-5 Can Be Adjustable Delivery Way Shippment Or Railway
Highlight

3.5mm Gabion Mesh Machine

,

100*120mm Gabion Mesh Machine

,

1.6mm Galvanized Wire Machine

Leave a Message
Product Description

Diaozhuo Economic Gabion Mesh Machine , Max Width 5500 Wire Mesh Equipments



1. the introduction of gabion mesh equipment:


The gabion mesh equipment is used to produce all kinds of gabion mesh,including wire diameter 1.6-3.5mm,mesh opening 60*80mm,80*100mm,100*120mm and so on,the biggest width can be 5500mm,the detailed information you can see the below sheet for reference.Noted that one machine can produce only one size mesh opening.And the gabion baskets are mainly used for river management, river channel protection, flood control and other water conservancy projects



2. the good point of machine:



  • a. safe,fast speed,low noise and high efficiency,low vibration,easy to operate
  • b. Interrupt the line during the machine preparation process, disconnect the network or stop the instrument, and alarm the worker
  • c. The mesh is neat and uniform and can be reinforced in the middle of any mesh
  • d. The machine is equipped with an automatic lubrication system that is centralized and easy to use.

3. machine details



Model



Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.5 225
LNWL23-120-2 120*150 1.6-3.2 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255
LNWL43-60-3 60*80 4300 1.6-2.8 5 25 2 165
LNWL43-80-3 80*100 1.6-3.0 195
LNWL43-100-3 100*!20 1.6-3.0 225
LNWL43-120-3 120*150 1.6-3.2 20

255
