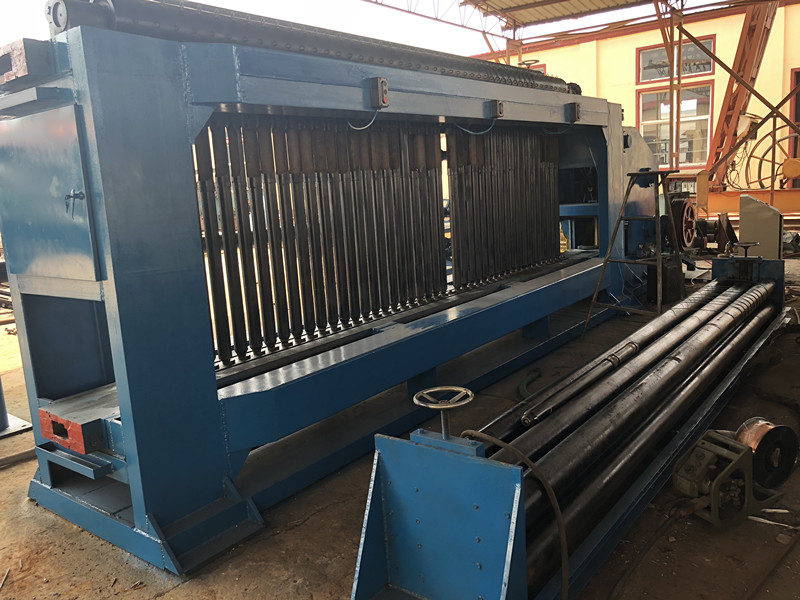

Gabion Making Machine , 1.8mm 4.5mm Hexagonal Wire Mesh Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE CERTIFICATION , ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Pvc Coated Wire,G.I Wire Width Max Can Make 5.5m
Twist 3-5 Can Be Adjustable Stop Automatic When Wire Use Out
Product Name Gabion Mesh Equipment Diameter From 1.8-4.5mm
Delivery Time 30 Days After Deposit Received Speed Max 255m/h
Highlight

1.8mm Gabion Making Machine

,

4.5mm Gabion Making Machine

,

1.8mm Hexagonal Wire Mesh Machine

Leave a Message
Product Description

Durable Diaozhuo Gabion Mesh Machine , Smoothly Running Machine



Know more about the gabion making machine:


The gabion making machine is a big size machine,needs one 40 HQ container,the weight is about 18.5 tons,the gabion mesh machine can weave max width 5.5m,we can change the width according to your request,find the most suitable machine for you.Making the customer satisfied is always we pursuing.


The machine is made use of manufacturing the gabion baskets.The gabions are ideal materials for flood prevention and flood control in protecting and support seawall,hillside,road bridges,reservoir and other civil engineering in the form of mesh containers filed with stones.They are usually used to control and guide rivers and floods,bank protection slope,channel canal bed and so on.



Machine details:



Common size machine for your reference,we can also make the customizable machine.



Model



Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.5 225
LNWL23-120-2 120*150 1.6-3.2 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255
LNWL43-60-3 60*80 4300 1.6-2.8 5 25 2 165
LNWL43-80-3 80*100 1.6-3.0 195
LNWL43-100-3 100*!20 1.6-3.0 225
LNWL43-120-3 120*150 1.6-3.2 20

255
