Precision Gabion Mesh Making Machine / Wire Mesh Weave Machine 4.3m 100*120mm

Place of Origin ANPING COUNTY, HEBEI,CHINA
Brand Name diaozhuo
Certification CE ISO
Model Number SLW43-100
Minimum Order Quantity 1 set
Price usd 35000 per set
Packaging Details 1*40 OT
Delivery Time 30days
Payment Terms L/C, T/T
Supply Ability 1 set per 30 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mesh Size 60*80 80*100 100*120 120*150 Max Width 2.3m 3.3m 4.3m
Wire Diameter 1.6-3.2mm Twisting Number 3 Or 5
Speed 20-25r/min Motor Capacity(kw) 22
Theoretical Speed 225m/h Warranty Period 3 Years
Highlight

gabion wire mesh machine

,

gabion box machine

Leave a Message
Product Description

1.gabion mesh machine specification, red one hot sale

Model Mesh Size(mm) Max.Width(mm) Wire Diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
SWL23-60 60*80 2300 1.6-3.0













3/5

25 11 165
SWL23-80 80*100 1.6-3.0 25 195
SWL23-100 100*120 1.6-3.5 25 225
SWL23-120 120*150 1.6-3.2 20 255
SWL33-60 60*80 3300 1.6-2.8 25 15 165
SWL33-80 80*100 1.6-3.0 25 195
SWL33-100 100*120 1.6-3.2 25 225
SWL33-120 120*150 1.6-3.5 20 255
SLW43-60 60*80 4300 1.6-2.8 25 22 165
SWL43-80 80*100 1.6-3.0 25 195
SWL43-100 100*120 1.6-3.0 25 225
SWL43-120 120*150 1.6-3.2 20 255
2.Gabion wire mesh machine consists of 4 parts

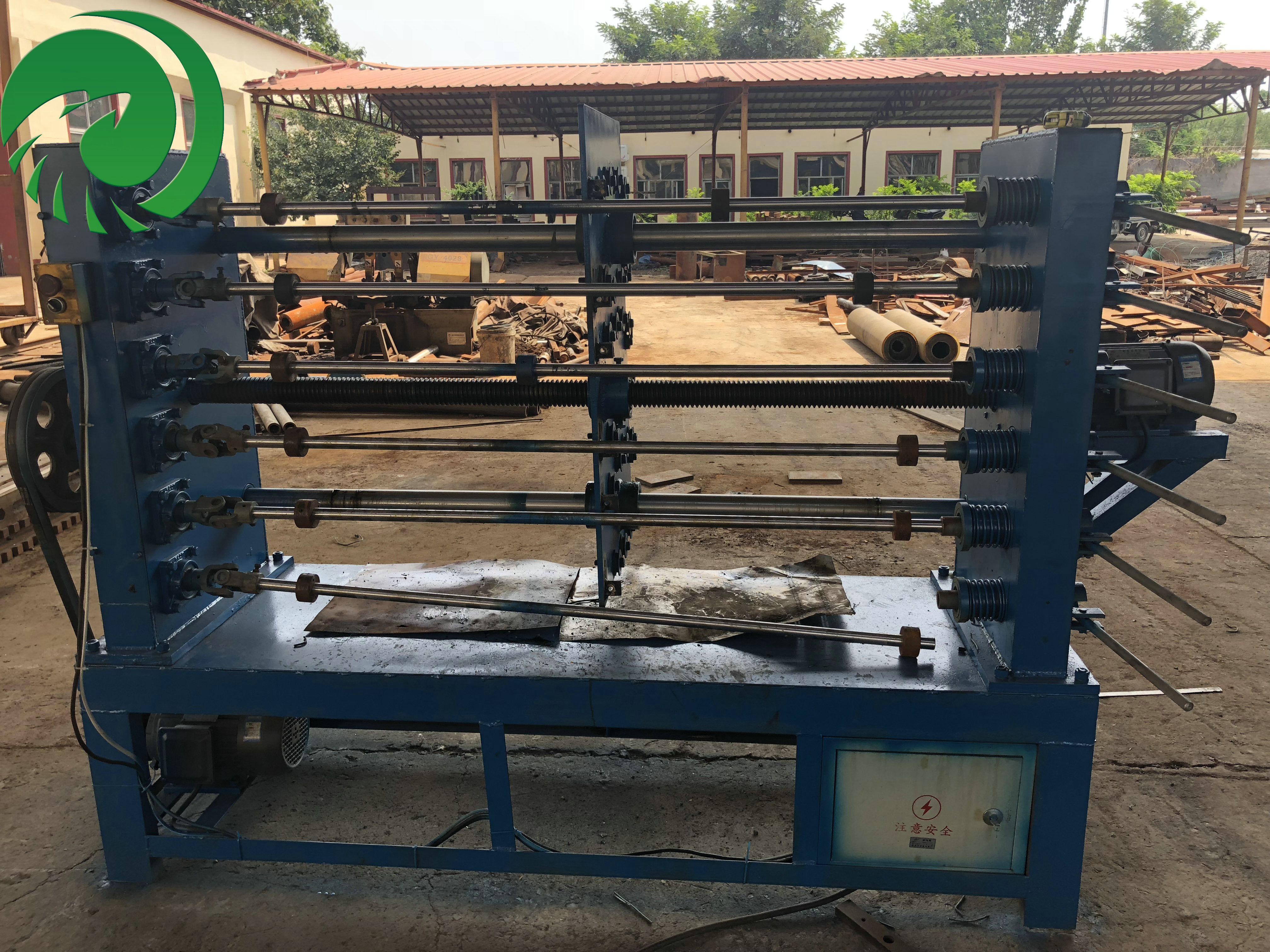

*wire spiral machine

*wire tension parts

*main weaving machine

*mesh rolling machine(control the roll diameter).



3.material request

Material can be Galvanized Steel Wire; PVC Coated Wire; Black Annealed Wire



4.advantage

  • Long life and high production(3000 m2/24h,if skilled worker)
  • Operated easily
  • One machine can make 2-3 meshes at same time
  • Electronics using China first class brand,like zhengtai,delixi
  • Cover on wheel for safety
  • Speed Adjustable by Inverter
  • Emergency Stop Button

5.packing

one set /1*40 OT



6.quotation request:

If you need a quotation,pls send us the mesh width



7.after-sale service

**Guarantee period 3 years,other factories usually only 1 year.

**exchange the accessory free if non-human factor damage

**Supply Installation and workers training service.

**24 hours on-line service

**Every 2 years,engineers will go abroad to customer factory to get the suggestion,continue advancing



8.application:

Precision Gabion Mesh Making Machine / Wire Mesh Weave Machine 4.3m 100*120mm 0
