80*100MM Mesh Opening Gabion Mesh Machine Low Noise High Working Effency

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE CERTIFICATION , ISO9001
Model Number DZ60X80 DZ80X100 DZ100X120 DZ66X88 DZ64X85
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Wire Pvc Coated Wire,G.I Wire Width Max Can Make 5.5m
Stop Automatic When Wire Use Out Product Name Gabion Mesh Equipment
Delivery Time 30 Days After Deposit Arrival Delivery Way Shippment Or Railway
High Light

gabion wire mesh machine

,

gabion box machine

Leave a Message
Product Description

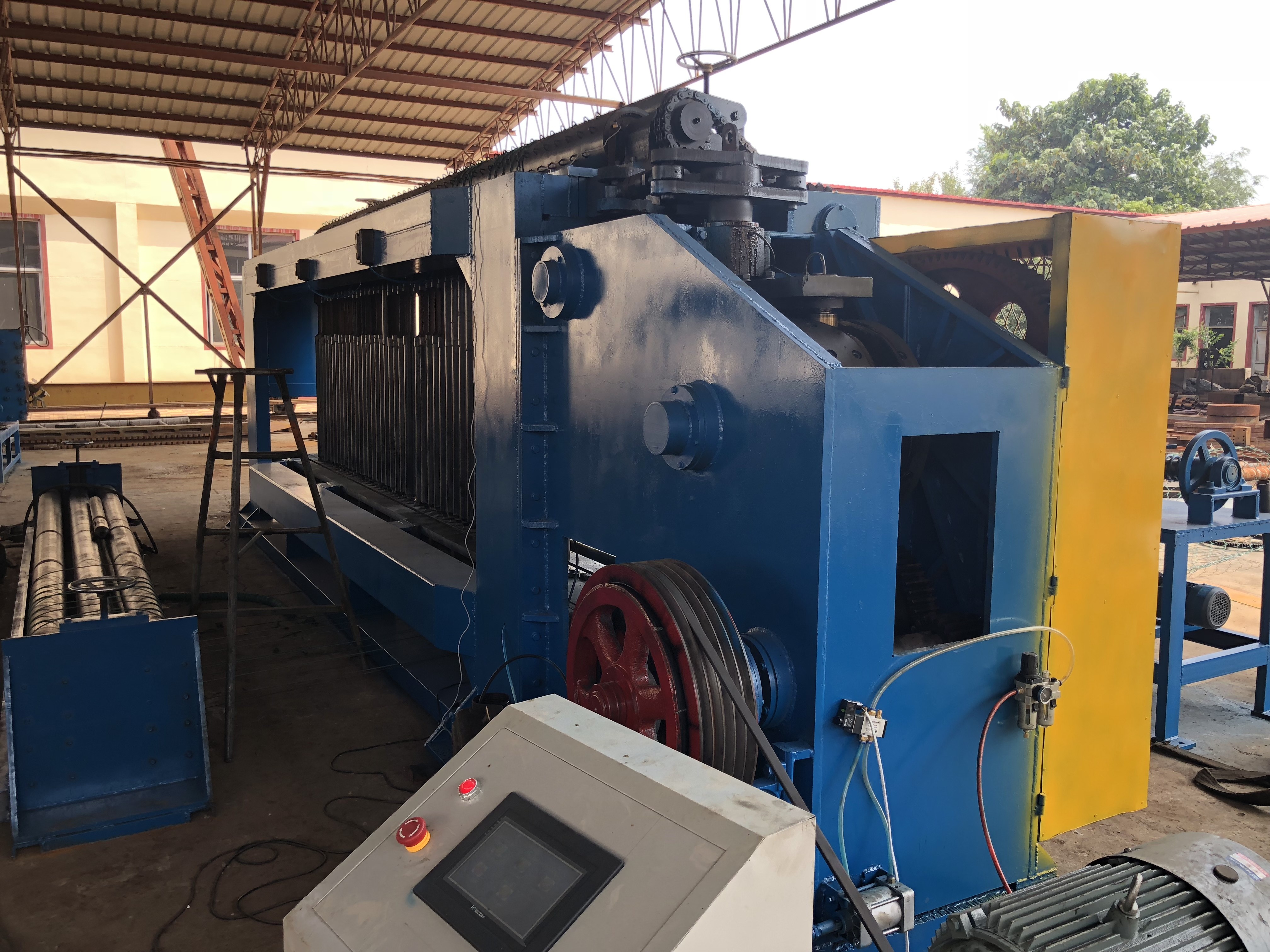

 Low Noise Gabion Mesh Weaving Machine



The gabion mesh machine is to produce gabion mesh.The features: fast speed, low vibration,single step operation, stable operation, low noise and high efficiency.Now Let us talk about the machine product-gabion box.Woven gabion can be made of various corrosive resistant materials and then woven into a series of hexagonal meshes panels. Then the panels are added the thicker selvedge wires for higher loading capacity and durability. Different part of woven gabion are attached together by the lacing wire.And gabion boxes are widely used in prevention of soil and water loss,soil solid structure,seashore defense project and so on.It have a big market in the world,inquiry now!



Equipment after sales service:

1. The warranty period of the whole machine is 2 years. The electrical parts of the equipment are maintained for life. The warranty does not include vulnerable parts (abrasive tools) and man-made damage.

2. If the customer equipment fails, our company will immediately give a clear reply when receiving the call from the user. If still cannot solve the problem, will go to the customer company for maintenance.

3. After the warranty period, our company provides lifetime after-sales service support, and provides equipment accessories at the original price of accessories.



machine details



Model



Mesh Size(mm) Max. Width(mm) Wire diameter(mm) Twisting Number Main Drive Shaft Speed(r/min) Motor Capacity(KW) Theoretical Speed(m/h)
LNWL23-60-2 60*80 2300 1.6-3.0 3 25 11 165
LNWL23-80-2 80*100 1.6-3.0 195
LNWL23-100-2 100*120 1.6-3.5 225
LNWL23-120-2 120*150 1.6-3.2 20 255
LNWL33-60-2 60*80 3300 1.6-2.8 25 15 165
LNWL33-80-2 80*100 1.6-3.0 195
LNWL33-100-2 100*120 1.6-3.2 225
LNWL33-120-2 120*150 1.6-3.5 20 255
LNWL43-60-2 60*80 4300 1.6-2.8 25 22 165
LNWL43-80-2 80*100 1.6-3.0 195
LNWL43-100-2 100*120 1.6-3.0 225
LNWL43-120-2 120*150 1.6-3.2 20 255
LNWL43-60-3 60*80 4300 1.6-2.8 5 25 2 165
LNWL43-80-3 80*100 1.6-3.0 195
LNWL43-100-3 100*!20 1.6-3.0 225
LNWL43-120-3 120*150 1.6-3.2 20

255





machine advantage in new design



1. The double rack drive hexagonal wire netting machine is specificalized equipment for producing large diameter hexagonal mesh.

2. The equipment's framework is more reasonable, design is innovation, function is more perfect and safe using, the important is that weavng mesh is more easier than before.

3. The equipment is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.



We can manufacture gabion machine according to customer request.
