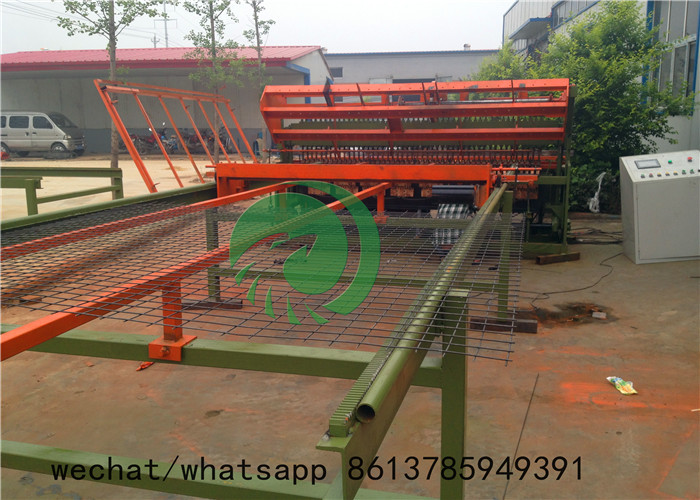

DZ-250B Fence Mesh Welding Machine PLC Automatic Wire Fence Making Machine

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1500 DZ1500 Z2000 DZ2500
Minimum Order Quantity 1set
Price variable
Packaging Details nude
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Fence Mesh Welding Machine Control PLC Automatic
Line Wire Feeding Pre-cut Cross Wire Feeding Pre-cut And Falling Auto
Material Feed Low Carbon Steel, Balck Wire, Galvanized Wire Delivery Time 30 Days After Deposit Or Shorter
Highlight

DZ-250B Fence Mesh Welding Machine

,

PLC Automatic Fence Mesh Welding Machine

,

6mm Wire Fence Making Machine

Leave a Message
Product Description

welding fence mesh machine, fence making machine





Model DZ-250B
Wire diameter 2.5-6mm
Longitude wire space 50-300mm
Cross wire space Min.25mm/12.7mm
Mesh width/height Max.2.5m
Mesh length Max.6m
Welding electrodes 48pcs
Welding speed 50-75 times/min
Welding transformers 125kva*6pcs
Need air compressor 0.3m^3
Need power supply Min.160kva
Overall Size 5.4*3.2*1.7m
Weight

4200kg



1. This kind of wire mesh welding machine is our latest developed reinforcing mesh welding machine.

2. The line wire and the weft wire of wire mesh welding machine are pre-straight and pre-cut.

3. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.4. The wire mesh welding machine welding power comes from the cylinders. It’s easy to control the welding pressure .5. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.6. The new wire mesh welding machine added the bear wire net and carry equipment that makes the working more convenience .

7. The welding part of wire mesh welding machine is used the springiness input wire trunking that makes the welding copper use for long time.8. This wire mesh welding machine adopts synchronous control technique. The cent-control and welding time are composed of PLC program system. The input front-panel is touch screen , the operate is more intelligent and reasonable.



DZ machine advantages:

1. This machine adopts synchronous control technique. The center-control and welding time are composed of digital and integrated electric circuit.

2. The operation is accurate, it has stable function, firm welded point, and without welded tracks.

3. Not only welding speed is fast, it is easy to learn and operate. Only need two workers.

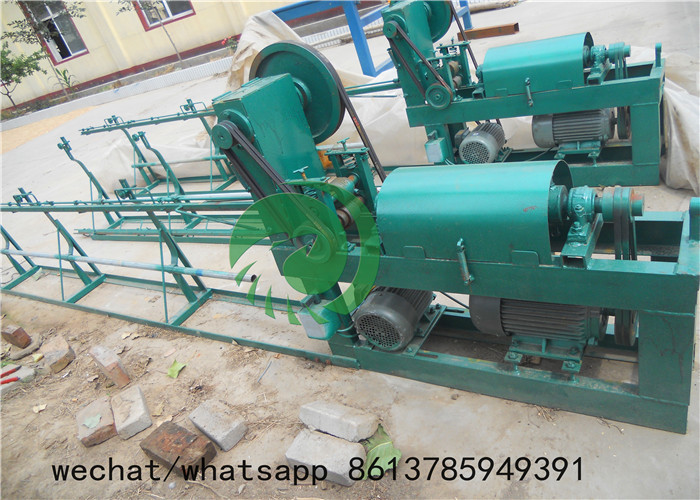

4. The longitude wires are fed from rolls and through precise wire straightening and positioning device.

5. Step motor controls fallen cross structure and drawing materials are automatic.

6. It’s accurate, the edge of mesh are regular, it’s unnecessary to slice the side.

7. Drawing mesh adopts the device with the elastic link and fixing the mesh.

8. It’s easy to regulate the mesh holes and mesh size is rather accurate, welding aperture could be adjustable randomly within range.

9. The finished mesh could be in rolls or in panels.
