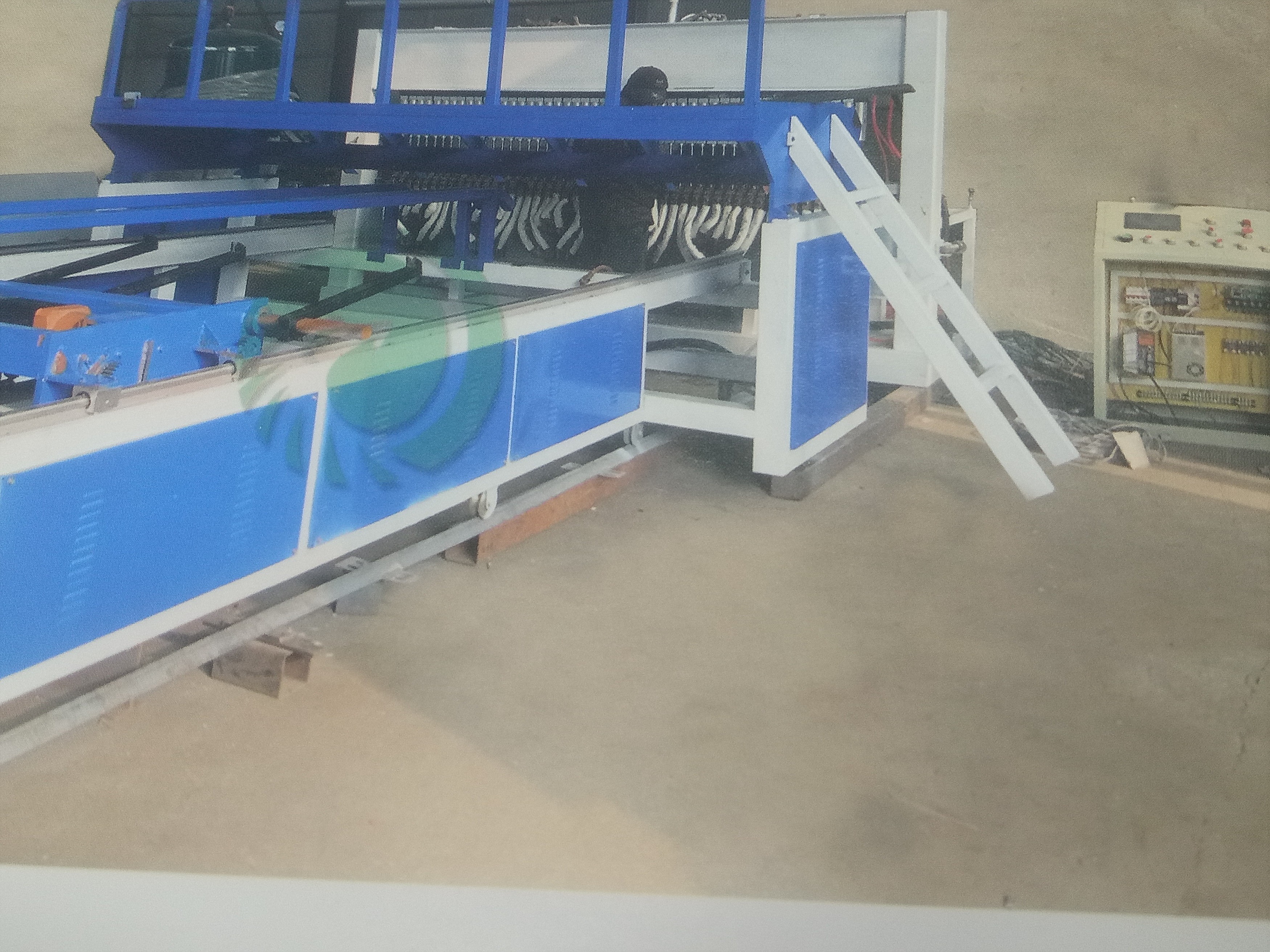

4.5T Automatic Wire Mesh Machine , 3mm 5mm Roll Mesh Welding Machine

Place of Origin CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ1200 DZ1000 DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1SET
Price variable
Packaging Details NUDE
Delivery Time 10-20 DAYS
Payment Terms L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability 20 SETS ONE MONTH

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
COLOUR BLUE , GREEN AND GRAY FEEDING AUTOMATIC BY STANDS
WELDONG FAST TYPE AUTOMATIC
WIRE DIAMETER 3-5mm ENGINEER AFTER SALES SERVICES DOOR TO DOOR
Highlight

3mm Roll Mesh Welding Machine

,

5mm Roll Mesh Welding Machine

,

4.5T Automatic Wire Mesh Machine

Leave a Message
Product Description

Diameter 3-5mm Automatic Wire Mesh Welding Machine 165KVA*6 Rated Power



Machine Description



3-5mm roll mesh welding machine is a automatic roll mesh welding production line.

Material can be galvanized wire,black annealed wire,screw-thread steel wire,stainless steel wire

Line wires are feed from pay off stands.

Cross wires are cut by straightening and cutting machine.

Mesh opening: line wire opening can't be changed.It is formed by welding electrodes(welding heads) Line wire

mesh opening can only be multiplies by times.

Line wire opening is 50mm at least.

Cross wire opening is set by plc,by computer.It can be 10mm,20mm,30mm,40mm,50mm,Any mesh opening you want.300mm At most

One 20" container can load the machine



Machine parameters



Wire diameter 3-5 mm
Mesh opening 50X50-300X300mm
Material Galvanized Wire; Black Annealed Wire;Screw-thread steel Wire;Stainless steel wire
Welding Width 2500mm
Welding Length 6-12m
Weaving speed 60 times/min
welding electrodes 48
Line wire from coils
Cross wire Pre-cut
Voltage 380V or as your requirement
Rated Power 165KVA*6
Machine weight 4.5t
DIMENSIONS About 6×3.2X1.8m
Machine life Over 10 years



Our company’s mesh welding machines have the following advantages:

  1. Main machine frame is welded with thick steel plates and section steel, which make the main structure more well-set and compact.
  2. The cross wire feeding (falling) device is originative with falling cross wire driven by step motor, which structure is compact and more reasonable.
  3. Mesh pulling device adopts the Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
  4. It can weld diverse mesh opening size and make the mesh with varied specifications, because all the relative adjustment parts are adjustable, which is very flexible and convenient for the user.
  5. The welding device takes new type of transformer with high efficiency. It has 24 different adjustable voltage grades, which enlarge the welding adjusting range and the weldable wire size range..
  6. In order to adapt to the power transformer capacity and reduce the current impact, the power electronic welding control adopt the way of welding in one time but electricity input in several separate control, that is (i.e.), the welding transformers work in separate when welding one row of cross wire.
  7. The welding power electronic control system adopts synchronous control technique. The welding time and welding in separate control are composed of digital integrated circuit, which is with high precision of control and stable function.

The warranty of machines:



1. The warranty of our factory’s machine is within 12 months since the delivery date of the goods.

During the warranty period, our company will repair or replace the damaged items for free. However, the buyer needs to cover the postage or the transportation fees. If the buyer need our technician to install or maintain the machine during the warranty period, the buyer need to cover the visa fees air ticket fees, the board and lodging expenses.



2. The items under the warranty scope

All switches, relay, contactor, transformer, SCR (thyristor), relay, fuse socket, circuit board, circuit, wiring terminal, and connection socket in the electric control box.. The consumable parts are excluded in the warranty scope.



3. The damage or loss caused by the following reasons is excluded in the warranty scope:

(1) Vibration, collision, crush, scratch, rain or moisture in the process of installation and storage.

(2) The working power supply capacity doesn’t fit, for example, too low or too high electric voltage

(3) Rough or bad working environment

(4) Operate not according to the technical conditions and terms
