Automatic Welded Wire Mesh Machine 4feet 5feet 6feet 7feet Mesh Width
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 30 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wire Mesh Fence Machine | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Fully Automatic | Wire Feed | From Coils |
| Finial Products | In Rolls | ||
| High Light | Automatic Welded Wire Mesh Machine,7feet Welded Wire Mesh Machine,5feet Automatic Wire Mesh Welding Machine |
||
Product Description

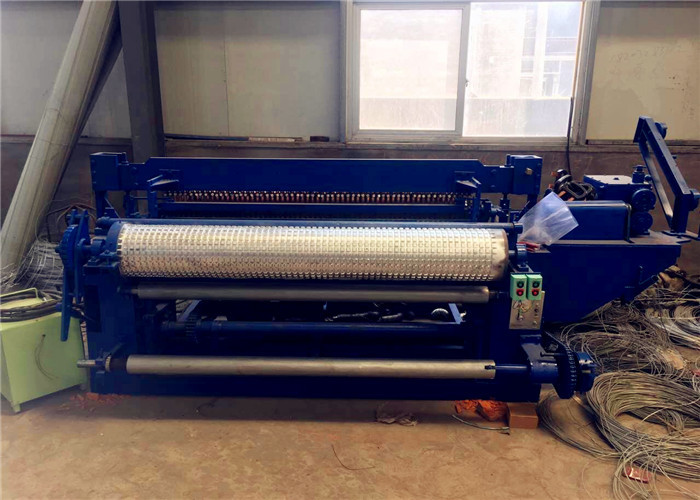

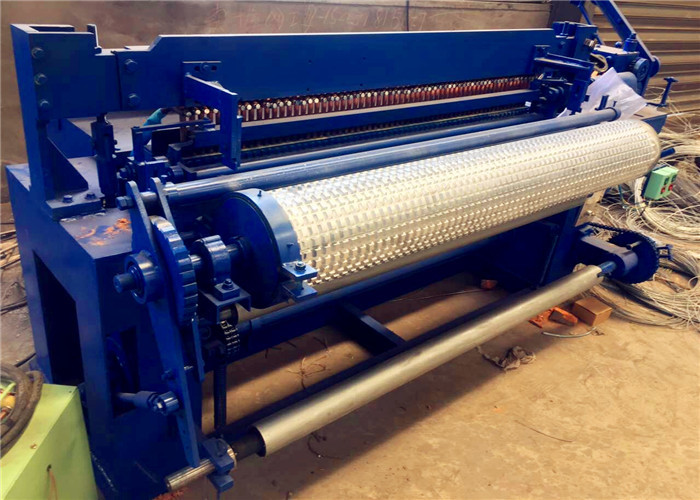

Automatic metal wire mesh roll welding machine China supplier
machine details:
| Model | DNW-1 | DNW-2 | DNW-3 |
| Wire diameter | 0.4-0.65mm | 0.65-1.2/1.8mm | 1.0-2.2mm/2.5mm |
| Aperture/pitch | 1/4”-1/2” | 1/2”-4” | 1”-4” |
| Mesh width | 3 feet, 4feet | 4 feet, 5 feet | 4 feet, 5 feet, 6 feet, 7feet |
| Motor | 2.2kw | 2.2kw | 2.2kw;4.0kw |
| Welding speed | Max.75 rows/min | Max.120 rows/min | Max.80 rows/min |
| Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
| Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
| Transformers | 50kva*3 | 60kva*4;60kva*5 | 60kva*4/5/6/7 |
1. Both of the longitude wire and cross wire are fed from wire coils automatically.
2. The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
3. The welding transformers have 8 degrees and can be adjusted for different wire diameters.
4. The mesh roll length can be set by counter switch on the control panel.
5. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.
6. Separate control technology, make welding transformers working separately to reduce needed capacity.
7. Different position of button and speed meter, not easily broken like before, easier to operate.
8. Square steel bottom instead of angle iron bottom. 1.5mm steel plate instead of 0.2-0.3mm steel plate.
