Punching Function Barbed Wire Manufacturing Machine 380V 75times/min

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ005 DZ009 DZ011 DZ021
Minimum Order Quantity 1set
Price variable
Packaging Details unde
Delivery Time 20-30 days
Payment Terms T/T, D/P, L/C
Supply Ability 30 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Printed Punching PLC Control
Colour As Required Type BTO-10 BTO-22 CBT-6
Speed 100times Strock/min After Sales Services Engineer Door To Door
Highlight

75times/min Barbed Wire Manufacturing Machine

,

380V Barbed Wire Manufacturing Machine

,

75times/min Razor Wire Machine

Leave a Message
Product Description

Single strips 9 strips razor barbed wire punching machine fully automatic

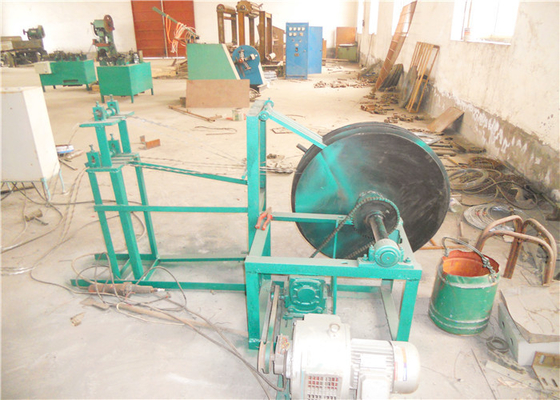

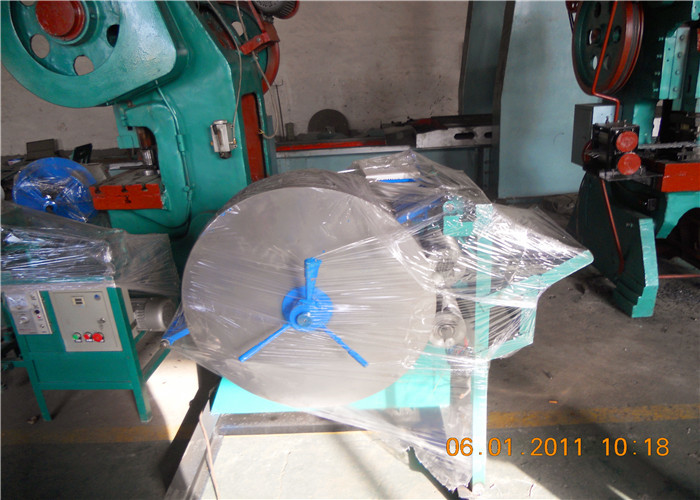

Razor wire machine with five strips is light-style, easy to operate, high efficiency, can save 20% raw material, it is best choice for clients. It is mainly consists of main machine which can produce the strip plate and coiling machine which can coil the wire into the strip plate

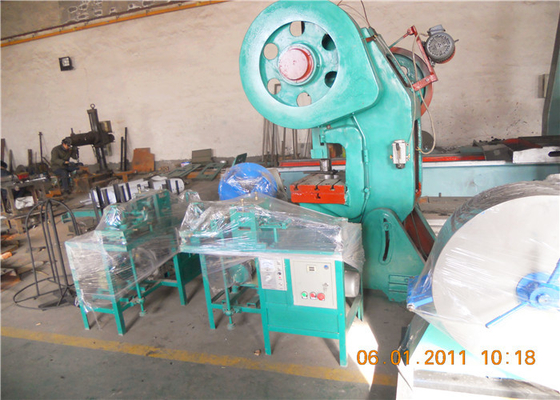

razor wire machine

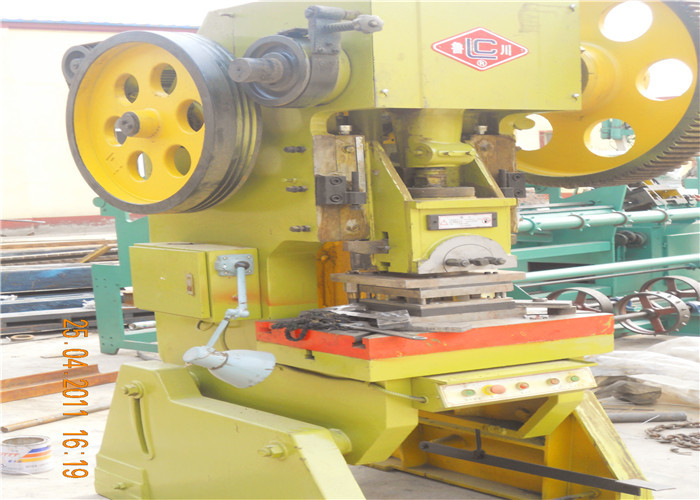

Punching machine



punching Plate thickness 0.3-0.6mm
punching Plate width 99-145mm
punching Production speed 60-75times/min
Motor power 2.2KW
Rated voltage 380V 50HZ
Weight 1.9T
Overall dimension 1325*990*2140mm



Mould type



Mould type Barb Length Barb width Barb spacing
R1 12±1mm 13±1mm 26±1mm
R2 12±1mm 15±1mm 26±1mm
R3 18±1mm 15±1mm 33±1mm
R4 22±1mm 15±1mm 34±1mm
R5 28±1mm 15±1mm 34±1mm
R6 30±1mm 18±1mm 34±1mm
R7 60±1mm 32±1mm 96±1mm
R8 65±1mm 21±1mm 100±1mm
