Double Twisted Razor Barbed Wire Machine 3KW for defense / highway

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ-CSA DZ-SCB DA-CSC
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability 20 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Twist Double Twisted Material Iron Wire, Galvanized Wire
Barbed Space 3",4",5" Or 4",5",6" Wire Diameter 1.6-2.8mm
Capcity 60-70kg/hour Engineer Available To Service Machinery Overseas
High Light

Double Twisted Razor Barbed Wire Machine

,

Razor Barbed Wire Machine 3KW

,

3KW Razor Blade Making Machine

Leave a Message
Product Description

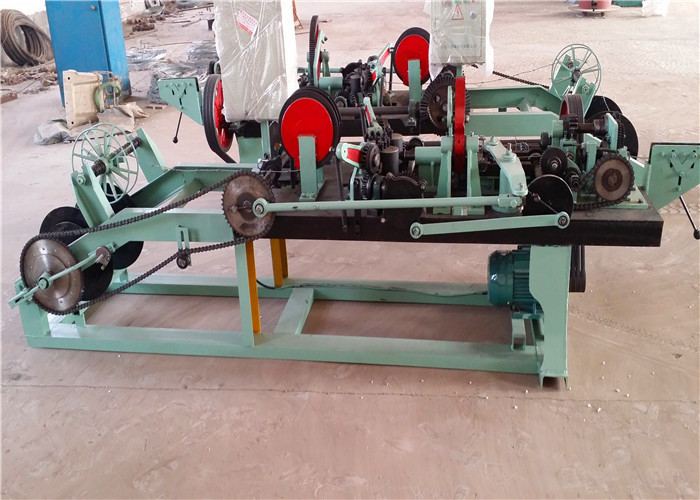

Fully automatic double twist barbed wire weaving machine stock CS-A type





Barbed wire machine



The machine is mainly suitable for producing all kinds of stocks thorn steel wire, the materials of products should accord with GB/T343-94 standard requirement< the common usage of hotdipped galvanized low carbon steel wire

The products are widely used in national defense, railway, highway, agriculture forming etc profession.

CS-A type barbed steel wire is connected by circle wire and received wire and has four silk plates. All parts work coordinately, move steady,

operate rumble and reliable. It is the only equipment of producing barbed steel wire at home at present.



The main parameterof CS-A barbed steel wire machine



project unit basic parameter
electric motor type Y100L2-4
electric motor KW 3
The circle of main rorating axis turns/min 402
pulling rope speed turns/min 470
the speed of pulling rope turns/min 134
output kg/hour 80-100
Continue run hours hours/day 20
Rotational speed of receiving the rope and disc turns/min 30-255
outside size ( L*W*H) mm 4000*2500*1200
weight T 1.2T



the specific of the barbed steel wire



project unit basic parameter
the pun cature distance inch 3-6
the twist number No 2/4
the diameter of sock wire mm 1.5-2.5
barbed of diameter mm 1.5-2.2
the weight per roll kg 25-50kg(according your need)


CS-A barbed steel wire machine (Anping shenghua factory)
