Galvanized Steel Wire Mesh Welding Machine , Wire Mesh Spot Welding Machine 2.0mm 2.2kw
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ1200 DZ1500 Z2000 DZ2500 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 20 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Welded Wire Mesh Machine | Material | Steel Welding |
|---|---|---|---|
| Control | PLC Fully Automatic | Wire Feed | From Coils |
| Finial Products | In Rolls | Engineer | Available To Service Machinery Overseas |
| High Light | 2.2kw Steel Wire Mesh Welding Machine,2.0mm Steel Wire Mesh Welding Machine,2.0mm Wire Mesh Spot Welding Machine |
||
Product Description

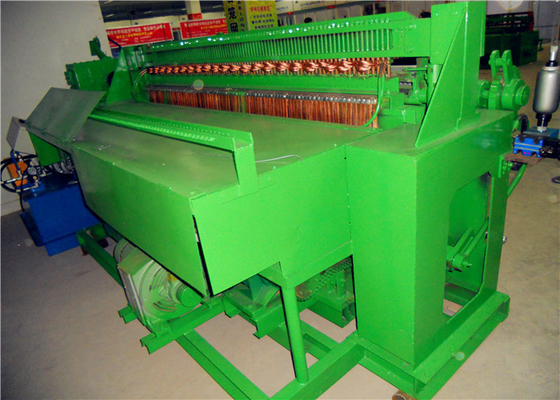

Galvanized steel wire mesh welding fence machine by welding spot
machine details:
The raw material is suitable for black wire, galvanized wire or stainless steel wire. and the middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.The mesh roll length can be set by counter switch on the control panel.The welding transformers have 8 degrees and can be adjusted for different wire diameters.The welding time and welding current can be adjusted on the control panel to guarantee welding solid. It has advantages such as reasonable design, low noise, stable working, easier operation and electro-magnetism speed adjustment.
| model | DZ-DHW-1 | DZ-DHW-2 | DZ-DHW-3 |
| wire diameter | 0.4-0.65mm | 0.65-1.8/0.8-2.0mm | 1.0-2.2mm/1.2-2.5mm |
| pitch/opening | 1/4'' 1/2'' | 1/2'' 1'' 2'' 3'' 4'' | 1'' 2'' 3'' 4'' |
| width of mesh | 1200mm 1500mm 2000mm | 1200mm 1500mm 2000mm | 1200mm 1500mm 2000mm |
| motor | 2.2kw | 2.2kw 4.0kw | 2.2kw 4.0kw |
| speed | max 70-80 raws/min | max 120-180 raws/min | max 120-180 raws/min |
| transformer | 50kvax3 | 60kvax4 60kvax5 60kvax7 | 70kvax4 60kvax5 60kvax7 |
| weight | 1.5tons | 2tons 2.2tons | 2.2tons, 2.5tons 3.5tons |
