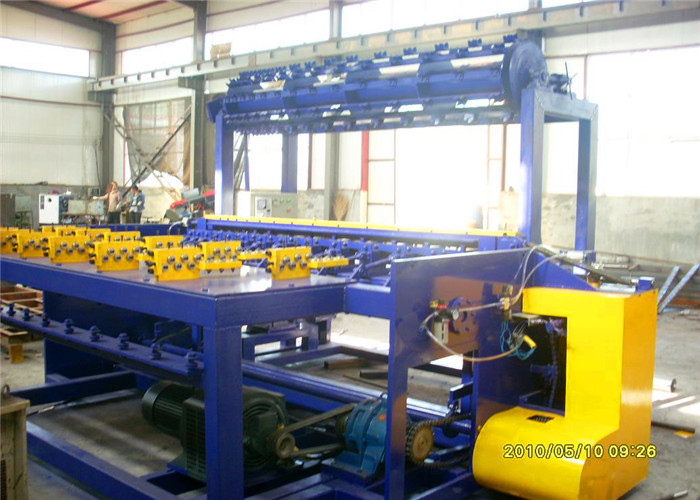

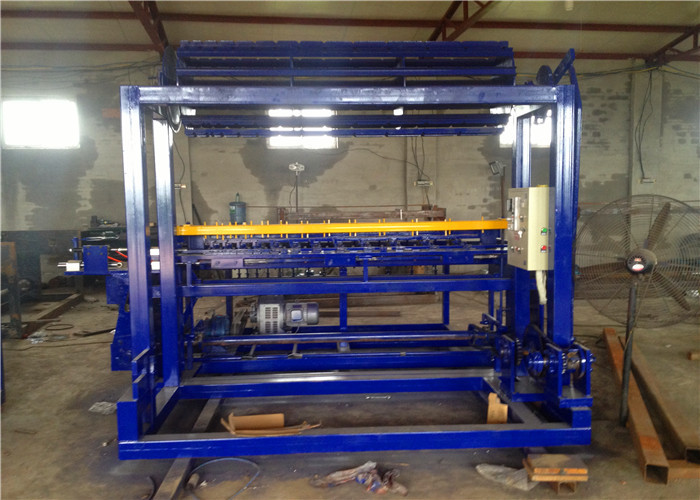

4KW Motor 400m/h Grassland Fence Machine , Automatic Mesh Welding Machine
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Minimum Order Quantity | 1 SET |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 work days |
| Payment Terms | L/C, T/T, D/P |
| Supply Ability | 6-8 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wire Diameter | 1.9-2.5mm | Side Wire Diameter | 2-3mm |
|---|---|---|---|
| Main Line Wire Space | 75mm | Motor | 4kw |
| Twine Diameter | 1.9-2.5mm | Voltage | 3 Phase,380v,50Hz Or According To Client's Voltage |
| Weight | 3.5T | Weft Number | 10 |
| Highlight | 4KW Grassland Fence Machine,400m/h Grassland Fence Machine,400m/h Automatic Mesh Welding Machine |
||
Product Description

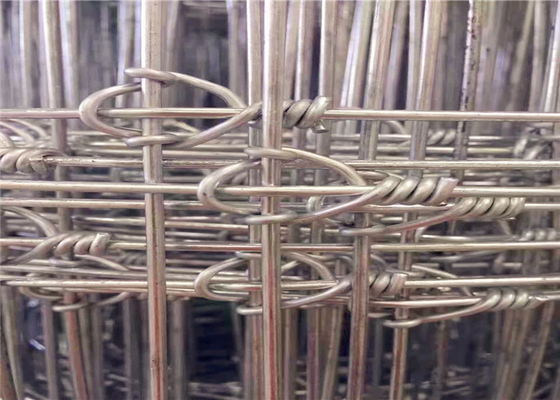

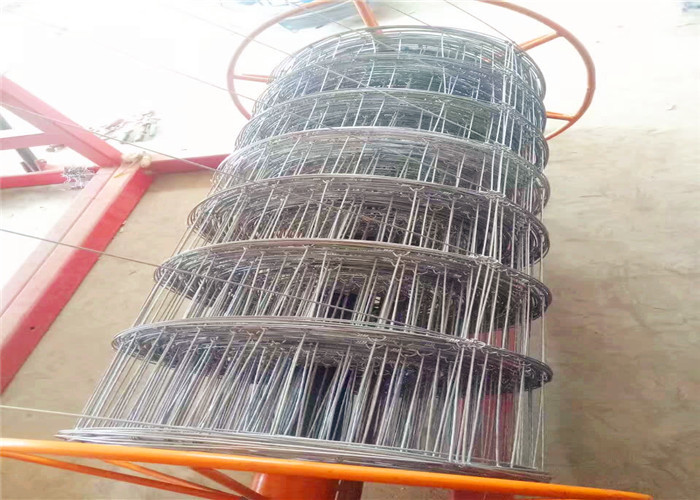

Grassland fence machine is used to weave wraparound fence.
It can weave the diameter wire and weft wire together automatically.
We have spent a lot of time to develop it which has independent intellectual property rights, selfmade.
It uses sophisticated computer control, advanced production technology.
The machine controlled automatically by NC . All parts work coordinately and smoothly .
It is operated flexibly and inexpensive. Products are neat and beautiful, diverse specifications.
1. Capacity: 400m/h
2. Direct factory more than 10 years
3. Edge diameter: 2.0-3.5mm
4. ISO9001:2008, BV Certificate, SGS
I. The Technical parameters of fence machine
| Production specification | CY-A | CY-B | CY-C |
| Power | 5.5KW | 7.5KW | 7.5KW |
| Speed | ≤45knock/min | ≤45knock/min | ≤45knock/min |
| Wire diameter | 1.9mm-2.5mm | 1.9mm-2.5mm | 1.9mm-2.5mm |
| Top/bottom diameter | 2.0mm-3.5mm | 2.0mm-3.5mm | 2.0mm-3.5mm |
| Height | 1.4m | 1.5m | 2m |
| Voltage | 380V-3P-50HZ | 380V-3P-50HZ | 380V-3P-50HZ |
| Weight | 3.5T | 3.8T | 4.0T |
| Overall dimension | 2.8 x 3.2 x 2.4(m) | 3.3 x 3.2 x 2.4(m) | 3.7 x 3.2 x 2.4 (m) |
NOTE:Special type can be made according to client;s requirement.
The rated voltage can be made as your requirement.
Vertical spacing can be adjusted and horizontal spacing can not be adjusted
II. The details of fence machine
1.Install:The machine need not install the anchor bolt, only need to put on the ground of plant. it is easy to install. we will send the specification to you.
2.Adjust: All the debugging working will be done in factory manufacture by our engineers.
3.Production capacity: 400m/h
4.Width: 1.0-2.4m
5.The machine's power: 5.5kw, 7.5kw, 11kw.
6.Accessories: wire bobbin, reel, tool box, etc. the accessories free offer to you.
III. The Features of fence machine
The machine is a new model equipement designed by our factory, it has the advantage of easy operation, safe reliable, energy conservation. and the field fence product has the features of innovative structure, firmness,precision and reliable property.
| MOQ | 1Set |
| Capacity | 10 sets per month |
| Port | Tianjin, Qingdao, Shanghai, etc |
| Delivery Time | 7 days(stock goods), 20days after received the deposit |
| Packaging | Plastic films and wooden pallet, cabinet packed by wooden box |
Our Services
Pre-sales Service
1.Reply you enquiry in 24 hours working hours
2.Experienced staffs answer all your questions about the machine
3.Exclusive and unique solution can be provided to our customer by your well-trained and professional engineer.
After-sales Service
1.Maintenance period: one year
If the buyers need, we can send our technical staff to the buyers' place to debug the machine and providing the training in 30 days after the machines arrive at the destination port.
2.The debugging fees: free
Year Established: 2005
We have 2 senior engineers,10 senior technicians,more than 100 employees
1.> Our products: welded wire mesh machine, Chain link fence machine, field fence machine
2.> Our supply ability: we have the complete accessories, 10 sets per month.
3.> Our warehouse: We have many spot goods to ensure the needs of customers
4.> Our Main Market: Algeria, Thailand, Burma, South Africa, South Asia, Egypt, etc
