0.3mm 0.6mm Razor Blade Wire Making Machine 3 Year Warranty

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ005 DZ009 DZ011 DZ021
Minimum Order Quantity 1 set
Price variable
Packaging Details as request
Delivery Time 20-30 days
Payment Terms L/C, T/T, D/P
Supply Ability 30 set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Gal Sheet, Iron Sheet , Ss Sheet Punching PLC Control
Colour Blue Or Request Warranty 3 Year
Rated Voltage 380V Material Thickness 0.3-0.6mm
After-sales Overseas Service Provided Output 1-2 Tons Per Day
High Light

0.3mm Razor Blade Wire Making Machine

,

0.6mm Razor Blade Wire Making Machine

,

Razor Blade Barbed Wire Making Machine

Leave a Message
Product Description

Concertina Razor Tape Wire Machine / Razor Wire Machine / Razor Blade Wire Machine



Product Description



There are two main steps in the process of the razor wire machine , The first steps is that the decoiling machine conveys the steel strips to the punching machine , The puching machine punches the steel plate become the blade , Then take up the blade wire through the colllection wire machine into the most important step, through the coiling machine the inner wire will be placed on the blade , So that the razor wire mesh production is completed . The razor wire machine with 5 strips include the decoiling machine , punching machine , collection wire machine and coiling machine .



Production Parameters

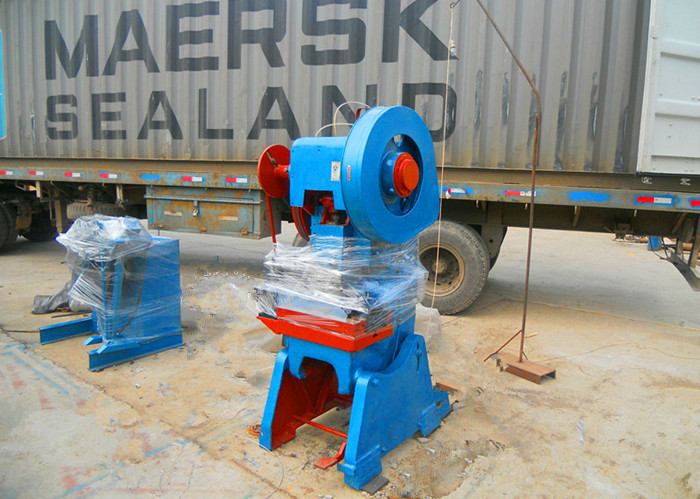

Punching machine



Punching plate thickness 0.3-0.6mm
Punching plate width 90mm
Punching production speed 60-75times/min
Motor Power 2.2kw
Rated Voltage 380V50HZ
Weight 1.9T
Overall dimension 1325*990*2140mm



Coiling machine



Voltage 380V50HZ, or client’s required voltage
Power 1.5kw
Producing speed 80Kg/h
Wire diameter 2.5mm
Weight 300Kg
Dimension 1100mm×750mm×1200mm



Our Advantages



1. We have own factory , and there is a special assembly workshop , each line is strictly controlled Welcome Customers visit our factory anytime .

2. We have professional engineers , Who are mainly responsible for overseas debugging and installation of machines and teaching customers to operate machine .

3. Our component are complete , we can ensure that cusromers receive the machne as long as there are raw materials can be produced , you don't need to buy other componets to install machine . damage patrs we will bring more to you and these are free .

4. After placing the order , We will send you pictures and video to keep you informed about the progress of production .
