Construction Reinforcing Mesh Welding Machine 65times/min 8.5T

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Automatic
Line Wire Feeding Pre-cut Cross Wire Feeding Pre-cut
Engineer Door To Door After Sales Services Aviable Services One Year After Shippment
Highlight

65times/min Reinforcing Mesh Welding Machine

,

8.5T Reinforcing Mesh Welding Machine

,

8.5T Construction Mesh Welding Machine

Leave a Message
Product Description

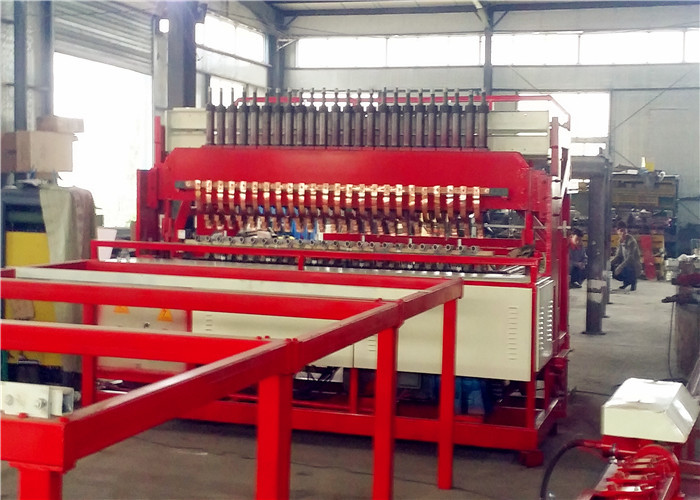

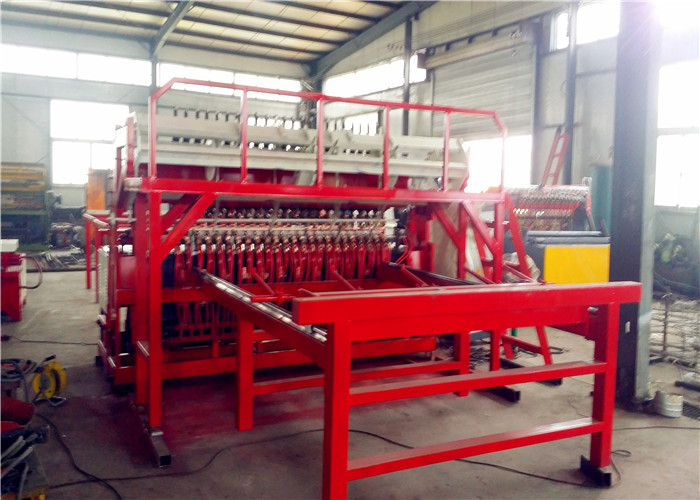

Automatic Reinforcing Mesh Welding Machine Wire Diameter 5 - 12 Mm



Machine Details



Model DZ2500C DZ2500D
Wire diameter 3-8mm 5-12mm
Welding width Max.2500mm Max.2500mm
Longitude wire space 100-300mm 100-300mm
Cross wire space Min.50mm Min.50mm
Mesh length Max.12000mm Max.12000mm
Wire feeding way Pre-straightened & pre-cut Pre-straightened & pre-cut
Welding speed 50-75times/min 40-65times/min
Welding electrodes Max.24pcs Max.24pcs
Welding transformers 150kva*6pcs 150kva*12pcs
Machine size 8.4*3.4*1.6m 8.4*5.5*2.1m
Weight 5.2T 8.5T



our machines have a lot advantages as following:



1. Panasonic, Schneider, ABB, SMC, Igus electric components.
2. Touch screen interface.
3. Pre-straightened & pre-cut wires.
4. PLC control of cross wire space adjustment and welding current adjustment.
5. Panasonic servo motor for mesh pulling.
6. Pure welding electrodes, 30*30*30mm (3-8mm), 30*30*50mm (5-12mm).
7. Cooling system: cast water-cooling transformer and lower welding electrode base.
8. Brake motor & reducer connect the principal axis directly.
9. Wire pre-load system.



our services:



One year warranty for the whole system.



• We can send our engineers/technicians for installation of entire production line . Should make sure the safety of our engineers.



• After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.



• We can provide internship service and help you train the operator and mechanic.



• Free production technology and process configuration.



• We can help you to design the product line , workshop and provide turn-key project.





the after sales services:

  1. transportation

If you have special requirements about the package of the machine, please specify it when placing the order.

In the process of the transportation, please pay attention to the following items:

  1. Prevent the machine from strong bumping or dropping. Otherwise, some parts on the machine may be damaged, especially the precise instrument, meter, electric control device or other precise mechanical parts.
  2. Please keep the machine waterproof, rain-resistant, antidamp
  3. The machine should be placed in even and stable and fixed in the container well in case of the movement or misplacement.
  1. STORAGE

This product shouldn’t be put in the open air and should be put in the room that is dry and free of blast and erosive gas, and no strong concussion. The reserve period shouldn’t exceed half a year.
