50times/min Reinforcing Mesh Welding Machine 300mm ISO9001 Approved

Place of Origin HEBEI, CHINA
Brand Name DIAOZHUO
Certification CE ISO9001
Model Number DZ2000 DZ2500 DZ3000
Minimum Order Quantity 1set
Price variable
Packaging Details woodencase and plastic bags
Delivery Time 20-30 days
Payment Terms L/C, D/P, T/T
Supply Ability 10 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Welding Control PLC Automatic
Line Wire Feeding Pre-cut Cross Wire Feeding Pre-cut
Welding Speed 50 Times Per Min After Sales Services Engineer Door To Door
Highlight

50times/min Reinforcing Mesh Welding Machine

,

300mm Reinforcing Mesh Welding Machine

,

300mm Wire Mesh Fence Machine

Leave a Message
Product Description

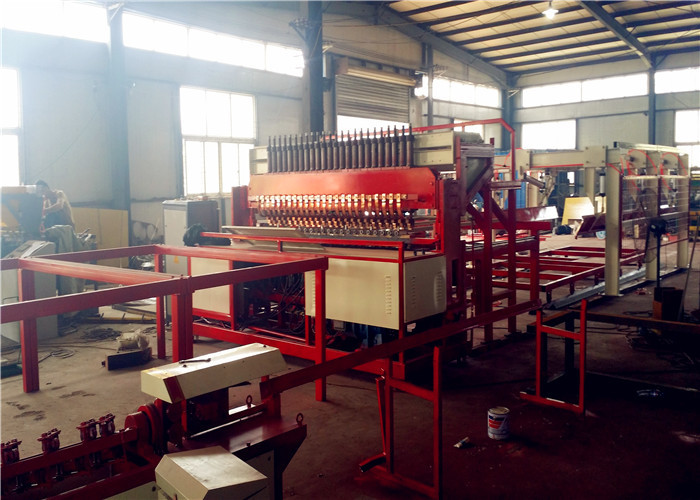

pre-cut 2500mm plc reinforced mesh welding machine line



machine details:

Model DZ2500C DZ2500D
Wire diameter 3-8mm 5-12mm
Welding width Max.2500mm Max.2500mm
Longitude wire space 100-300mm 100-300mm
Cross wire space Min.50mm Min.50mm
Mesh length Max.12000mm Max.12000mm
Wire feeding way Pre-straightened & pre-cut Pre-straightened & pre-cut
Welding speed 50-75 times/min 40-65times/min
Welding electrodes Max.24pcs Max.24pcs
Welding transformers 150kva*6pcs 150kva*12pcs
Machine size 8.4*3.4*1.6m 8.4*5.5*2.1m
Weight 5.2T

8.5T



2500 series mesh welding machine is a kind of automatic welding equipment developed by our company based on absorbing the advanced electromechanical control resistance welding technology from home and abroad, multinomial technology on it has gained the national patents.

Our company’s mesh welding machines have the following advantages:

  1. Main machine frame is welded with thick steel plates and section steel, which make the main structure more well-set and compact.
  2. The cross wire feeding (falling) device is originative with falling cross wire driven by step motor, which structure is compact and more reasonable.

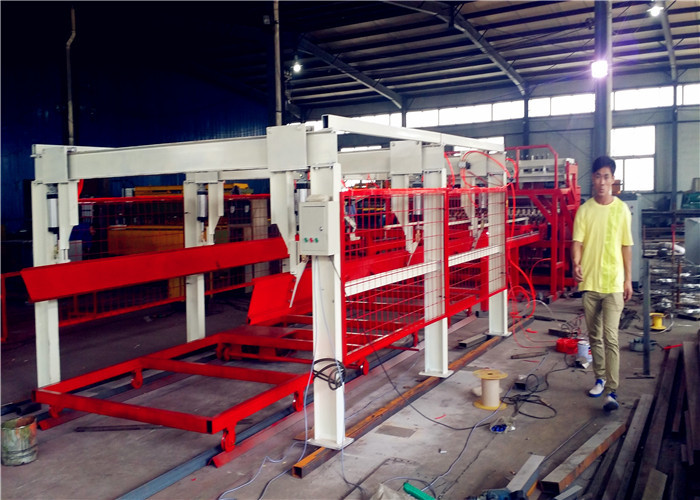

  3. Mesh pulling device adopts the Panasonic ( Japan ) servo motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.
  4. It can weld diverse mesh opening size and make the mesh with varied specifications, because all the relative adjustment parts are adjustable, which is very flexible and convenient for the user.
  5. The welding device takes new type of transformer with high efficiency. It has 24 different adjustable voltage grades, which enlarge the welding adjusting range and the weldable wire size range..
  6. In order to adapt to the power transformer capacity and reduce the current impact, the power electronic welding control adopt the way of welding in one time but electricity input in several separate control, that is (i.e.), the welding transformers work in separate when welding one row of cross wire.
  7. The welding power electronic control system adopts synchronous control technique. The welding time and welding in separate control are composed of digital integrated circuit, which is with high precision of control and stable function.



The warranty of machines:

1. The warranty of our factory’s machine is within 12 months since the delivery date of the goods.

During the warranty period, our company will repair or replace the damaged items for free. However, the buyer needs to cover the postage or the transportation fees. If the buyer need our technician to install or maintain the machine during the warranty period, the buyer need to cover the visa fees air ticket fees, the board and lodging expenses.

2. The items under the warranty scope

All switches, relay, contactor, transformer, SCR (thyristor), relay, fuse socket, circuit board, circuit, wiring terminal, and connection socket in the electric control box.. The consumable parts are excluded in the warranty scope.

3. The damage or loss caused by the following reasons is excluded in the warranty scope:

(1) Vibration, collision, crush, scratch, rain or moisture in the process of installation and storage.

(2) The working power supply capacity doesn’t fit, for example, too low or too high electric voltage

(3) Rough or bad working environment

(4) Operate not according to the technical conditions and terms

4. Our company provides charged maintaining service and the spare for the customer at any time even beyond the warranty period.

5. The instruction, photo and drawings in the manual have no legal effect. Therefore, any one is not allowed to put forward .requests to our company based on the manual.

6. Show the name, model number, specification of the product when placing the order.
