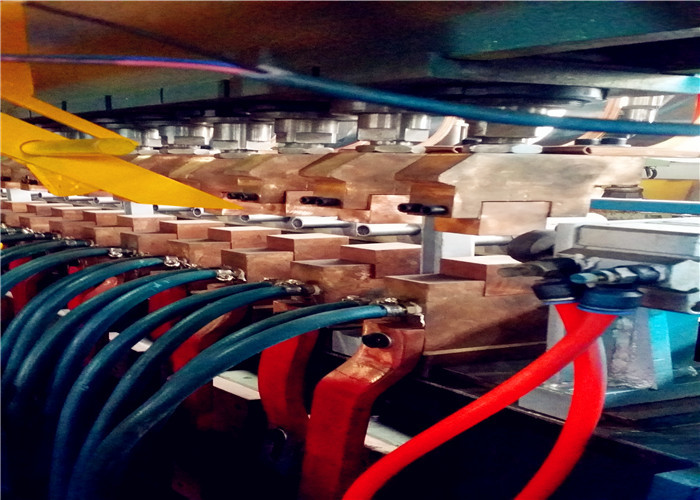

Concrete Reinforcing Mesh Welding Machine 40times/min 8.5T
| Place of Origin | HEBEI, CHINA |
|---|---|
| Brand Name | DIAOZHUO |
| Certification | CE ISO9001 |
| Model Number | DZ2000 DZ2500 DZ3000 |
| Minimum Order Quantity | 1set |
| Price | variable |
| Packaging Details | woodencase and plastic bags |
| Delivery Time | 20-30 days |
| Payment Terms | L/C, D/P, T/T |
| Supply Ability | 10 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel Welding | Control | PLC Automatic |
|---|---|---|---|
| Line Wire Feeding | Pre-cut | Cross Wire Feeding | Pre-cut |
| High Light | 40times/Min Reinforcing Mesh Welding Machine,8.5T Reinforcing Mesh Welding Machine,40times/Min Wire Mesh Fence Machine |
||
Product Description
Wire diameter 5 - 12 mm thread concrete reinforcing wire mesh welding machine
machine details
| Model | DZ2500C | DZ2500D |
| Wire diameter | 3-8mm | 5-12mm |
| Welding width | Max.2500mm | Max.2500mm |
| Longitude wire space | 100-300mm | 100-300mm |
| Cross wire space | Min.50mm | Min.50mm |
| Mesh length | Max.12000mm | Max.12000mm |
| Wire feeding way | Pre-straightened & pre-cut | Pre-straightened & pre-cut |
| Welding speed | 50-75 times/min | 40-65times/min |
| Welding electrodes | Max.24pcs | Max.24pcs |
| Welding transformers | 150kva*6pcs | 150kva*12pcs |
| Machine size | 8.4*3.4*1.6m | 8.4*5.5*2.1m |
| Weight | 5.2T |
8.5T |
machine advantage
Panasonic, Schneider, ABB, SMC, Igus electric components.
Touch screen interface.
Pre-straightened & pre-cut wires.
PLC control of cross wire space adjustment and welding current adjustment.
Panasonic servo motor for mesh pulling.
Pure welding electrodes, 30*30*30mm (3-8mm), 30*30*50mm (5-12mm).
Cooling system: cast water-cooling transformer and lower welding electrode base.
Brake motor & reducer connect the principal axis directly.
Wire pre-load system.
